Modell- und Maßänderungen vorbehalten.

Unsere AGBs finden Sie auf

www.camozzi.de

.

2

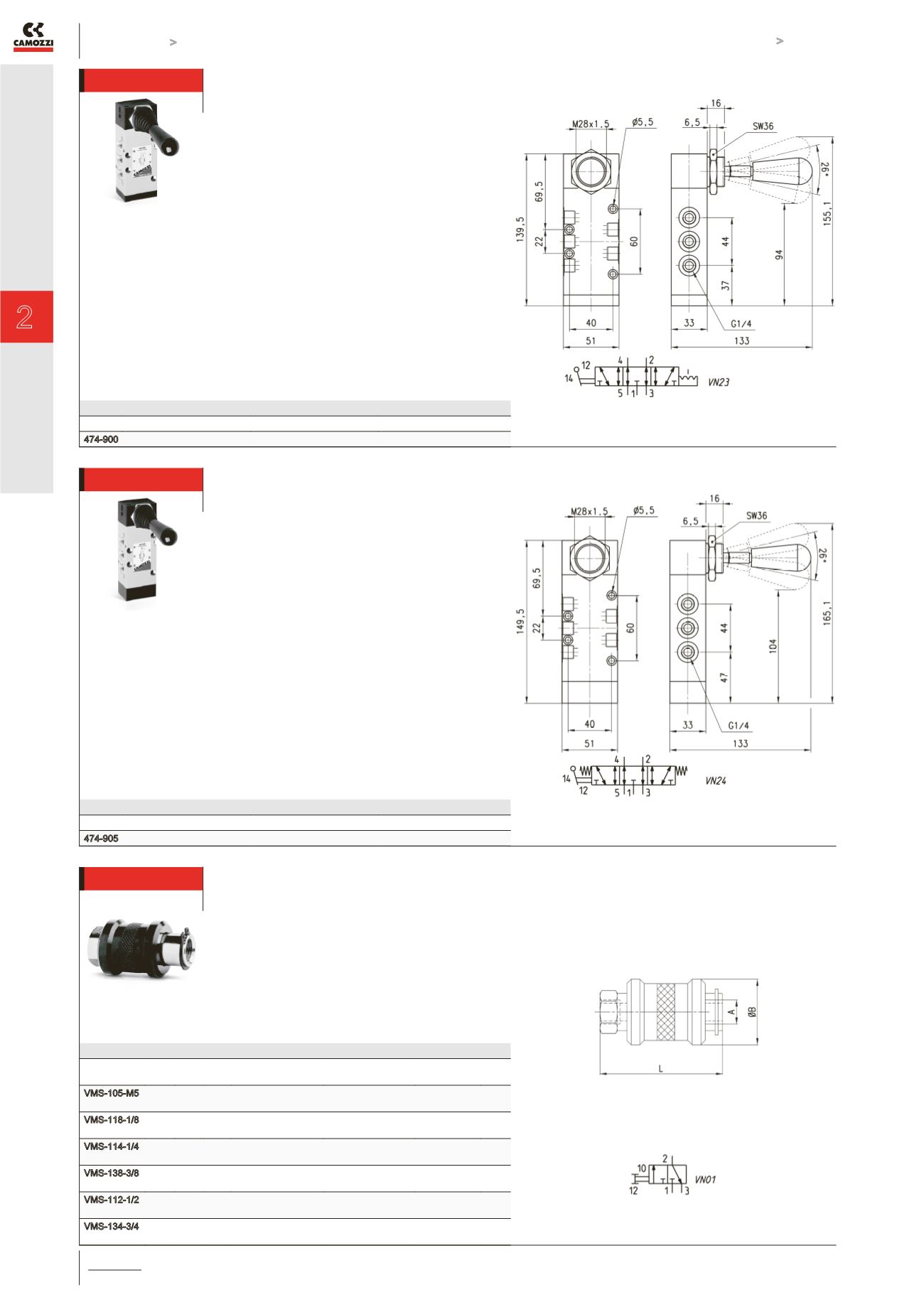

Manuell betätigte Wegeventile Serie 1,3,4 und VMS

ANSTEUERN >

KATALOG

>

Version 8.8

/4.30.09

2

ANSTEUERN

Handhebelventil Mod. 474-900

5/3-Wege, rastend, Mitte geöffnet, G1/4

PRODUKTÜBERSICHT

Mod.

Betriebsdruck (bar)

Durchfluss (Nl/min)

Betätigungskraft (N)

474-900

-0.9 ÷ 10

1250

5

Handhebelventil Mod. 474-905

5/3-Wege, federzentrierte Mitte geöffnet, G1/4

PRODUKTÜBERSICHT

Mod.

Betriebsdruck (bar)

Durchfluss (Nl/min)

Betätigungskraft (N)

474-905

-0.9 ÷ 10

1250

10

Wegeventile Serie VMS

3/2-Wege, NC, bistabil, M5-G3/4

PRODUKTÜBERSICHT

Mod.

A ØB L Durchfluss bei 6 bar

ΔP 1 (Nl/min) 1-2

Durchfluss bei 6 bar

ΔP 1 (Nl/min) 2-3

Betriebsdruck

(bar)

VMS-105-M5 M5 15 33,5

140

145

0 ÷ 15 -10 ÷

80

VMS-118-1/8 G1/8 25 48

600

740

0 ÷ 15 -10 ÷

80

VMS-114-1/4 G1/4 30 58

1200

1780

0 ÷ 15 -10 ÷

80

VMS-138-3/8 G3/8 35 70

2100

1830

0 ÷ 15 -10 ÷

80

VMS-112-1/2 G1/2 40 80

3350

4030

0 ÷ 15 -10 ÷

80

VMS-134-3/4 G3/4 49,5 83

5350

5000

0 ÷ 15 -10 ÷

80
