Wartungseinheiten Serie MX

KATALOG

3

/1.50.10

3

>

Version 8.8

AUFBEREITEN >

AUFBEREITEN

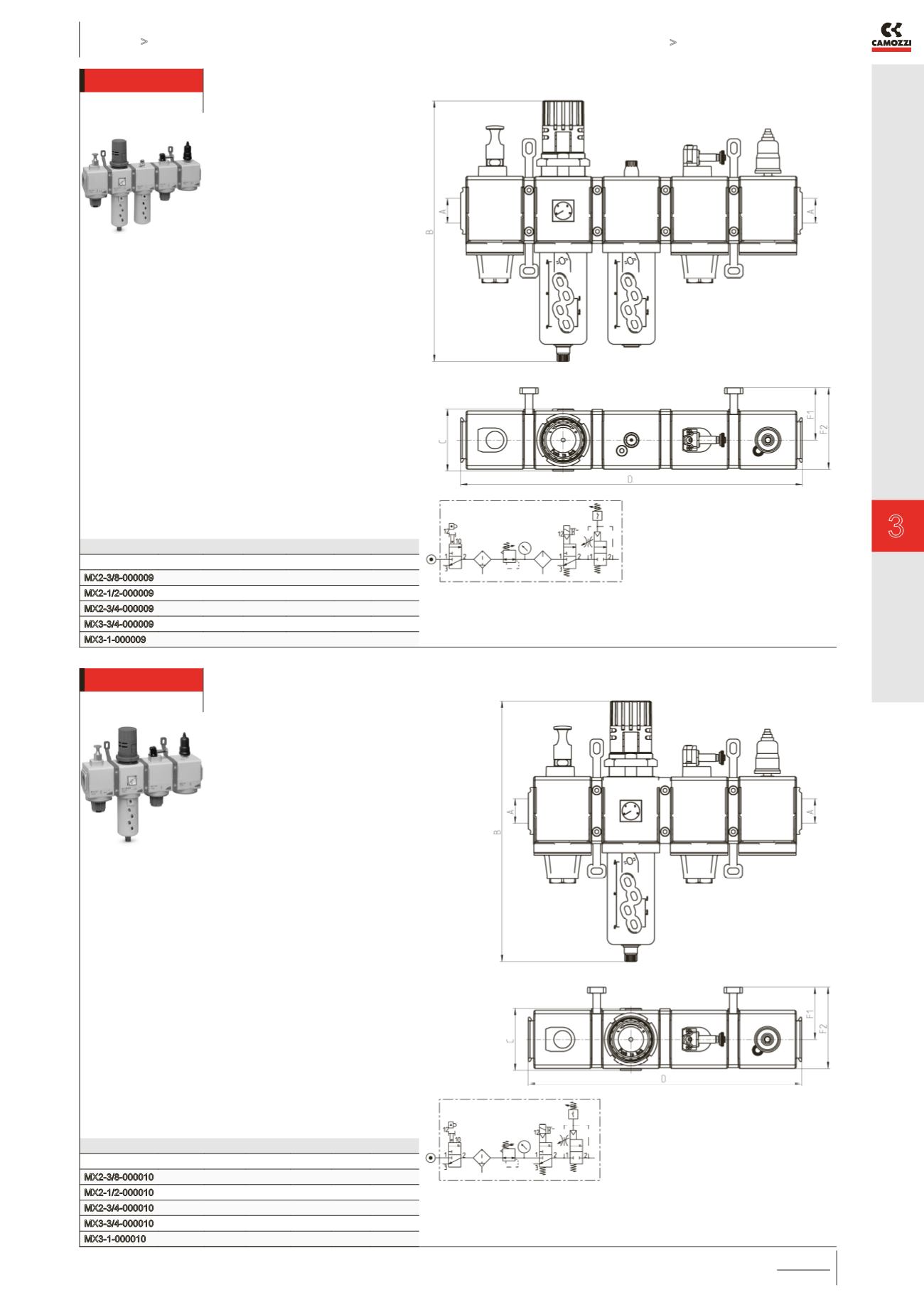

Wartungseinheit Mod. MX..-..-000009

Bestehend aus:

Absperrventil Mod. V01, manuell

Filterregler Mod. FR1004

Öler Mod. L00

Absperrventil Mod. V16,

Soft-Startventil Mod. AV

Druckschalter NC

PRODUKTÜBERSICHT

Mod.

A

B

C

D F1

F2

MX2-3/8-000009 G3/8 289 74,5

350

70 104,5

MX2-1/2-000009 G1/2 289 74,5

350

70 104,5

MX2-3/4-000009 G3/4 289 74,5

350

70 104,5

MX3-3/4-000009 G3/4 345

81

447,5 68

106

MX3-1-000009

G1

345

81

447,5 68

106

Wartungseinheit Mod. MX..-..- 000010

Bestehend aus:

Absperrventil Mod. V01, manuell

Filterregler Mod. FR1004

Absperrventil Mod. V16

Soft-Startventil Mod. AV

Druckschalter NO

PRODUKTÜBERSICHT

Mod.

A

B

C

D F1

F2

MX2-3/8-000010 G3/8 289

74,5

280

70

104,5

MX2-1/2-000010 G1/2 289

74,5

280

70

104,5

MX2-3/4-000010 G3/4 289

74,5

280

70

104,5

MX3-3/4-000010 G3/4 345

81

358

68

106

MX3-1-000010

G1

345

81

358

68

106
