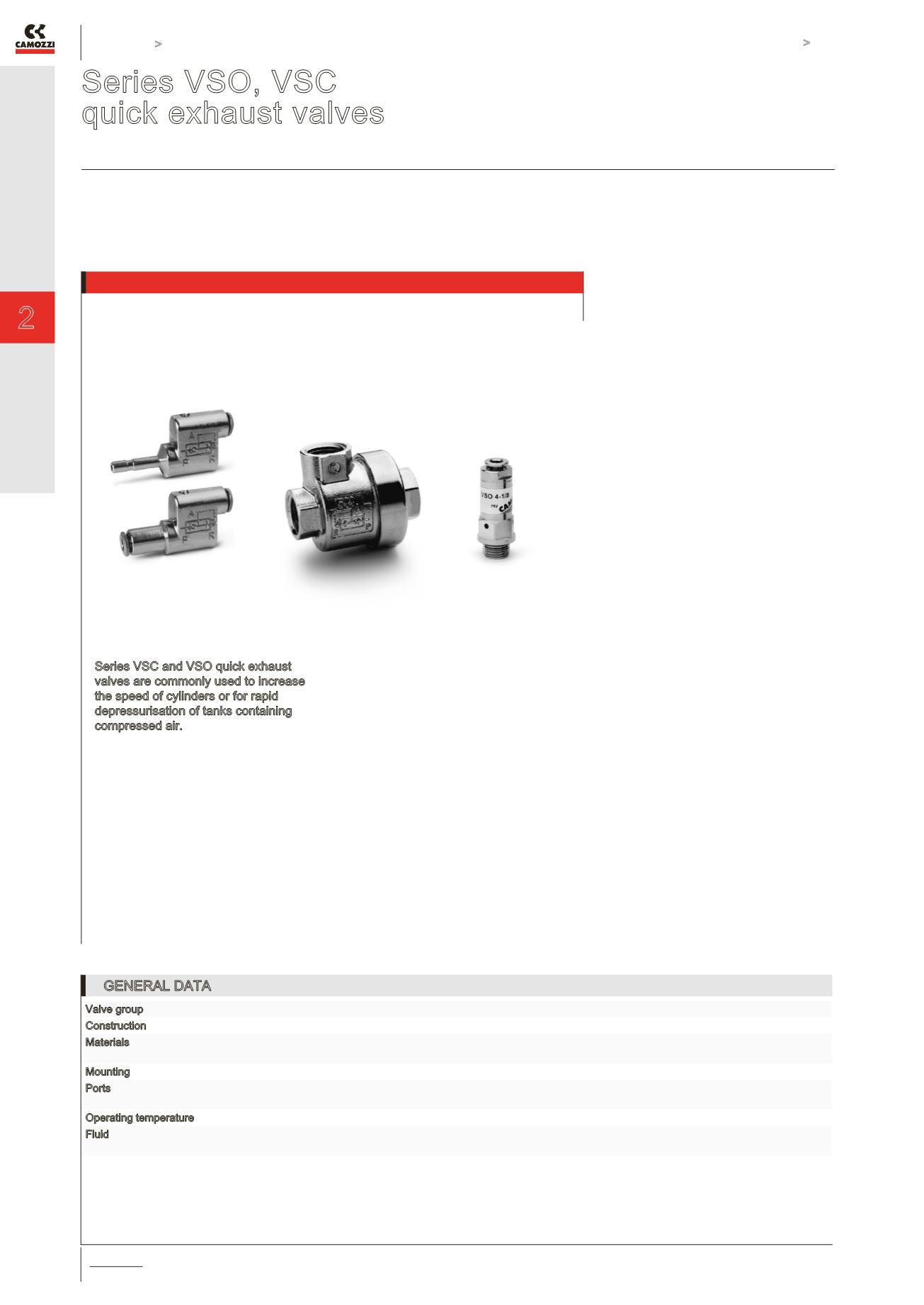

Series VSO, VSC quick exhaust valves
CONTROL >
C_FLUID CONTROL CATALOGUE
>
2018
CONTROL
Series VSO, VSC
quick exhaust valves
Series VSO ports: M5, G1/8, cartridge ø4
Series VSC ports: G1/8, G1/4, G1/2
Series VSC and VSO quick exhaust
valves are commonly used to increase
the speed of cylinders or for rapid
depressurisation of tanks containing
compressed air.
Mod. VSO 425-M5, VSO 426-04:
they are particularly suitable to be
mounted on solenoid valves and valves
incorporating a ø 4 cartridge.
Mod. VSO 4-1/8: it is particularly suitable
for direct mounting on the actuator
connection. The air coming in from the
jointed part (1) is used by the threaded
side (2), whilst the exhaust (3) passes
through the holes sideways to the valve
body.
Mod. VSC: they are particularly suitable
to be mounted directly on the cylinder
mouth through the use of a nipple. It is
recommended to mount a silencer on the
outlet.
»
»
Suitable to rapidly
discharge air contained
in tanks, systems or
cylinder chambers.
»
»
Threaded versions
and with fitting
GENERAL DATA
Valve group
automatic valves
Construction
poppet-type
Materials
Series VSO: brass body - NBR seals
Series VSC: brass body - Desmopan seal
Mounting
in any position
Ports
Series VSO: M5, G1/8, cartridge ø4
Serie VSC: G1/8, G1/4, G1/2
Operating temperature 0°C ÷ 80°C (with dry air -20°C)
Fluid
filtered air, without lubrication.
If lubricated air is used, it is recommended to use ISO VG32 oil. Once applied the lubrication should never be interrupted.
