SHORT FORM CATALOGUE > Release 8.8
3
TREATMENT
Products designed for industrial applications.
General terms and conditions for sale are available on

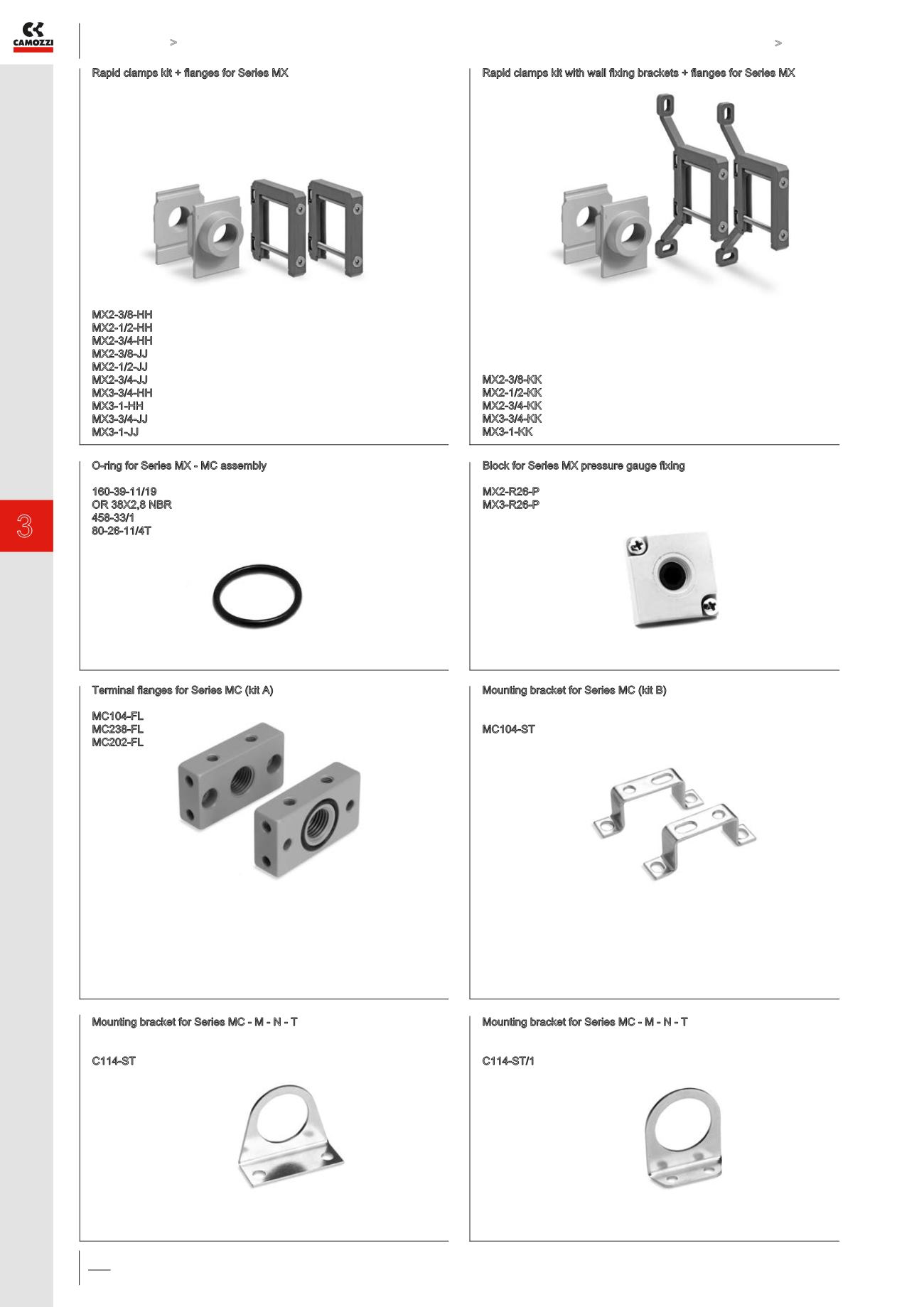

TREATMENT > Accessories for the air treatment
Rapid clamps kit + flanges for Series MX Rapid clamps kit with wall fixing brackets + flanges for Series MX
The kit is supplied with:
MX2-3/8-HH 1x MX2-3/8-FL + 2x MX2-X
MX2-1/2-HH 1x MX2-1/2-FL + 2x MX2-X
MX2-3/4-HH 1x MX2-3/4-FL + 2x MX2-X
MX2-3/8-JJ 1x MX2-3/8-FL + 2x MX2-Z
MX2-1/2-JJ 1x MX2-1/2-FL + 2x MX2-Z
MX2-3/4-JJ 1x MX2-3/4-FL + 2x MX2-Z
MX3-3/4-HH 1x MX3-3/4-FL + 2x MX3-X
MX3-1-HH 1x MX3-1-FL + 2x MX3-X
MX3-3/4-JJ 1x MX3-3/4-FL + 2x MX3-Z
MX3-1-JJ 1x MX3-1-FL + 2x MX3-Z
The kit is supplied with:
MX2-3/8-KK 1x MX2-3/8-FL + 2x MX2-Y
MX2-1/2-KK 1x MX2-1/2-FL + 2x MX2-Y
MX2-3/4-KK 1x MX2-3/4-FL + 2x MX2-Y
MX3-3/4-KK 1x MX3-3/4-FL + 2x MX3-Y
MX3-1-KK 1x MX3-1-FL + 2x MX3-Y
Terminal flanges for Series MC (kit A)
Mod.
MC104-FL
MC238-FL
MC202-FL
Mounting bracket for Series MC (kit B)
for terminals 1/4, 3/8, 1/2
Mod.
MC104-ST
The kit MC104-FL is supplied with:
1x left flange; 1x right flange; 4x screws M4x14; 2x O-Ring
2068
Each of the kits MC202-FL and MC238-FL is supplied with:
1x left flange; 1x right flange; 4x screws M5x14; 2x O-Ring
3100
Materials: painted aluminium flanges,
zinc-plated steel screws and NBR O-ring
The kit MC104-ST is supplied with:
- 2x terminal brackets
- 4x screws M5x10
Materials: zinc-plated steel brackets and screws
Mounting bracket for Series MC - M - N - T
regulators and filter-regulators (G1/4 - G1/8)
Mod.
C114-ST
Mounting bracket for Series MC - M - N - T
regulators and filter-regulators (G1/4 - G1/8)
Mod.
C114-ST/1
The kit is supplied with:
1x zinc-plated steel bracket
The kit is supplied with:
1 zinc-plated steel bracket
O-ring for Series MX - MC assembly
Mod.
160-39-11/19 (O-ring OR 3125) for Series MX2
OR 38X2,8 NBR (O-ring OR 38X2,8) for Series MX3
458-33/1 (O-ring OR 2068) for Mod. MC104
80-26-11/4T (O-ring OR 3100) for MC238, MC202 [spare part only]
Block for Series MX pressure gauge fixing
Mod.
MX2-R26-P
MX3-R26-P
The kit is supplied with:
1 block
1 grain
2 screws
1 seal
