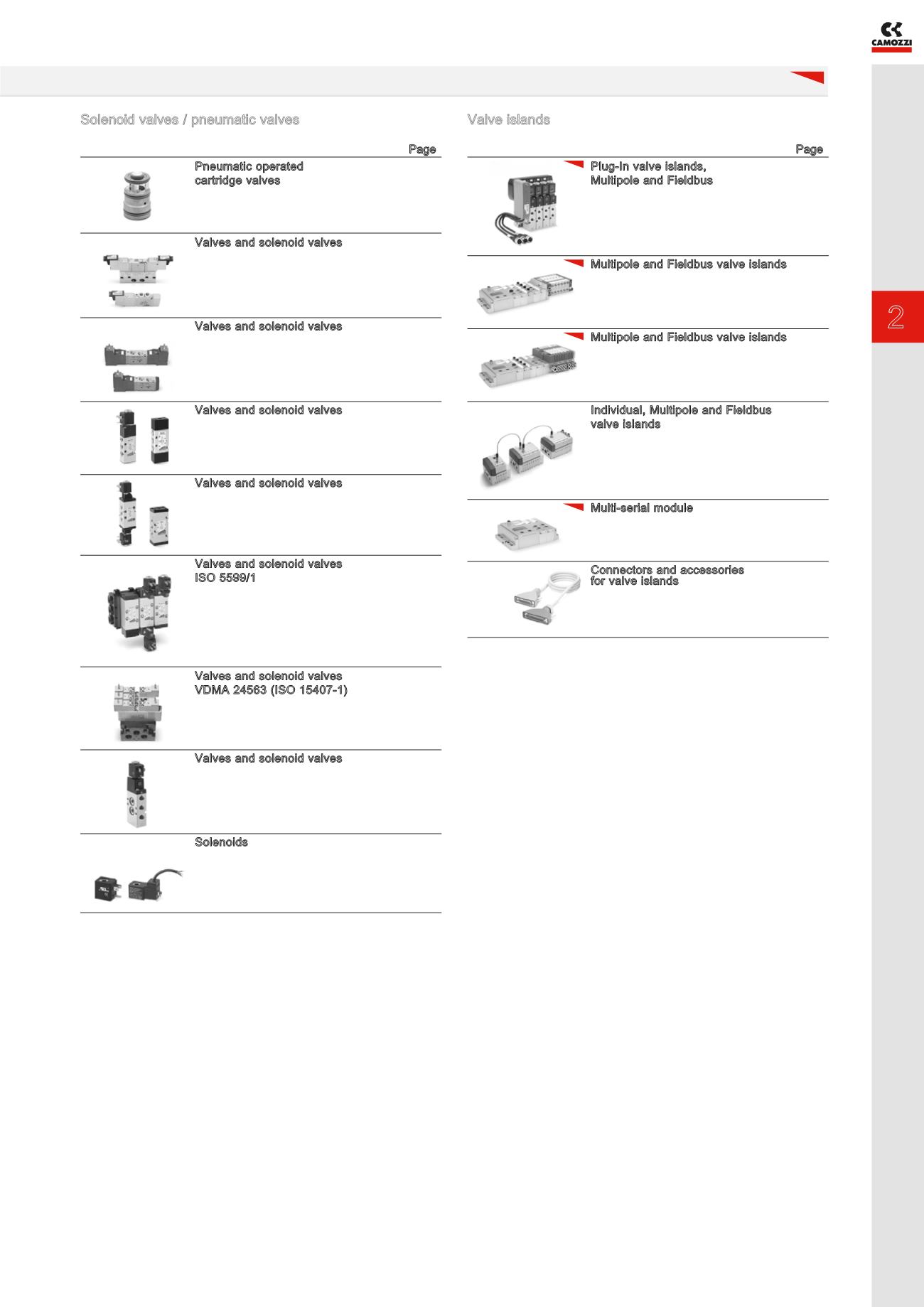

57 / 210
2
CONTROL
>>
Solenoid valves / pneumatic valves
Page
Series
Pneumatic operated
68
8
cartridge valves
2/2-way - 3/2-way
Normally Closed (NC)
Series
Valves and solenoid valves
69
E
5/2-way monostable/bistable
5/3-way CC CO CP
For individual or manifold assembly
Size: 10,5 mm
Series
Valves and solenoid valves
72
EN
5/2-way, 5/3-way CC CO CP
With outlets on the body
For individual or manifold assembly
Size: 16, 19 mm
Series
Valves and solenoid valves
75
3
2x3/2-way, 3/2-way, 5/2-way, 5/3-way CC CO CP
Ports: G1/8, G1/4
Series
Valves and solenoid valves
78
4
3/2-way, 5/2-way, 5/3-way CC CO CP
Ports: G1/8, G1/4, G1/2
Series
Valves and solenoid valves
82
9
ISO 5599/1
5/2-way, 5/3-way CC CO
Ports: G1/4 (size 1), G3/8 (size 2), G1/2 (size 3)
Series
Valves and solenoid valves
84
7
VDMA 24563 (ISO 15407-1)
5/2-way, 5/3-way CC CO CP
Series
Valves and solenoid valves
86
NA
3/2-way, 5/2-way, 5/3-way CC CO CP
With holes configured according
NAMUR standards
Series
Solenoids
87
U, G, A, B, H, GP
Version A and B
Connection according to
DIN 43650 and DIN 40050 standards
Valve islands
Page
Series
Plug-In valve islands,
88
3
Multipole and Fieldbus
Plug-In system for Series 3 solenoid valves, G1/8 port
Valve functions: 2x3/2, 5/2 and 5/3-way CO CC CP
Multipole with a 25-pin Sub-D connector
It can interface with all major
serial communication protocols
Series
Multipole and Fieldbus valve islands
92
F
Multipole integrated electrical connection (PNP)
Valve functions: 2x2/2; 2x3/2; 5/2; 5/3 CC
It can interface with all major
serial communication protocols
Series
Multipole and Fieldbus valve islands
97
HN
Multipole connection with 25 or 37 pins
Serial connection with the most
common communication protocols
Valve functions: 2x2/2; 2x3/2; 5/2; 5/3 CC
Series
Individual, Multipole and Fieldbus
103
Y
valve islands
Valve Island with Pneumatics
and Electronics integrated
Available versions: Individual, Multipole, Fieldbus
(Profibus-DP, DeviceNet, CANopen)
Valve functions: 2x2/2; 2x3/2; 5/2; 5/3 CC
Series
Multi-serial module
106
CX
Interface with: PROFIBUS, CANopen, DeviceNet,
EtherNet/IP, PROFINET, EtherCAT
Compatible with all Camozzi valve islands
Series
Connectors and accessories
109
3, S, KN,
for valve islands
Y, CX
Includes News
