Modell- und Maßänderungen vorbehalten.

Unsere AGBs finden Sie auf

www.camozzi.de

.

Druckregler-Einsatz Serie TC

KATALOG

3

/5.04.02

3

>

Version 8.8

AUFBEREITEN >

AUFBEREITEN

MODELLBEZEICHNUNG

TC

SERIE

1

BAUGRÖSSE

R

REGLER

3

BETRIEBSDRUCK:

1 = 0 ÷ 0.5 bar

2 = 0 ÷ 2 bar

3 = 0 ÷ 3 bar

4 = 0 ÷ 4 bar

1

BAUART:

1 = ohne Sekundärentlüftung

C

ANSCHLÜSSE:

C = Patrone

1/8 = G1/8

1/8TF = 1/8NPTF

V

WERSTOFF DICHTUNGEN:

V = FKM

OX2

VERSION:

OX1 = Sauerstoff (Restpartikel < 550 mg/m²)

OX2 = Sauerstoff (Restpartikel < 33 mg/m²)

TC 1 -

R 3 1 -

C -

V -

OX2

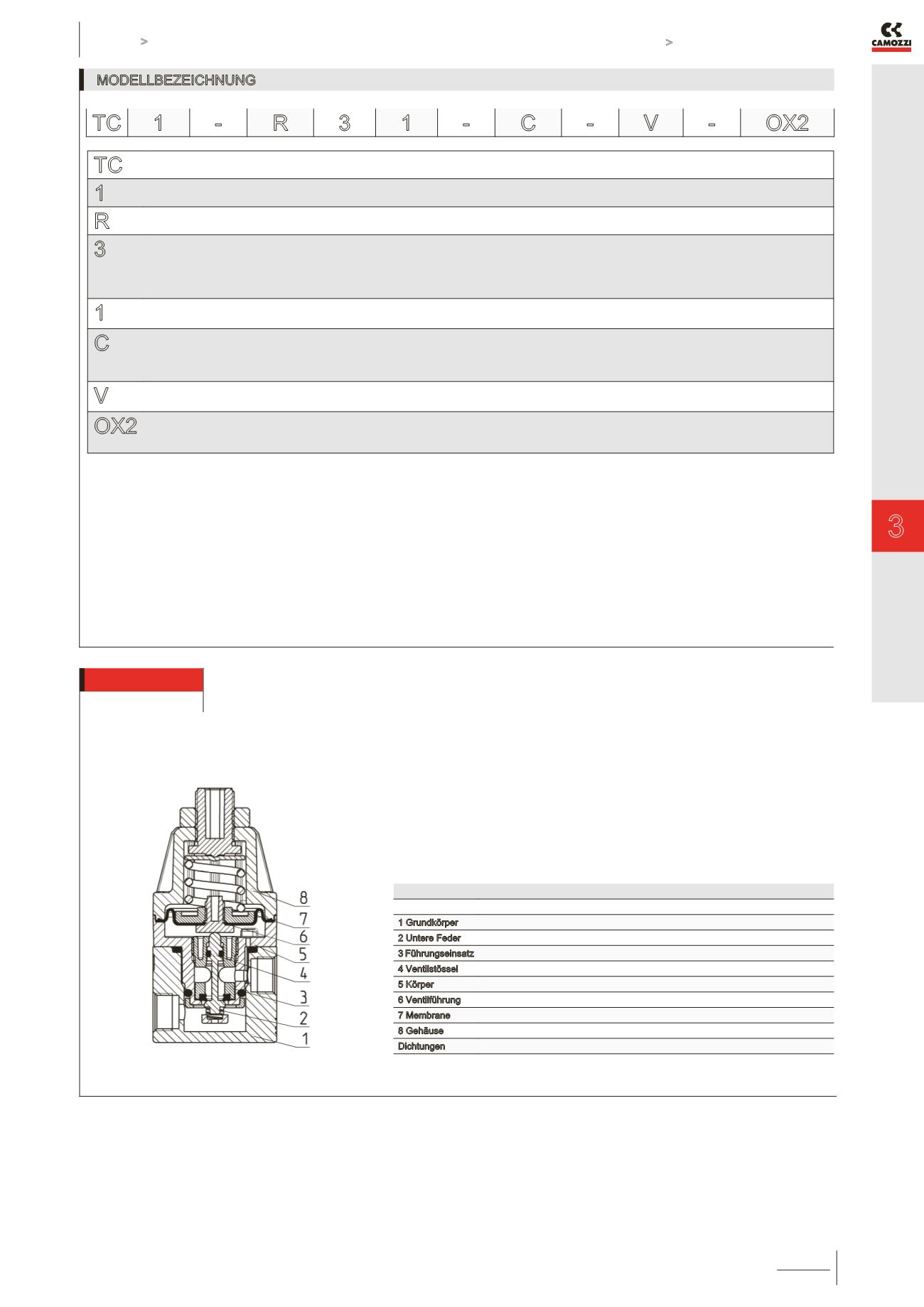

BAUTEIL

WERKSTOFF

1 Grundkörper

Aluminium eloxiert

2 Untere Feder

Edelstahl

3 Führungseinsatz

PPS

4 Ventilstössel

Edelstahl

5 Körper

PPS

6 Ventilführung

PPS

7 Membrane

FKM

8 Gehäuse

Polyamid

Dichtungen

FKM
