Valve islands
The control of actuation is one of the aspects that mostly affect the performance of a pneumatic circuit in industrial applications. Guaranteeing
flexible and reliable components and solutions is the target that Camozzi pursues in the constant development of valve islands, conceived to
satisfy all needs in terms of flow, dimensions and performance, both in the multipole and serial versions.

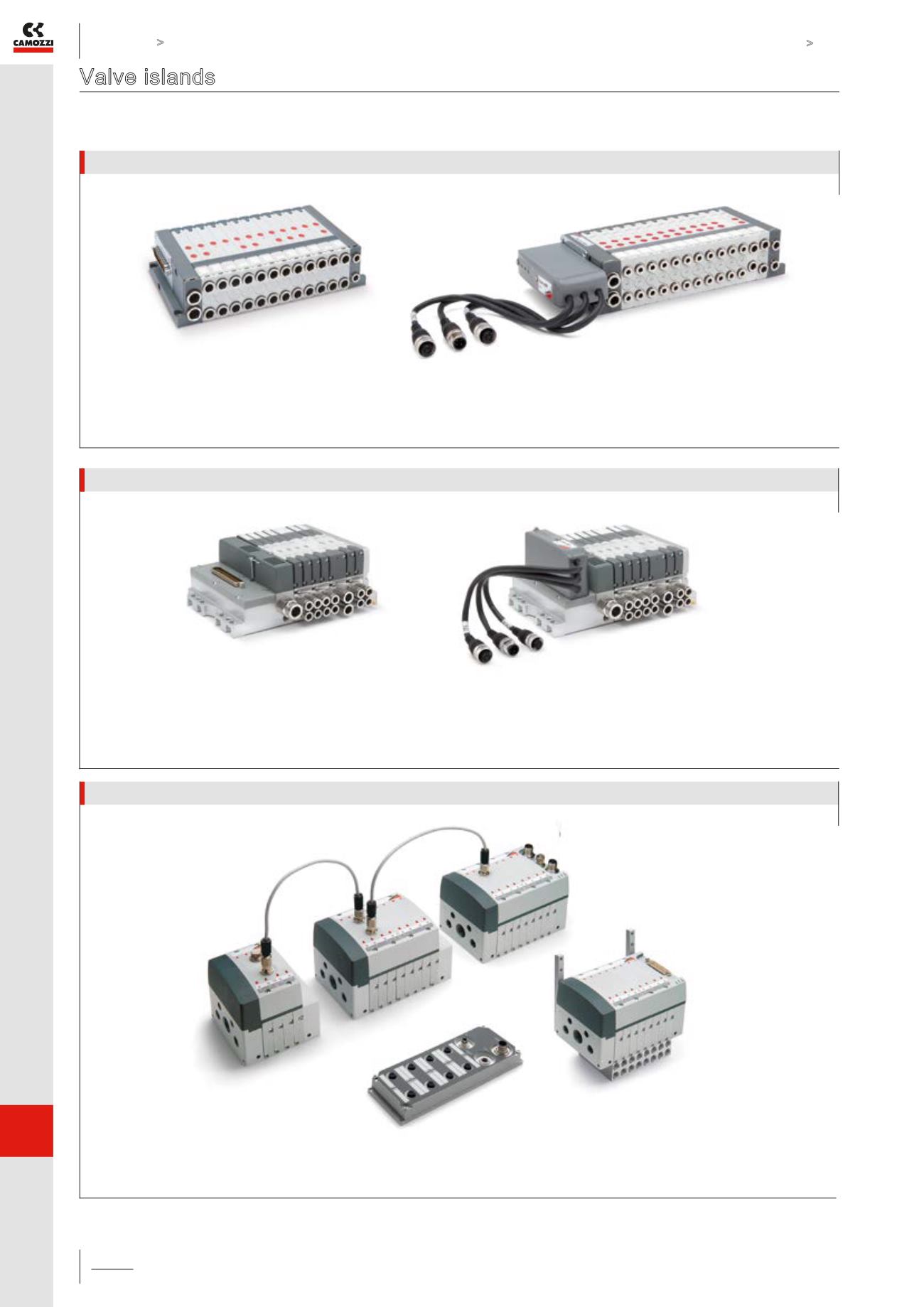

Series F valve islands, Multipole and Fieldbus
Series Y valve islands, Individual, Multipole and Fieldbus
2/3.35 *
» Valve positions: from 2 to 24
» Manual override: Push or Push & Turn
» It can interface with all major serial communication protocols:
PROFIBUS-DP, CANopen, DeviceNet, EtherNet/IP,
PROFINET, EtherCAT
» Multipole integrated electrical connection (PNP)
» Valve functions: 2x2/2; 2x3/2; 5/2; 5/3 CC
» Valve size: 12 and 14mm
» Modularity: single
» Flow rate: 800 Nl/min
» Serial connection with the following communication protocols:
Individual, Multipole, Fieldbus (Profibus-DP, DeviceNet,
CANopen)
» Integrated Pneumatics and Electronics
» Valve functions: 2x2/2; 2x3/2; 5/2; 5/3 CC
» Pneumatic modularity: 2, 4, 6 and 8 valve positions
» Valve size: 12.5mm
Series HN valve islands, Multipole and Fieldbus
2/3.40 *
2/3.45 *
The complete catalogue of our valve islands is available on the site
http://catalogue.camozzi.com.*Section of reference inside the Camozzi catalogue
» Subbases for monostable and bistable valves (size 10.5mm)
» Serial connection with the most common communication
protocols: PROFIBUS-DP, CANopen, DeviceNet, EtherNet/IP,
PROFINET, EtherCAT
» Multipole connection with 25 or 37 pins
» Valve functions: 2x2/2; 2x3/2; 5/2; 5/3 CC
» Valve size: 12 and 14mm
» Valve flow: 400 and 700 Nl/min
» Modular subbases: 2 positions for valve size 10.5mm,
single position for valve size 21mm
