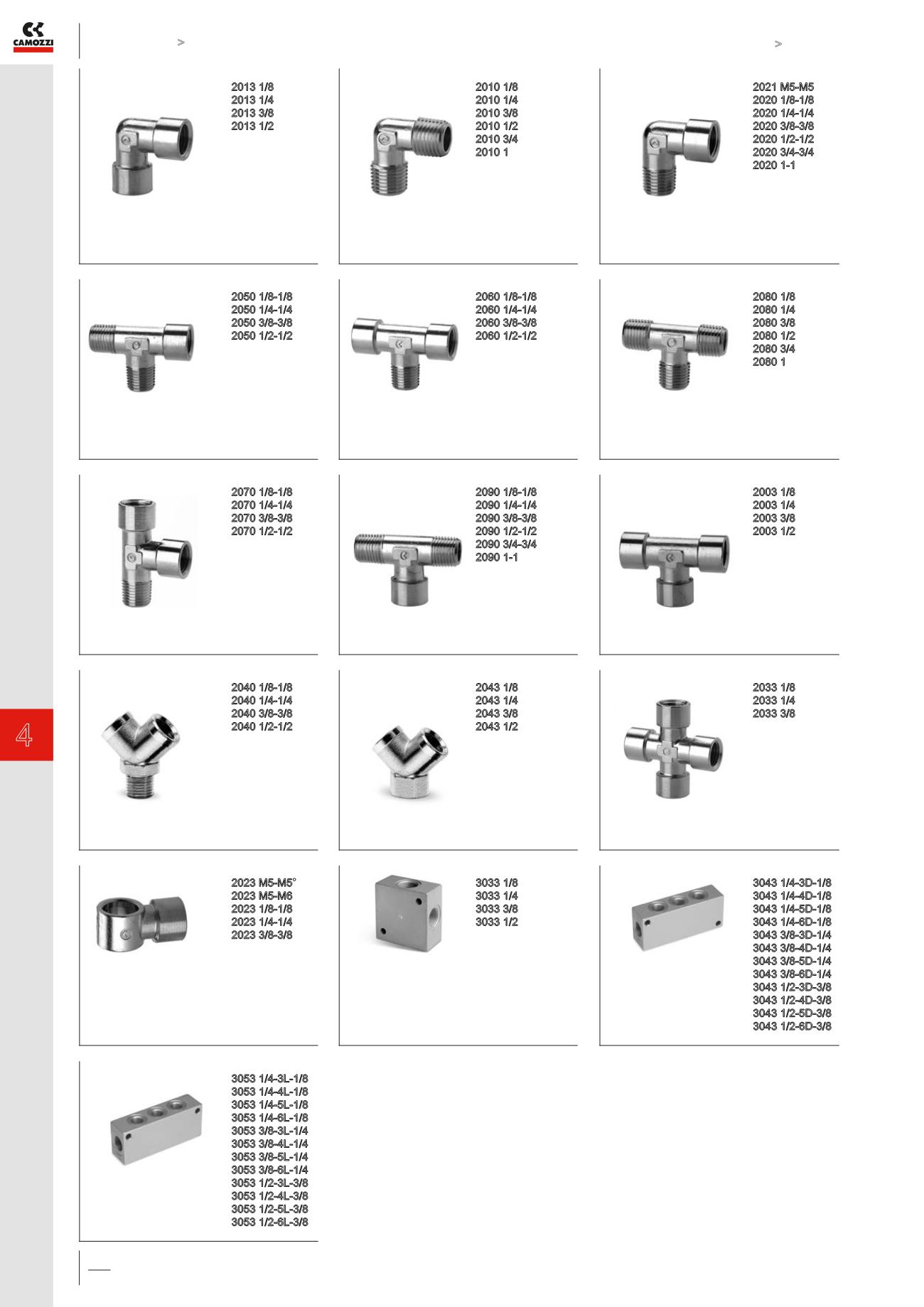

CONNECTION > Series 2000
Mod.
2013 1/8
2013 1/4
2013 3/8
2013 1/2
Mod.
2010 1/8
2010 1/4
2010 3/8
2010 1/2
2010 3/4
2010 1
Mod.
2021 M5-M5*
2020 1/8-1/8
2020 1/4-1/4
2020 3/8-3/8
2020 1/2-1/2
2020 3/4-3/4
2020 1-1
BSPT Female Elbow BSP Male Elbow
BSPT Male Female Elbow
* = Metric Male Female Elbow
Mod.
2050 1/8-1/8
2050 1/4-1/4
2050 3/8-3/8
2050 1/2-1/2
Mod.
2060 1/8-1/8
2060 1/4-1/4
2060 3/8-3/8
2060 1/2-1/2
Mod.
2080 1/8
2080 1/4
2080 3/8
2080 1/2
2080 3/4
2080 1
M.M.F. Tee F.M.F. Tee Male Tee
Mod.
2070 1/8-1/8
2070 1/4-1/4
2070 3/8-3/8
2070 1/2-1/2
Mod.
2090 1/8-1/8
2090 1/4-1/4
2090 3/8-3/8
2090 1/2-1/2
2090 3/4-3/4
2090 1-1
Mod.
2003 1/8
2003 1/4
2003 3/8
2003 1/2
M.F.F. Tee M.F.M. Tee Female Tee
Mod.
2040 1/8-1/8
2040 1/4-1/4
2040 3/8-3/8
2040 1/2-1/2
Mod.
2043 1/8
2043 1/4
2043 3/8
2043 1/2
Mod.
2033 1/8
2033 1/4
2033 3/8
Y.F.M.F. Female Y Female Cross
Mod.
2023 M5-M5 •
2023 M5-M6°
2023 1/8-1/8*
2023 1/4-1/4^
2023 3/8-3/8^
Mod.
3033 1/8
3033 1/4
3033 3/8
3033 1/2
Mod.
3043 1/4-3D-1/8
3043 1/4-4D-1/8
3043 1/4-5D-1/8
3043 1/4-6D-1/8
3043 3/8-3D-1/4
3043 3/8-4D-1/4
3043 3/8-5D-1/4
3043 3/8-6D-1/4
3043 1/2-3D-3/8
3043 1/2-4D-3/8
3043 1/2-5D-3/8
3043 1/2-6D-3/8
Single Thread Banjo
Assembled with:
• = Mod. 1631
° = Mod. SCU, SVU, SCO...
* = Mod. 1631, 1635, SCU, SVU, SCO...
^ = Mod. 1635, SCU, SVU, SCO...
4 Ways Distribution Block with fixing holes
Material: anodized Aluminium
Manifold with double
lateral outles
Material: anodized
Aluminium
Mod.
3053 1/4-3L-1/8
3053 1/4-4L-1/8
3053 1/4-5L-1/8
3053 1/4-6L-1/8
3053 3/8-3L-1/4
3053 3/8-4L-1/4
3053 3/8-5L-1/4
3053 3/8-6L-1/4
3053 1/2-3L-3/8
3053 1/2-4L-3/8
3053 1/2-5L-3/8
3053 1/2-6L-3/8
Manifold with
lateral outlets
Material: anodized
Aluminium
