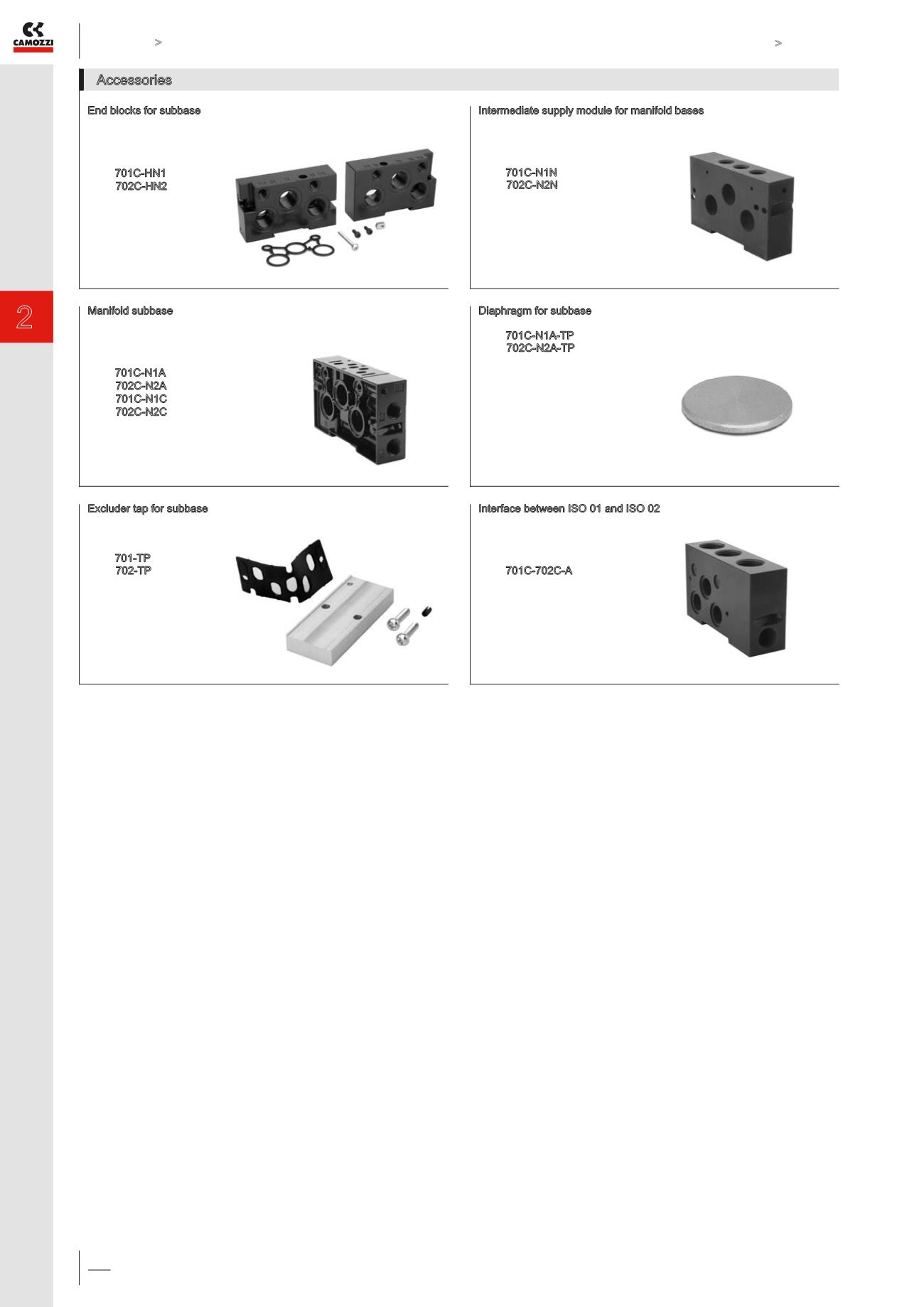

CONTROL > Series 7
Accessories
Intermediate supply module for manifold bases
with conveyed inlets and exhausts and front outlets
The following is supplied:
1x seal,
2x fixing screws
Mod. 701C-N1N
702C-N2N
End blocks for subbase
with conveyed inlets and exhausts and front outlets
The following is supplied:
1x seal,
2x fixing screws
Mod. 701C-HN1
702C-HN2
Diaphragm for subbase
with conveyed inlet and exhausts and side outlets
Mod. 701C-N1A-TP
702C-N2A-TP
Manifold subbase
with conveyed inlets and exhausts and front outlets
The following is supplied:
1x seal,
2x fixing screws
Mod. 701C-N1A for separate pilots
702C-N2A for separate pilots
701C-N1C
702C-N2C
Interface between ISO 01 and ISO 02
The following is supplied:
1x tap S2610 3/8,
5x OR,
2x screws
Mod. 701C-702C-A
Excluder tap for subbase
The following is supplied:
1x seal,
2x screws
Mod. 701-TP
702-TP
