SHORT FORM CATALOGUE > Release 8.8
2
CONTROL
Products designed for industrial applications.
General terms and conditions for sale are available on
CONTROL > Series 4
Mod. 454-33
Mod. 454-34 Mod. 468-33
Mod. 464-33
Mod. 474-33
Mod. 452N-35 Mod. 452N-33
Mod. 452C-35
Mod. 452C-33
Mod. 452C-34

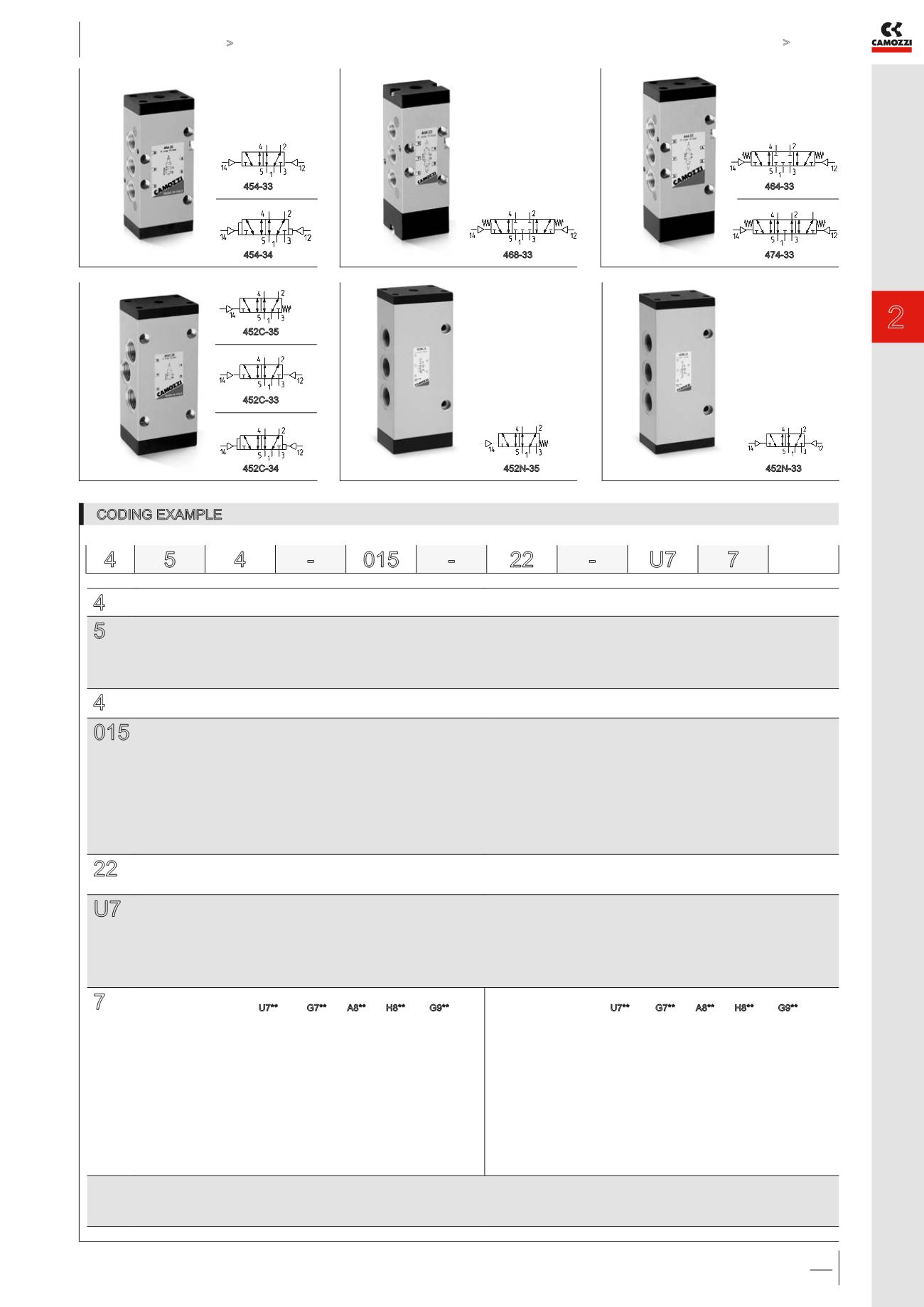

CODING EXAMPLE
4 SERIES
5 NUMBER OF WAYS - POSITIONS:
3 = 3/2 NC
4 = 3/2 NO
5 = 5/2
6 = 5/3 CC
7 = 5/3 CO
4 PORTS:
8 = G1/8 - 4 = G1/4 - 2C = G1/2 - 2N = G1/2 (high flow)
015 ACTUATION:
011 = double solenoid (horizontal solenoids)
V11 = double solenoid (vertical solenoids) for G1/4 port only
E11 = double solenoid external servo-command
E15 = single solenoid external servo-command
015 = single solenoid, spring return (horizontal solenoids)
V15 = single solenoid, spring return (vertical solenoid) for G1/4 port only
016 = single solenoid, pneumatic spring return (horizontal solenoid)
V16 = single solenoid, pneumatic spring return (vertical solenoid) for G1/4 port only
33 = pneumatic pneumatic
34 = pneumatic differential
35 = pneumatic spring
22 SOLENOID INTERFACE::
22 = mech. sol. 22 x 22
50 = mech. sol. 32 x 32 (G1/2 only)
U7 SOLENOID MATERIAL / DIMENSIONS:
A6 = PPS / 32 x 32 (G1/2 only)
A8 = PPS / 30 x 30
G7 = PA / 22 x 22
G8 = PA / 30 x 30 (24 V DC only)
G9 = PA / 22 x 58
H8 = PA 6 V0 / 30 x 30
U7 = PET / 22 x 22
7 SOLENOID VOLTAGE:
U7** G7** A8** H8** G9**
B 24V AC 50/60Hz - - 5VA 5,3VA -
C 48V AC 50/60Hz - - - 5,3VA -
D 110V AC 50/60Hz - - 5VA 5,3VA -
E 230V AC 50/60Hz - - 5VA 5,3VA -
F 380V AC 50/60Hz 7VA 7VA - - -
H 24V 50/60Hz 3,5VA 3,5VA - - -
12V DC 3,1W 3,1W - - -
K 72V DC 4,8W 4,8W - - -
110V AC 50/60Hz 3,8VA 3,8VA - - -
125V AC 50/60Hz 5,5VA 5,5VA - - -
K1* 72V DC 5,6W 5,6W - - -
110V AC 50/60Hz 5,8VA 5,8VA - - -
125V AC 50/60Hz 8,3VA 8,3VA - - -
J 230V AC 50/60Hz 3,5VA 3,5VA - - -
240V AC 50/60Hz 4VA 4VA - - -
U7** G7** A8** H8** G9**
1 6V DC 5,1W 5,1W - - -
2 12V DC 5W 5W - - -
3 24V DC 5W 5W 4W 5,4W 4/2W
4 48V DC 5,3W 5,3W 4W - -
6 110V DC 4,2W 4,2W - - -
7 24V DC 3,1W 3,1W - - -
48V AC 50/60Hz 3,5VA 3,5VA - - -
71* 24V DC 3,1W 3,1W - - -
48V AC 50/60Hz 3,5VA 3,5VA - - -
9 48V DC 3,1W 3,1W - - -
10 110V DC 3,2W 3,2W - - -
* = only for valve models NO in line
** = substitute 0 with letter or number at the beginning of the line
TYPE OF MANUAL OVERRIDE:
= bistable, standard
IL = bistable, lever type (available on demand)
IM = monostable (available on demand)
4 5 4 - 015 - 22 - U7 7
