ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
90

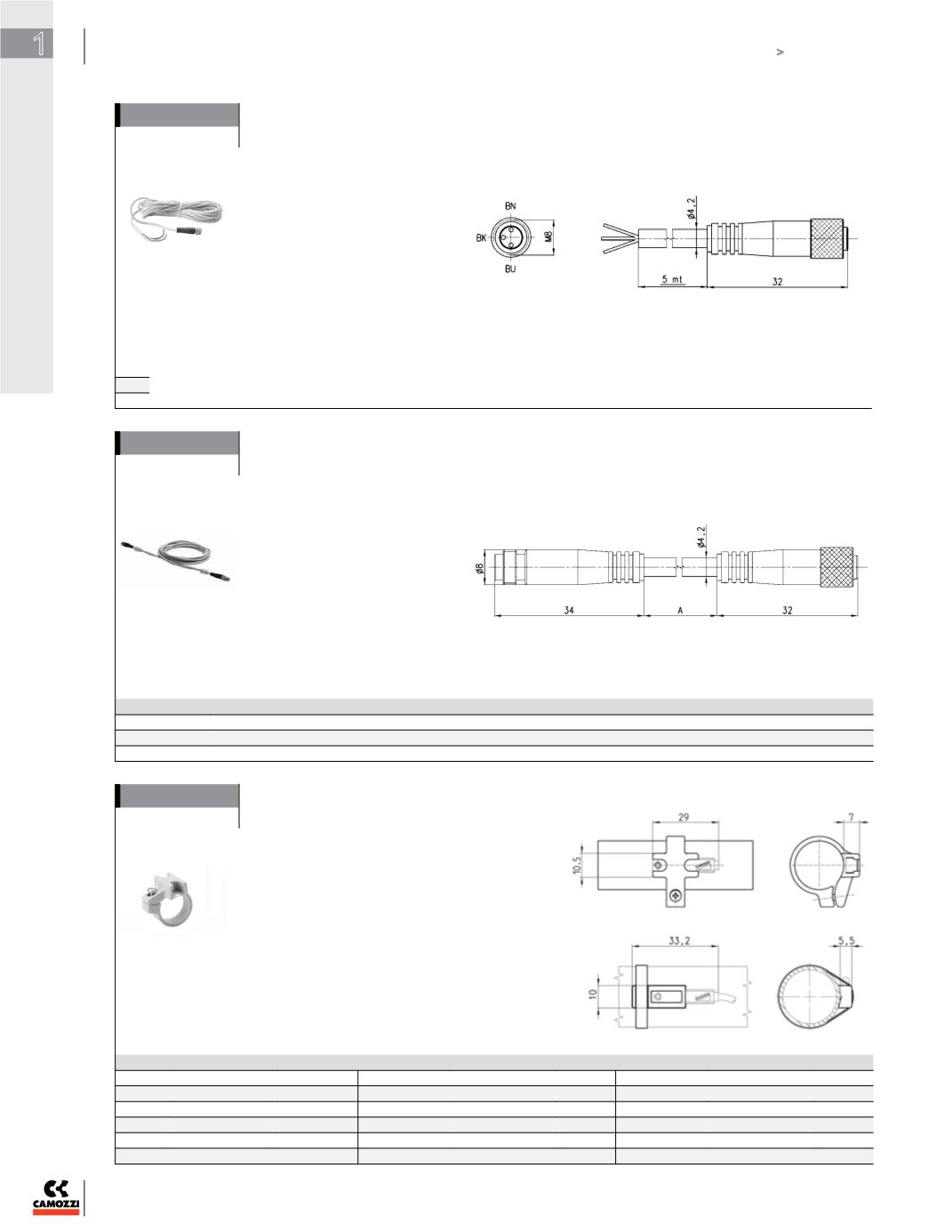

Extension with female connector M8 Mod. CS-5
Extension length 5 mt.
BN = Brown
BK = Black
BU = Blue
Mod.
CS-5
In case of the use of sensors with two wires
with connector M8 models CST-250N, CSV-
250
N, CSH-253 connect the brown wire to the
input (+) and the black wire to the load.
Extension with female/male connector M8
Mod.
A
CS-DW03HB-C250
250
mm
CS-DW03HB-C500
500
mm
Mounting brackets for sensors Series CST - CSH
Materials:
-
from S-CST-05-12 stainless steel
-
from S-CST-02-04 and S-CST-18-21 technopolymer.
Mod.
Cylinder series
Ø
Mod.
Cylinder series
Ø Mod.
Cylinder series
Ø
S-CST-02
24-25-27
16
S-CST-07
90-92
40
S-CST-12
90
125
S-CST-03
24-25-27
20
S-CST-08
90-92
50
S-CST-18
27-42
32
S-CST-04
24-25-27
25
S-CST-09
90-92
63
S-CST-19
27-42
40
S-CST-05
94-95
16-20-25
S-CST-10
90
80
S-CST-20
27-42
50
S-CST-06
90-92
32
S-CST-11
90
100
S-CST-21
27-42
63
