Wegeventile Serie 4

KATALOG

2

/2.15.02

2

>

Version 8.8

ANSTEUERN >

ANSTEUERN

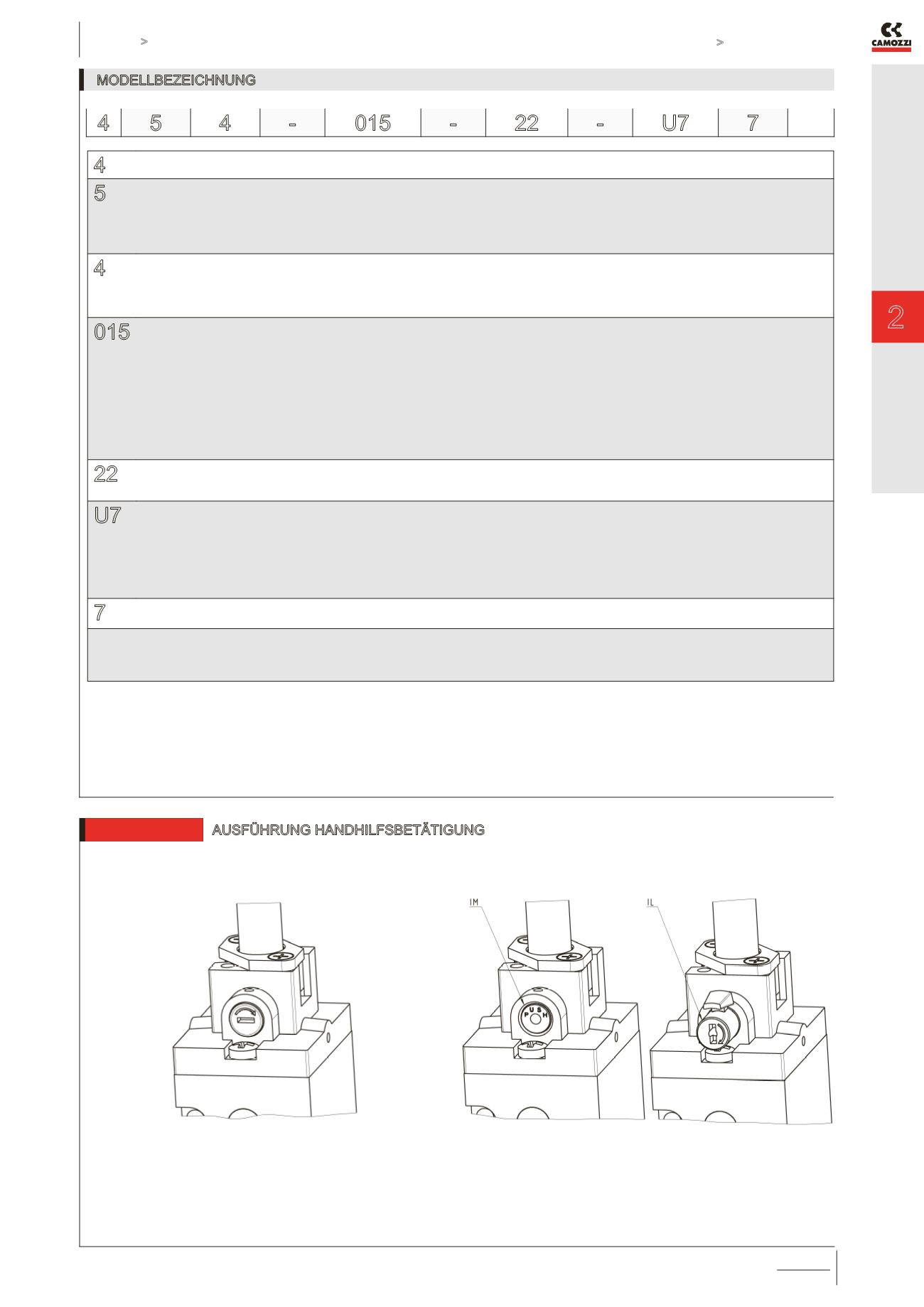

MODELLBEZEICHNUNG

4

SERIE

5

FUNKTION

3 = 3/2 NC

4 = 3/2 NO

5 = 5/2

6 = 5/3 Mitte geschlossen

7 = 5/3 Mitte offen

4

ANSCHLÜSSE

8 = G1/8”

4 = G1/4”

2C = G1/2”

2N = G1/2” (hoher Durchfluss)

015

BETÄTIGUNG

011 = elektrisch/elektrisch

V11 = elektrisch/elektrisch nur G1/4”, 90° versetzt

E11 = 2 Spulen, externe Vorsteuerung

E15 = 1 Spule, externe Vorsteuerung

015 = elektrisch, Federrückstellung (Spule horizontal)

V15 = elektrisch/Federrückstellung, nur G1/4”, 90° versetzt

016 = elektrisch/pneumatische Federrückstellung

V16 = elektrisch/pneumatische Federrückstellung, nur G1/4”, 90° versetzt

33 = pneumatisch

34 = pneumatisch/Differenzialdruck

35 = pneumatisch/Federrückstellung

22

VORSTEUERVENTIL

22 = Mechanik/Spule 22 x 22 mm

50 = Mechanik/Spule 32 x 32 mm (nur G1/2”)

U7

SPULENWERKSTOFF / SPULENABMESSUNGEN

A6 = PPS / 32 x 32 mm (nur G1/2”)

A8 = PPS / 30 x 30 mm

G7 = PA / 22 x 22 mm

G8 = PA / 30 x 30 mm (nur 24 V DC)

G9 = PA / 22 x 58 mm

H8 = PA 6 V0 / 30 x 30 mm

U7 = PET / 22 x 22 mm

7

SPANNUNGEN

siehe Seite 2.2.35.01

AUSFÜHRUNG HANDHILFSBETÄTIGUNG

= bistabil Standard

IL = bistabil mit Hebel (auf Anfrage)

IM = monostabil (auf Anfrage)

4 5 4 -

015 -

22 -

U7 7

6512

AUSFÜHRUNG HANDHILFSBETÄTIGUNG

Handhilfsbetätigung Standard

Handhilfsbetätigung monostabil (IM)

Handhilfsbetätigung bistabil (IL)
