Modell- und Maßänderungen vorbehalten.

Unsere AGBs finden Sie auf

www.camozzi.de

.

3

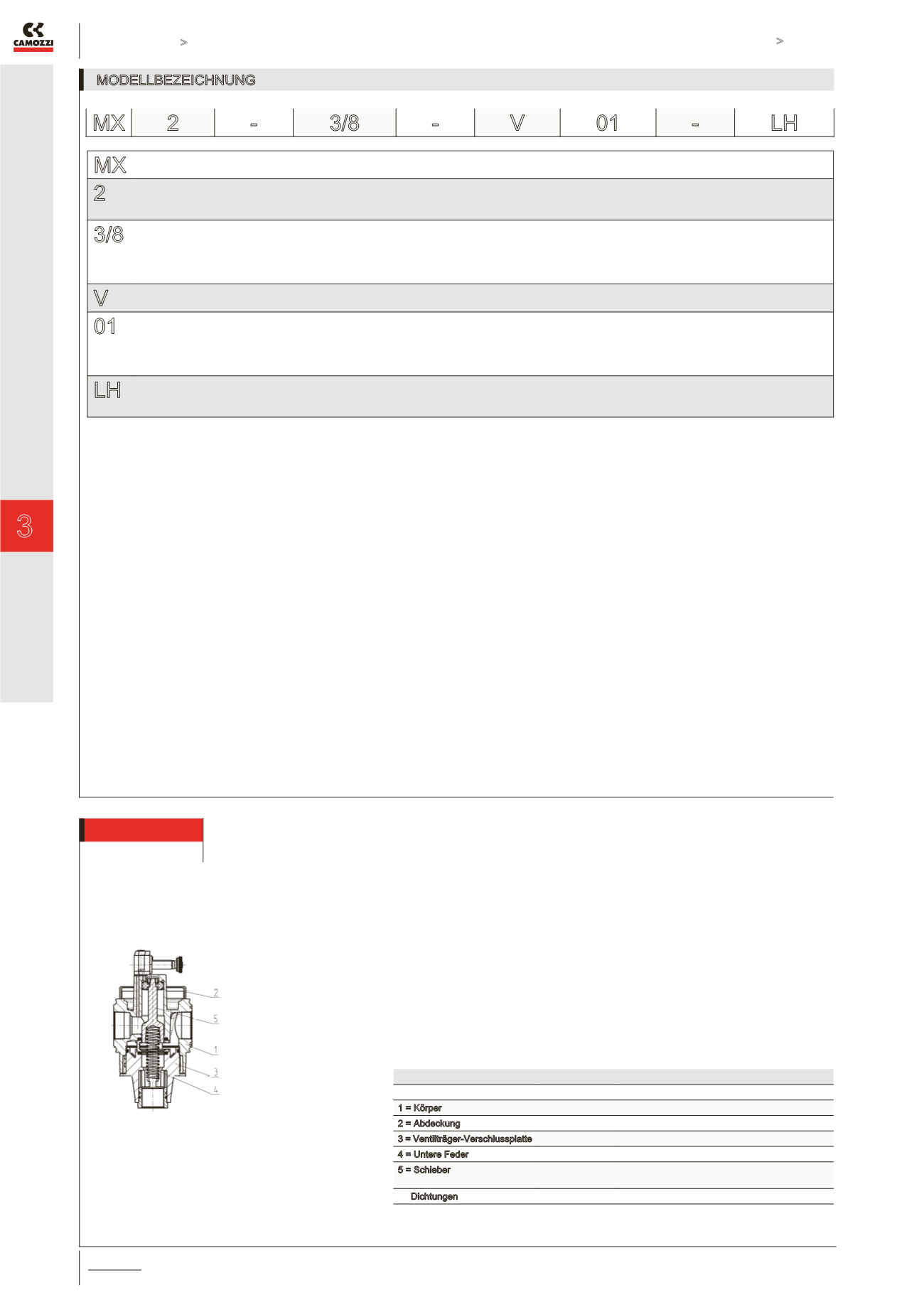

Absperrventil 3/2-Wege Serie MX

AUFBEREITEN >

KATALOG

>

Version 8.8

/1.35.02

3

AUFBEREITEN

MODELLBEZEICHNUNG

MX

SERIE

2

GRÖSSE:

2 = G3/8 - G1/2 - G3/4

3 = G3/4 - G1

3/8

ANSCHLUSS:

3/8 = G3/8

1/2 = G1/2

3/4 = G3/4

1 = G1

V

3/2-WEGEVENTIL

01

BAUART:

01 = manuell betätigt, abschließbar

16 = elektropneumatisch betätigt

17 = vorgesteuert betätigt

36 = pneumatisch betätigt

LH

DURCHFLUSSRICHTUNG:

= von links nach rechts(Standard)

LH = von rechts nach links

Weitere Details zur Leitungs-, Wandmontage direkt oder mit Abstandshalter siehe Wartungseinheiten Serie MX(Seite 3/1.50.01). Zubehör siehe ab 3/5.05.01.

MX 2

-

3/8

-

V 01

-

LH

WERKSTOFFE

TEILE

WERKSTOFFE

1 = Körper

Aluminium

2 = Abdeckung

Polyacetal

3 = Ventilträger-Verschlussplatte

Polyacetal

4 = Untere Feder

Stahl verzinkt

5 = Schieber

Edelstahl (MX...V16 - V17 - V36)

Aluminium (MX...V01)

Dichtungen

NBR

Absperrventile 3/2-Wege Serie MX - Werkstoffe
