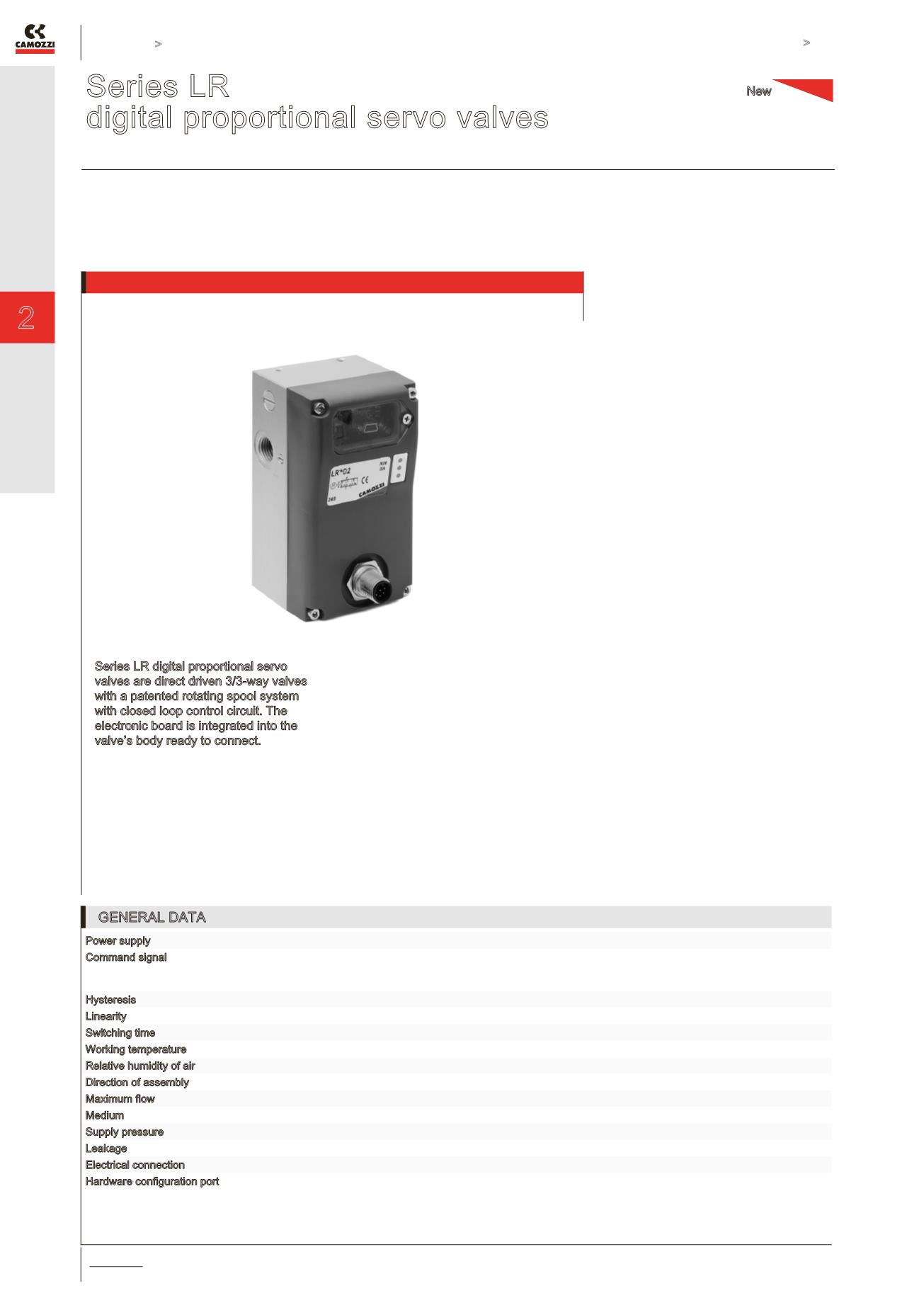

Series LR digital proportional servo valves CONTROL > C_FLUID CONTROL CATALOGUE > 2018
133
CONTROL
Series LR
digital proportional servo valves
3/3-way directly operated servo valves for the flow (LRWD2),
pressure (LRPD2) and position (LRXD2) control
Series LR digital proportional servo
valves are direct driven 3/3-way valves
with a patented rotating spool system
with closed loop control circuit. The
electronic board is integrated into the
valve’s body ready to connect.
Series LR*D2 digital proportional servo
valve has been designed to be as
compact as possible in order to save
space and to be mounted on a DIN-rail.
Thanks to this new digital version, the
valve can be configurated through a
USB connection according to different
requirements.
» » Digital version which is
completely configurable
through micro USB
»
» Rotating spool system with
a metal to metal seal
» » High flow rate
» » Electronic control to
ensure high precision
in the flow control
»
» 3-way-function with 4 - 6
mm nominal diameters
» » Compact version for cabinet
mounting on DIN-rail
» » Position control version
GENERAL DATA
Power supply 24 V DC +/- 10%, max absorption 1.5 A
Command signal +/- 10 V
0-10 V
4-20 mA
Hysteresis 1% FS LRWD2 - 0,2% FS LRPD2
Linearity 1% FS LRWD2 - 0.3% FS LRPD2
Switching time see the following pages
Working temperature from 0 to 50° C
Relative humidity of air max. 90%
Direction of assembly any
Maximum flow see the diagrams on the following pages
Medium filtered compressed air, unlubricated, according to ISO 8573-1 class 3.4.3, inert gas
Supply pressure -0.9 to 10 bar
Leakage < 1% of maximum flow rate
Electrical connection male connector M12 8 poles
Hardware configuration port micro USB
New
