Series 130 electronic control device

C_FLUID CONTROL CATALOGUE

130

2018

CONTROL >

CONTROL

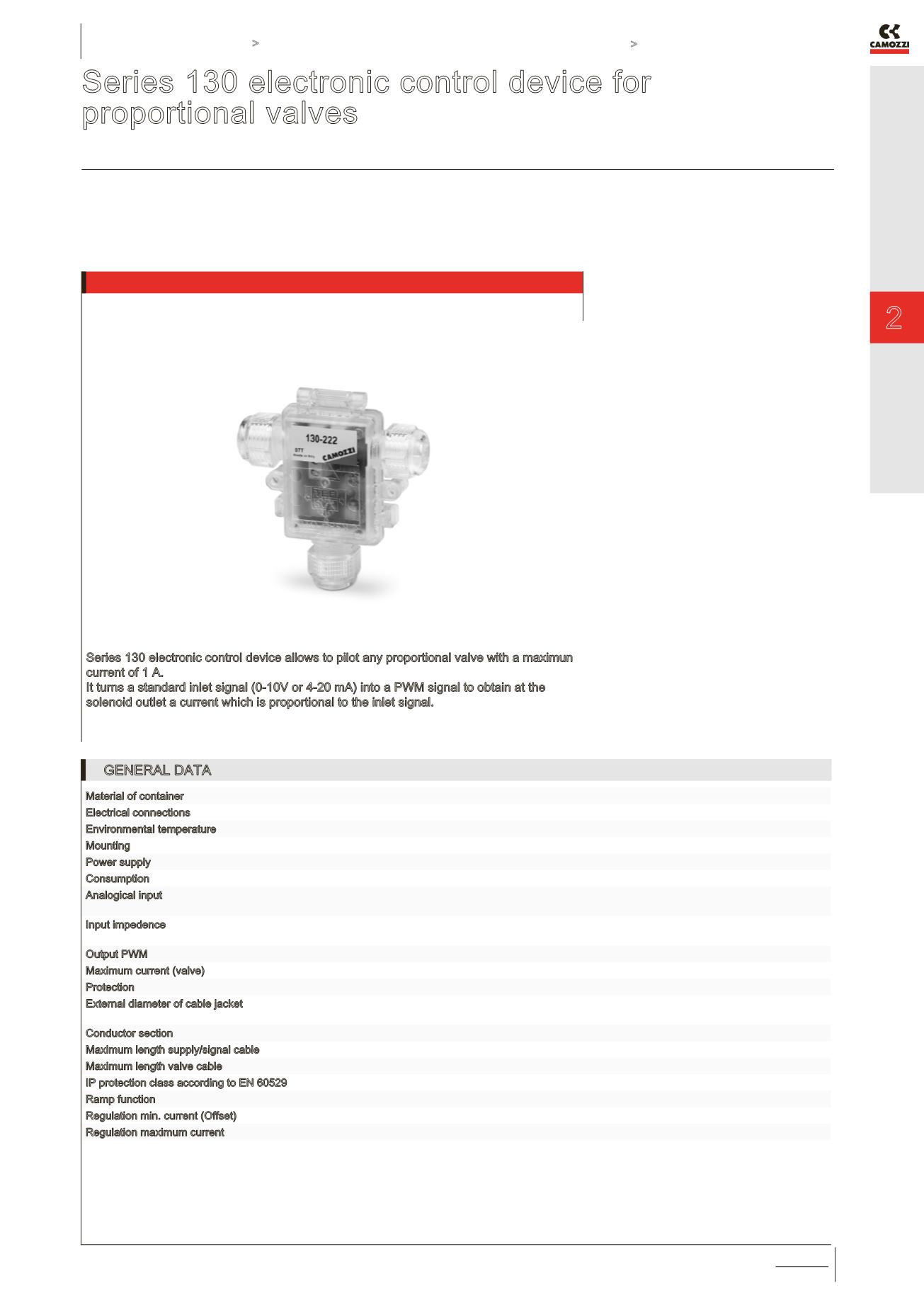

Series 130 electronic control device for

proportional valves

PWM control device, with current control system for directly operated

proportional valves

Series 130 electronic control device allows to pilot any proportional valve with a maximun

current of 1 A.

It turns a standard inlet signal (0-10V or 4-20 mA) into a PWM signal to obtain at the

solenoid outlet a current which is proportional to the inlet signal.

A control system of the provided current

allows to compensate variations due to

heating of the solenoid or to the variation

of the supply voltage.It is possible to adjust

the maximum current and the minimum

current provided to the solenoid. The outlet

signal can have a ramp progress that is

adjustable between 0 and 5 s. The device

has a firmware dedicated to the proportional

valve to pilot in order to guarantee the best

performance.

Closed loop current

control (max current that

can be provided = 1A)

Management of up

and down ramp

Command signal

0-10V and 4-20mA

Regulation of min and max

current (Span and Offset)

GENERAL DATA

Material of container

Polycarbonate

Electrical connections

screw

Environmental temperature

0 ÷ 50°C

Mounting

in any position

Power supply

6 V ÷ 24 V DC (± 10%)

Consumption

0.4 W (without valve)

Analogical input

0 ÷ 10 V

4 ÷ 20 mA

Input impedence

>30 Kohm with inlet under voltage

<200 ohm with inlet under current

Output PWM

120 Hz ÷ 11.7 KHz (fixed, according to the valve chosen)

Maximum current (valve)

1 A

Protection

Polarity inversion, short circuit of the outlet

External diameter of cable jacket

5 ÷ 7.5 mm with seal only

4 ÷ 6 mm with reducer and seal

Conductor section

26 ÷ 16 AWG / 0,13 ÷ 1,5 mm2

Maximum length supply/signal cable

10 m

Maximum length valve cable

5 m

IP protection class according to EN 60529 IP 54

Ramp function

Adjustable time from 0 to 5 s

Regulation min. current (Offset)

0% ÷ 40% F.S.

Regulation maximum current

50% ÷ 100% F.S.
