Series LR digital proportional servo valves
CONTROL >
C_FLUID CONTROL CATALOGUE
>
2018
135
CONTROL
LEGEND:
P = regulated pressure (bar)
F = flow (Nl/min)
Pa = inlet pressure (bar)
RESPONSE TIMES WITH COMMAND SIGNAL BETWEEN 0% AND 100% IN COMPLIANCE WITH ISO 10094-2 STANDARD
Without volume
Volume 0,5 l
Volume 2 l
Filling [ms]
24
313
1841
Exhaust [ms]
35
663
3640
valve with SET POINT = 0% and regulated pressure = 0 bar
valve with SET POINT = 100% and regulated pressure = maximum pressure
(example: 10 - 1 bar or 250 mbar)

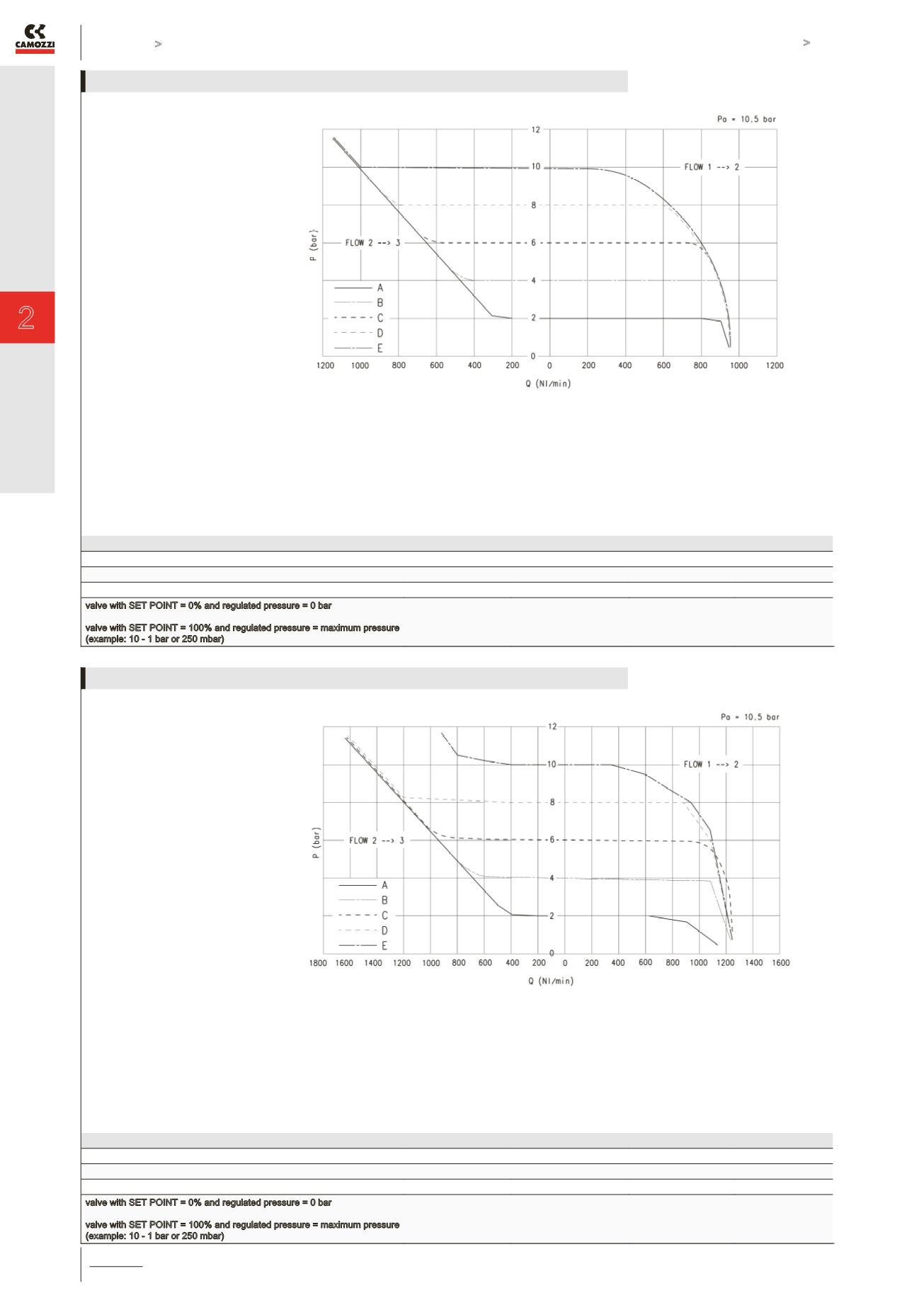

FLOW DIAGRAMS FOR VALVE LRPD2-34
LEGEND:
P = regulated pressure (bar)
F = flow (Nl/min)
Pa = inlet pressure (bar)
RESPONSE TIMES WITH COMMAND SIGNAL BETWEEN 0% AND 100% IN COMPLIANCE WITH ISO 10094-2 STANDARD
Without volume
Volume 0,5 l
Volume 2 l
Filling [ms]
20
263
1560
Exhaust [ms]
32
357
1905
valve with SET POINT = 0% and regulated pressure = 0 bar
valve with SET POINT = 100% and regulated pressure = maximum pressure
(example: 10 - 1 bar or 250 mbar)
FLOW DIAGRAMS FOR VALVE LRPD2-36
