www.camozzi.com.Series PR precision regulators
C_FLUID CONTROL CATALOGUE
3
192
>
2018
TREATMENT >
TREATMENT

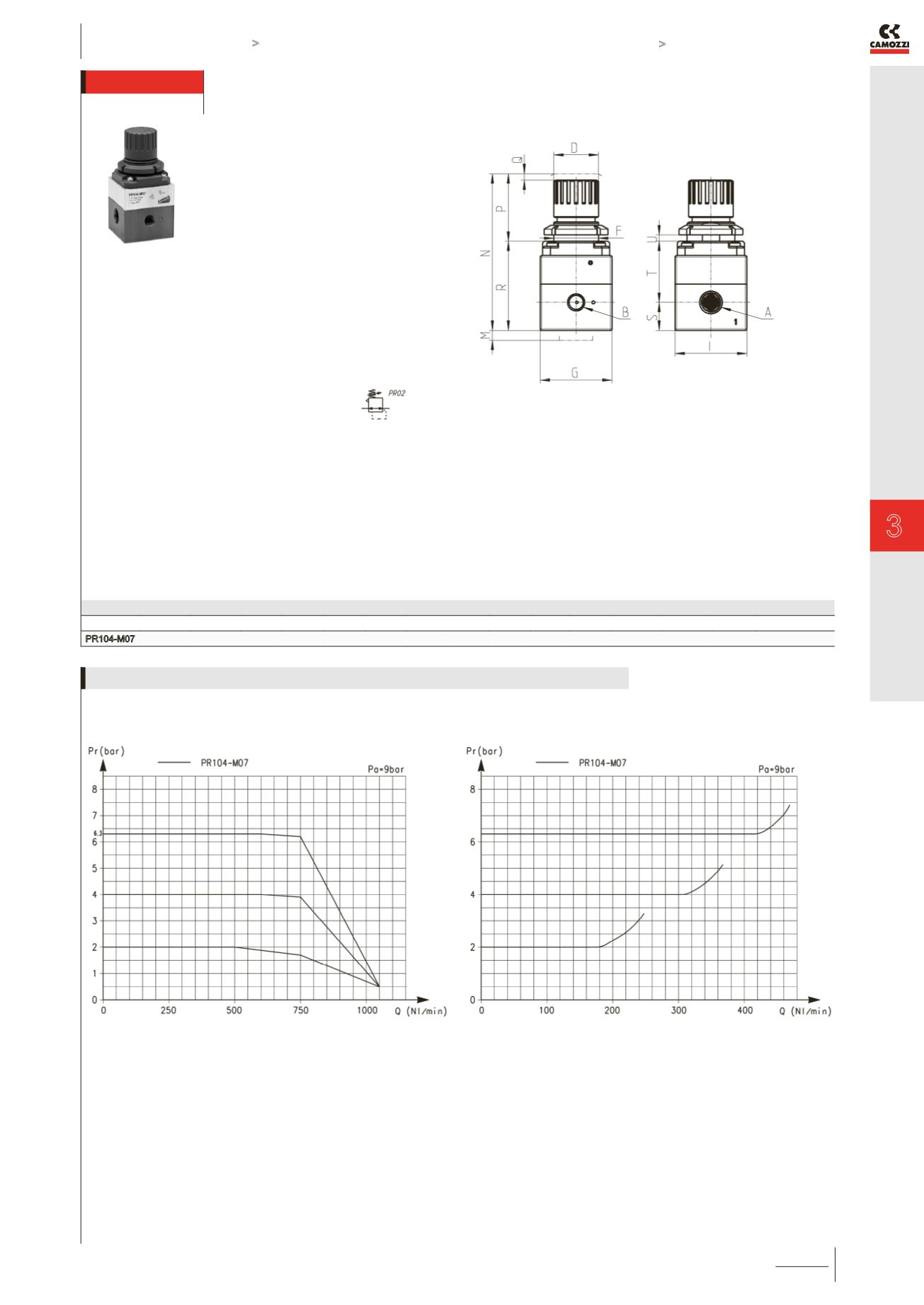

Series PR precision regulators - dimensions
DIMENSIONS
Mod.
A
B
D
F
G
I
M N
P
Q R
S
T
U Weight (Kg)
PR104-M07 G1/4
G1/8
28
30
45
45
25
96
40
2
56
17.5
38.5
0-6
0.35
Pr = Regulated pressure
Q = Flow
Pa = Inlet pressure
EXHAUST FLOW DIAGRAM
Pr = Regulated pressure
Q = Flow
Pa = Inlet pressure
Mod. PR104-M07 FLOW DIAGRAMS (STANDARD VERSION)
