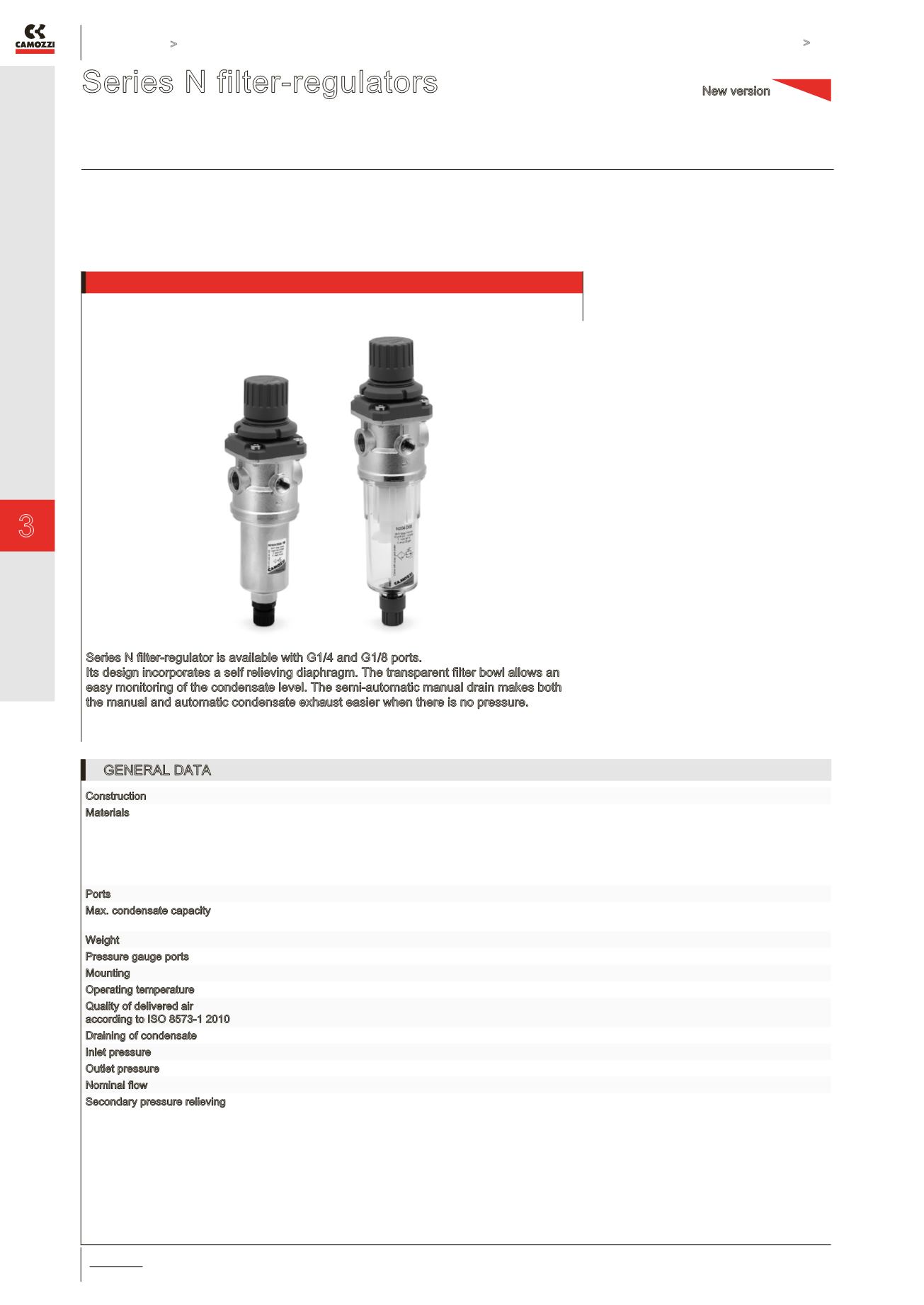

Series N filter-regulators
TREATMENT >
C_FLUID CONTROL CATALOGUE
>
2018
TREATMENT
Series N filter-regulators
Ports G1/8, G1/4
Series N filter-regulator is available with G1/4 and G1/8 ports.
Its design incorporates a self relieving diaphragm. The transparent filter bowl allows an
easy monitoring of the condensate level. The semi-automatic manual drain makes both
the manual and automatic condensate exhaust easier when there is no pressure.
The version with metal bowl is particularly
suitable for applications subject to impacts
or in the presence of aggressive agents that
could damage the PA12 bowl.
»
»
Available with:
transparent PA12 bowl or
nickel-plated brass bowl
for the small version (N1)
GENERAL DATA
Construction
HDPE and coalescing filtering element
Materials
brass body and poppet
stainless steel spring
NBR O-ring
HDPE filtering element
transparent PA12 or nickel-plated bowl
others: PA
Ports
G1/8 - G1/4
Max. condensate capacity
11 cm³ (bowl size = 1)
28 cm³ (bowl size = 2)
Weight
0.370 Kg
Pressure gauge ports
G1/8
Mounting
vertical, in-line
Operating temperature
-5°C ÷ 50°C a 10 bar (with the dew point of the fluid lower than 2°C at the min. working temperature)
Quality of delivered air
according to ISO 8573-1 2010
Class 7.8.4 with 25 µm filtering element
Class 6.8.4 with 5 µm filtering element
Draining of condensate
semi-automatic manual
Inlet pressure
0 ÷ 16 bar
Outlet pressure
0.5 ÷ 10 bar
Nominal flow
see diagrams
Secondary pressure relieving standard
