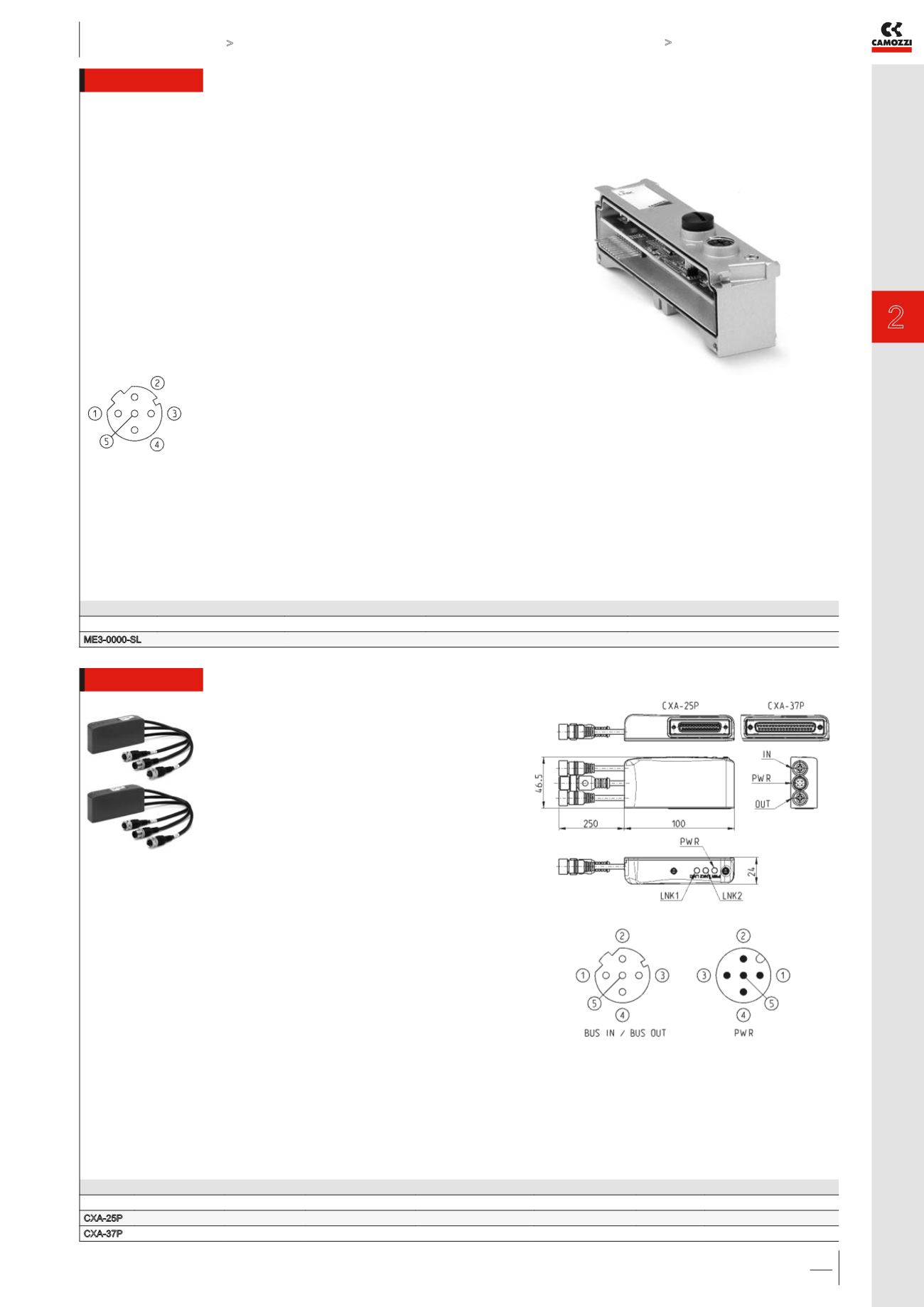

CONTROL > Series CX multi-serial module
This module can be connected only in presence
of a CPU or Expansion module and can be mixed
with other either digital or analog Input and Output
devices.
Every subnet can have an extension of maximum
100 metres, with a maximum of 8 interruptions. Up
to maximum 5 initial modules can be connected,
one aside another or along the subnet in order to
create a tree structure, in series or both, in order to
optimize the length of the cables and the topology
of the subnet in different applications. The module
is equipped with the Bus-OUT connection only of
subnet type M12 D 5 pin female.
Initial subnet module Mod. ME3-0000-SL
Mod. Coding reference Bus-OUT connection Max number of modules for subnet Max extension of subnet per module
ME3-0000-SL S M12D 5 pin female 5 100 m
Led 1 = Yellow LNK1
Led 2 = Yellow LNK2
Led 3 = Green PWR,
supply present and OK
It is an Expansion module of the subnet and can
be connected to all valve islands with Sub-D 25 pin
connection (Series F, HN and 3) or 37 pin connection
(Series HN). It has its own M12A 4 pin male
connection for the supply of the valves connected,
distinguishing both logic supply and power supply
and two M12 D 5 pin female connections for the
Bus-IN and Bus-OUT of the subnet. The subnet can
have a length of maximum 100 metres. The 25 pin
adaptor module manages a fixed number of 24 digital
outputs, while the 37 pin adaptor module manages
a fixed number of 32 digital outputs. In both cases,
every output can provide a maximum of 3 W to 24 V
DC, with PWM outputs for which it is possible to set
the working frequency value.
Sub-D adaptor module 25 and 37 pin Mod. CXA-25P and CXA-37P
Mod. Interface Digital Outs Bus-IN connection Bus-OUT connection PWR connection Supply Power for every Output
CXA-25P Sub-D 25 pin 24 M12D 5 pin female M12D 5 pin female M12A 4 pin male 24 V DC 3 W
CXA-37P Sub-D 37 pin 32 M12D 5 pin female M12D 5 pin female M12A 4 pin male 24 V DC 3 W
