CONTROL > Series Y valve islands

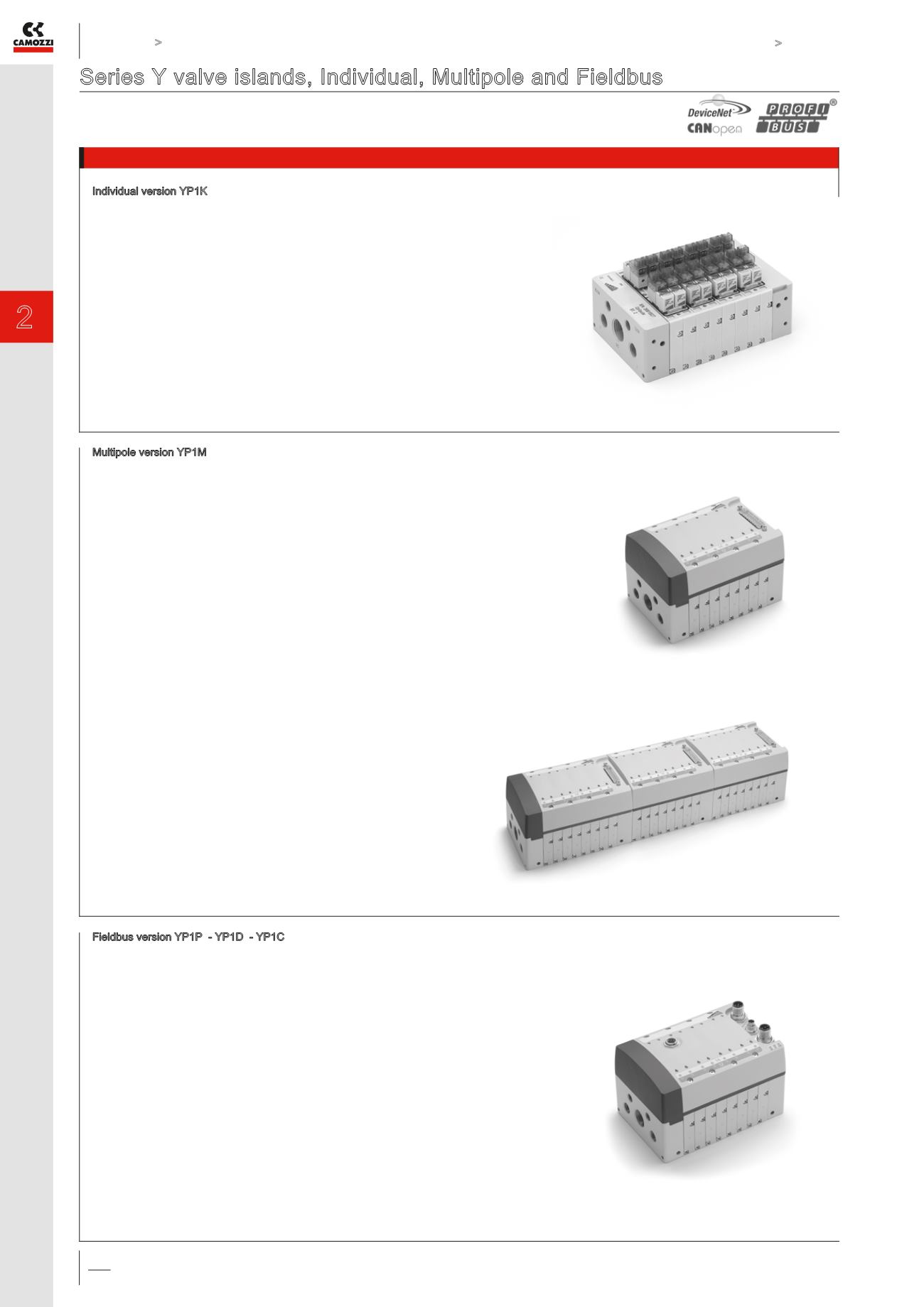

Series Y valve islands, Individual, Multipole and Fieldbus
Valve islands with pneumatics and electronics integrated
Available versions: Individual, Multipole, Fieldbus (Profibus-DP, DeviceNet, CANopen)
Valve functions: 2x2/2, 2x3/2, 5/2, 5/3 CC
Individual version YP1K
The electrical connection is realised by means of single
connectors which are mounted on electro-pilots Series K.
The modules which compose the valve islands can be of
2, 4, 6 or 8 valve positions and they can be separated from
each other by different types of seals.
Although the number of valve positions can be unlimited,
it is recommended to insert an intermediate plate for
supplementary supply after every 8 positions.
The manual override and the signalling LED which are
used in this valve islands are the same which are traditionally
used on electro-pilots.
Valve islands with individual electrical connection
Multipole version YP1M
The modules which compose the valve islands can be of 2, 4, 6 or
8 valve positions and they can be separated from each other by
different types of seals.
The electronics commonly used in the fieldbus versions allow
the connection of the same expansion module on initial modules
using different Protocols.
The Multipole cover is available in three sizes, with 4, 6 or 8
valve positions. Every valve position can be freely equipped
with monostable or bistable valves.
It is possible to join many valve islands by placing an intermediate
plate for supplementary supply under the Sub-D plug of the
module which has to be connected.
The use of a plate for supplementary supply Mod. X allows
to have many Sub-D plugs on a sole structure.
It is possible to join several valve islands to create a sole structure
with as many Sub-D plugs as covers.
It is recommended to insert an intermediate plate for
supplementary supply after every 8 positions.
Valve islands with Multipole electrical connection
Multipole connection is possible
Fieldbus version YP1P - YP1D - YP1C
The initial module cover has always 8 valve positions.
The initial module only can be connected with Fieldbus
(Profibus-DP and other protocols) and 24V DC electrical supply.
Each initial module can accomodate up to 32 coils, which are present
in the initial or in the connected expansion modules, and 48 inlets.
It recognizes automatically the position of the coils assigning them an
address which follows a certain sequence.
Otherwise it is possible to set a specific address through the use of a PC.
It is recommended to insert an intermediate plate for supplementary
supply after every 8 positions.
Valve islands with electrical Fieldbus connection initial module
