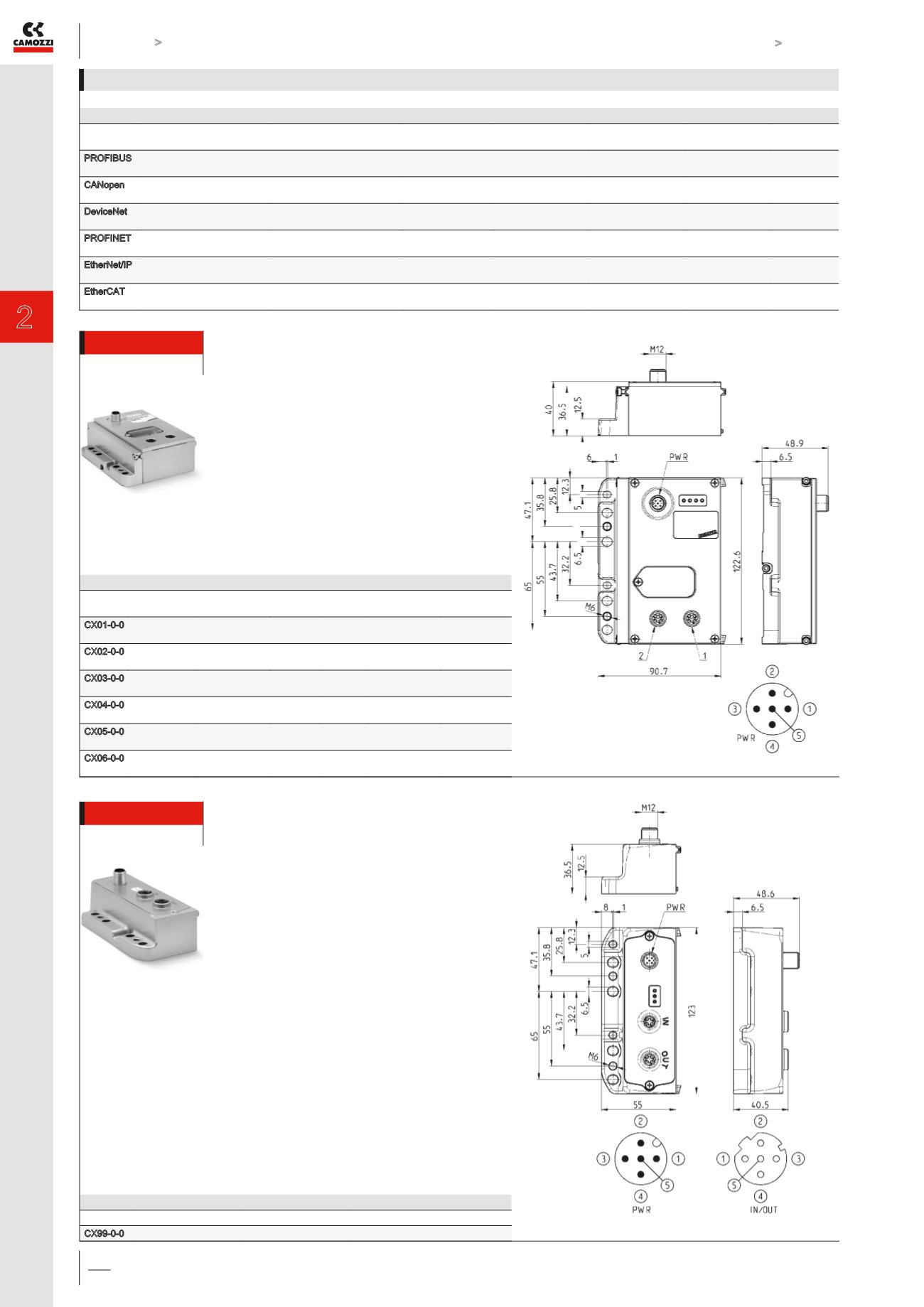

CONTROL
Products designed for industrial applications.
General terms and conditions for sale are available on
Protocol Max nr of nodes defined by the
protocol
Communication speed defined
by the protocol
Max number of I/O LED 1 Yellow-Green LED 2 Yellow-Green LED 3 Red-Green LED 4 Red
PROFIBUS 32/127 9,6 kBit/s per 1000 m
12 Mbit/s per < 100 m
1024 Input
1024 Output
absent Green
RUN
Red
DIA
Red
BF
CANopen 127 125 kBit/s 500 m
1 Mbit/s per 4 m
1024 Input
1024 Output
absent Green
IO
Red
DIA
Red
BF
DeviceNet 64 125 kBit/s 500 m
500 kbit/s per 100 m
1024 Input
1024 Output
absent Green
RUN
Red
NS
Red
MF
PROFINET unlimited 100 Mbit/s per 100 m 1024 Input
1024 Output
Yellow
LNK1
Yellow
LNK2
Green
PWR
Red
DIA
EtherNet/IP unlimited 100 Mbit/s per 100 m 1024 Input
1024 Output
Yellow
LNK1
Yellow
LNK2
Green
PWR
Red
DIA
EtherCAT unlimited 100 Mbit/s per 100 m 1024 Input
1024 Output
Yellow
LNK1
Yellow
LNK2
Green
PWR
Red
DIA
Fieldbus protocols - Technical data
CPU Module - pin configuration
Mod. Coding
reference
Fieldbus Protocol 2 1 Bus-IN connector Bus-OUT
connector
CX01-0-0 01 PROFIBUS Bus-IN Bus-OUT M12 B 5 pin male M12 B 5 pin
female
CX02-0-0 02 DeviceNet Bus-IN Bus-OUT M12 A 5 pin male M12 A 5 pin
female
CX03-0-0 03 CANopen Bus-IN Bus-OUT M12 A 5 pin male M12 A 5 pin
female
CX04-0-0 04 EtherNet/IP Bus-OUT Bus-IN M12 D 5 pin
female
M12 D 5 pin
female
CX05-0-0 05 EtherCAT Bus-OUT Bus-IN M12 D 5 pin
female
M12 D 5 pin
female
CX06-0-0 06 PROFINET Bus-OUT Bus-IN M12 D 5 pin
female
M12 D 5 pin
female
Expansion Module - pin configuration
Mod. Coding reference Fieldbus Protocol Bus-IN and Bus-OUT connector
CX99-0-0 99 Subnet expansion M12 D 5 pin female
Note: to connect the Expansion with the subnet, we
recommend the use of cables Mod. CS-SB04HB-...
or CS-SC04HB-...
CONTROL > Series CX multi-serial module
