Series Y valve islands

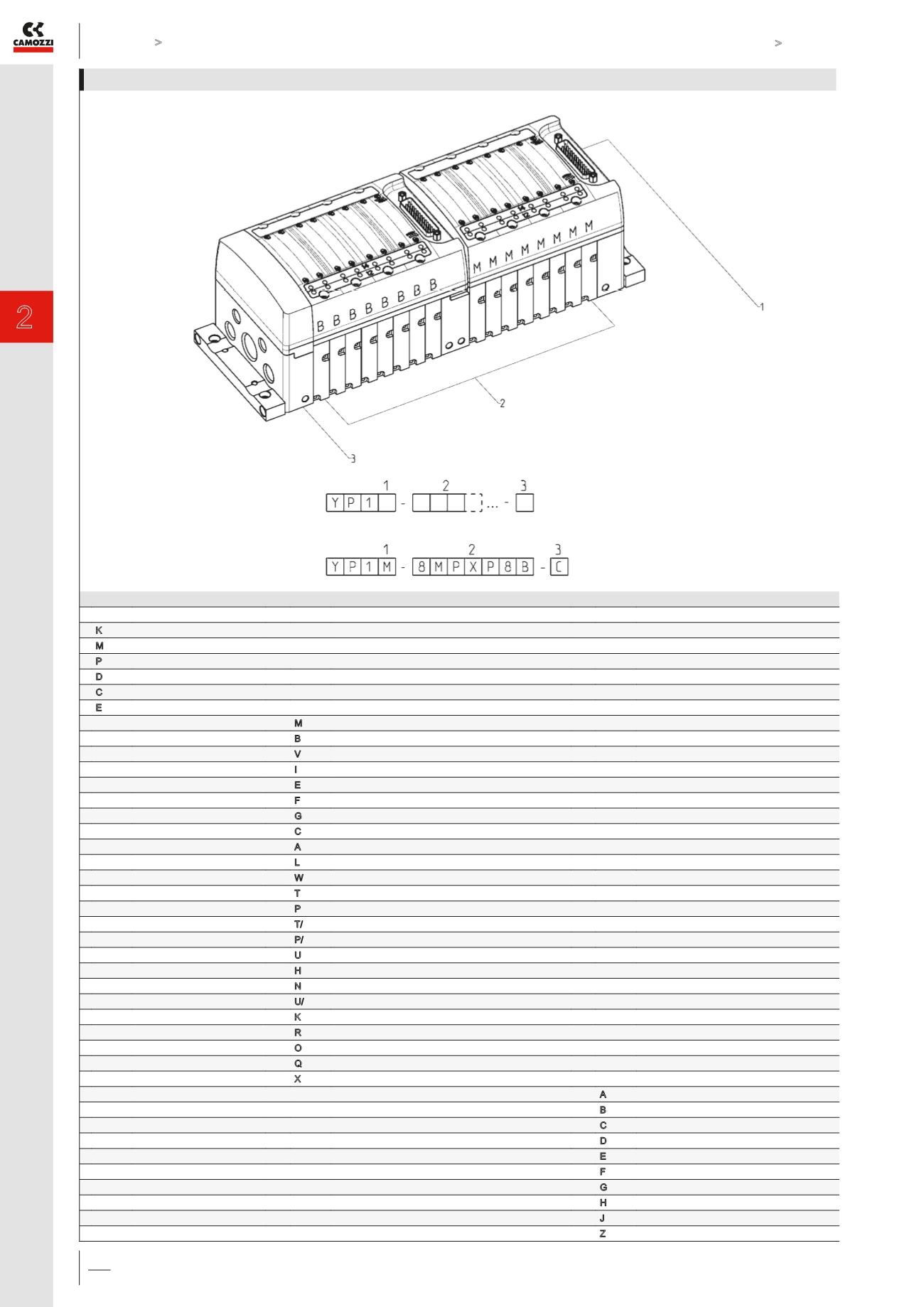

CODING
(1) Code Type of electrical connection (2) Code
Type of valve
(3) Code
Type of terminal plates
K
Individual
-
-
M
Multipole (PNP)
-
-
P
Profibus-Dp
-
-
D
DeviceNet
-
-
C
CANopen
-
-
E
Expansion
-
-
-
M
5/2 Monostable
-
-
B
5/2 Bistable
-
-
V
5/3 CC
-
-
I
2 x 2/2 1 NO + 1 NC
-
-
E
2 x 2/2 NC
-
-
F
2 x 2/2 NO
-
-
G
2 x 3/2 1 NO + 1 NC
-
-
C
2 x 3/2 NC
-
-
A
2 x 3/2 NO
-
-
L
Free position
-
-
W
Additional supply module from 2 and 4
-
-
T
Diaphragm seal (modules separation)
-
-
P
Through seal (modules separation)
-
-
T/
Diaphragm seal (modules and cover separation)
-
-
P/
Through seal (modules and cover separation)
-
-
U
Diaphragm seal 3/5 opened
-
-
H
Diaphragm seal 3/5-11 opened
-
-
N
Diaphragm seal 1-11 opened
-
-
U/
Diaphragm seal 3/5 opened, modules and cover separ.
-
-
K
Module with 2 positions and 3/5-11 closed
-
-
R
Module with 2 positions and 3/5-1-11 closed
-
-
O
Module with 2 positions and 1-11 closed
-
Q
Module with 2 positions and 3/5 closed
-
-
X
Additional supply module
-
-
-
A
in common 1/11 - 12/14 individual 82/84 - 3/5
-
-
B
in common 1/11 individual 12/14 - 82/84 - 3/5
-
-
C
individual 1/11 - 12/14 - 82/84 - 3/5
-
-
D
in common 1/11 - 12/14 individual 82/84 - 3/5
-
-
E
in common 1/11 individual 12/14 - 82/84 - 3/5
-
-
F
individual 1/11 - 12/14 - 82/84 - 3/5
-
-
G
in common 1/11 - 12/14 individual 82/84 - 3/5
-
-
H
in common 1/11 individual 12/14 - 82/84 - 3/5
-
-
J
individual 1/11 - 12/14 - 82/84 - 3/5
-
-
Z
modules without terminal plate
