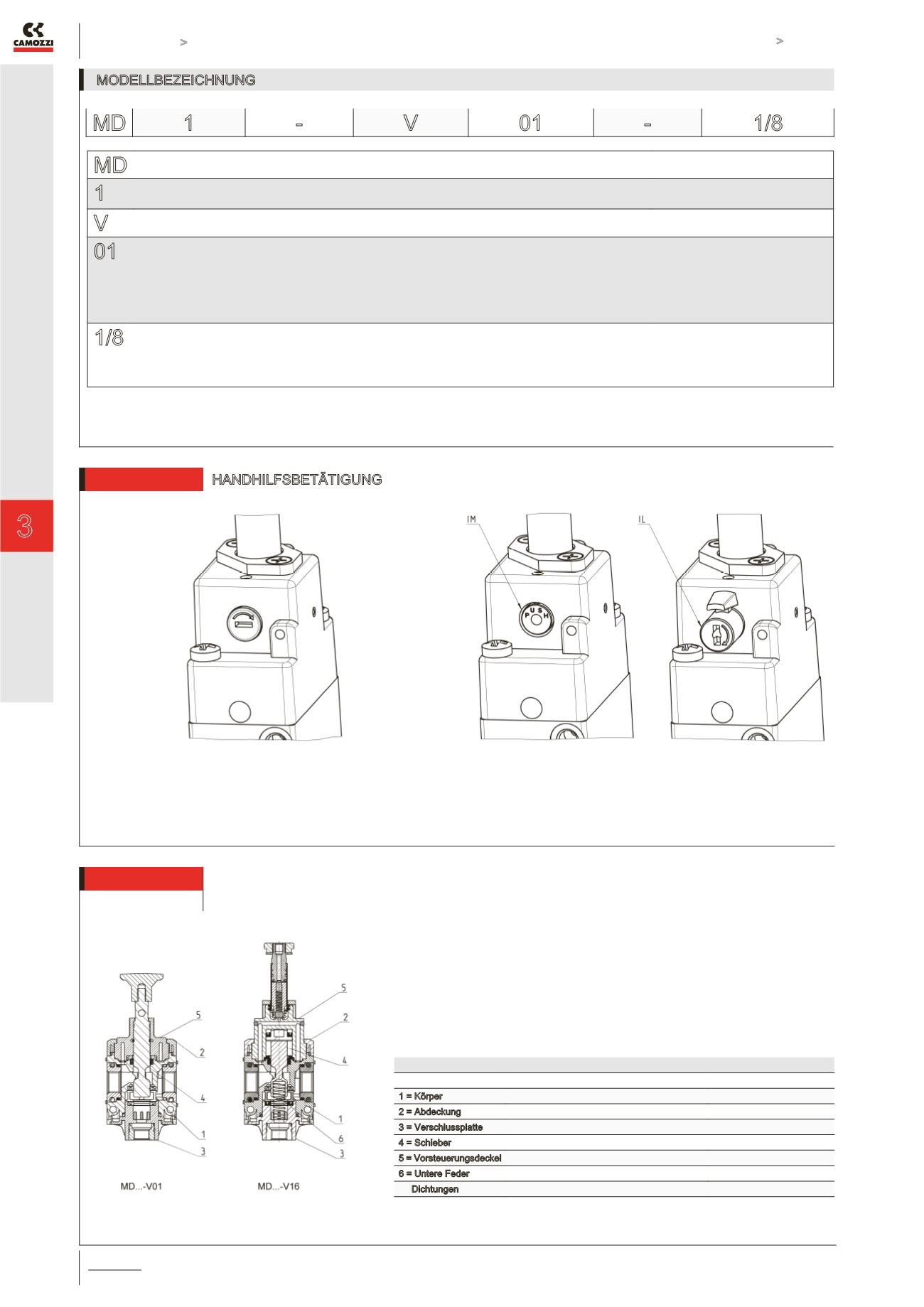

Absperrventil 3/2-Wege Serie MD
AUFBEREITEN >
KATALOG
>
Version 8.8
/3.35.02
3
AUFBEREITEN
MODELLBEZEICHNUNG
MD
SERIE
1
BAUBREITE:
1 = 42 mm
V
3/2-WEGEVENTIL
01
BAUART:
01 = manuell betätigt, abschließbar
16 = elektropneumatisch betätigt, Handhilfsbetätigung Schlitzschraube+bistabil
16IL = elektropneumatisch betätigt, Handhilfsbetätigung, Handhebel, bistabil
16IM = elektropneumatisch betätigt, Drucktaster, monostabil
16IT = elektropneumatisch betätigt, ohne Handhilfsbetätigung
36 = pneumatisch betätigt
1/8
ANSCHLUSS (IN - OUT):
= ohne Anschluss
1/8 = G1/8 6 = Ø 6 mm Steckanschluss
1/4 = G1/4 8 = Ø 8 mm Steckanschluss
3/8 = G3/8 10 = Ø 10 mm Steckanschluss
Bei unterschiedlichen Einsätzen bei Ein-/Ausgang bitte beide Größen angeben.
Bsp.: MD1-V01-1/4-1/8
MD 1
-
V
01
-
1/8
6512
HANDHILFSBETÄTIGUNG
Schlitzschraube = bistabil
IL = Handhebel = bistabil
IM = Drucktaster = monostabil
WERKSTOFFE DER BAUTEILE
BAUTEILE
WERKSTOFFE
1 = Körper
Polyamid
2 = Abdeckung
Polyamid
3 = Verschlussplatte
Polyamid
4 = Schieber
Aluminium eloxiert
5 = Vorsteuerungsdeckel
Polyamid
6 = Untere Feder
Edelstahl
Dichtungen
NBR
Absperrventile 3/2-Wege Serie MD - Werkstoffe
