Modell- und Maßänderungen vorbehalten.
Unsere AGBs finden Sie auf
www.camozzi.de.
1
Zylinder Serie 63
ANTREIBEN >
KATALOG
>
Version 8.8
/1.28.06
1
ANTREIBEN

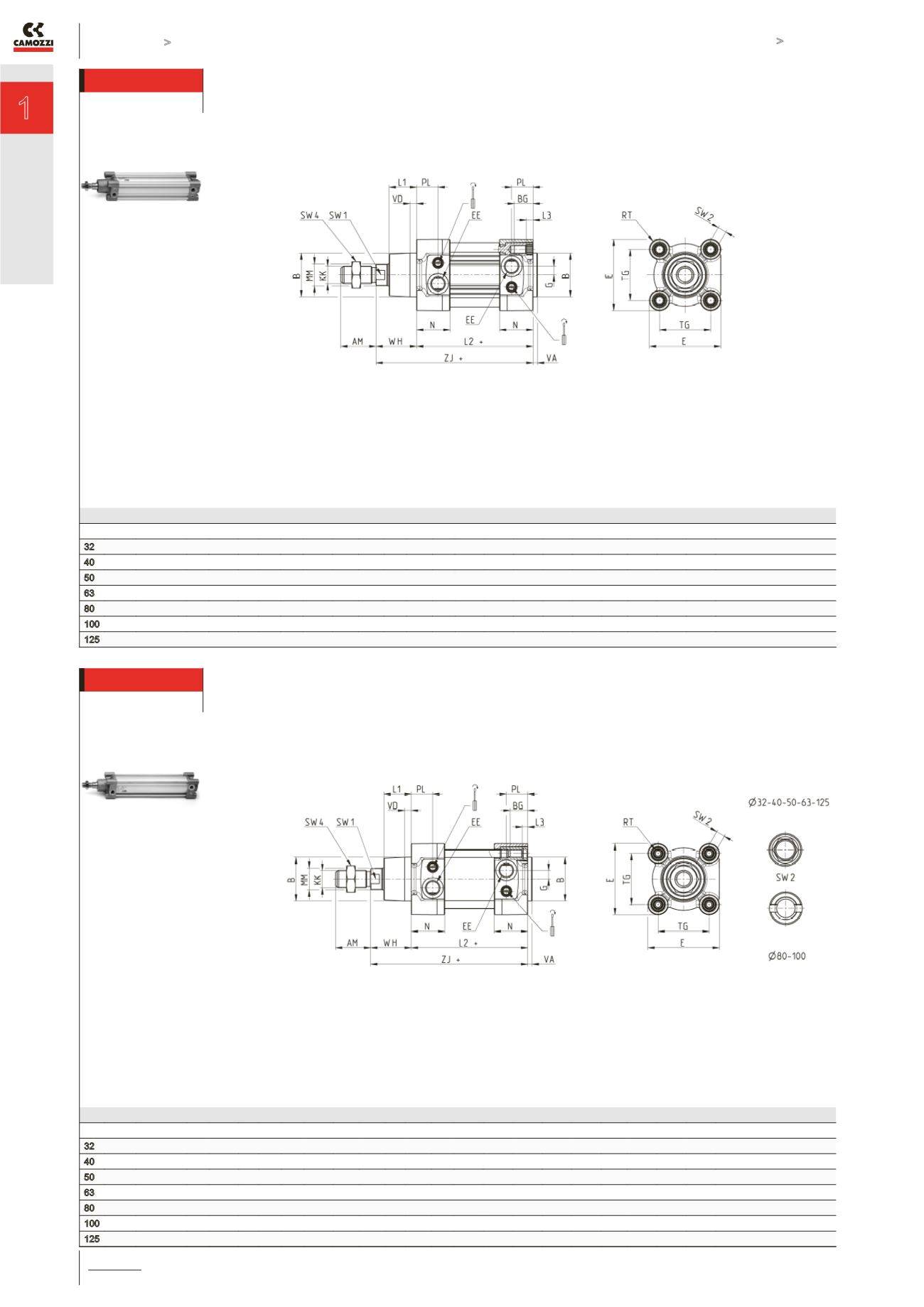

Zylinder Serie 63 - Profilrohr doppeltwirkend
Versionen: 63MP2... und 63LP2...
PRODUKTÜBERSICHT
Ø ØMM KK ØB PL L1 AM VA EE WH L2 L3 ZJ VD N BG RT G TG E SW1 SW2 SW4 Dämpfungshub vorn/hinten
32 12 M10x1.25 30 18.5 18 22 4 G1/8 26 94 5.5 120 5 27 16 M6 5 32.5 47 10 6 17
17
40 16 M12x1.25 35 19 21 24 4 G1/4 30 105 5.5 135 5 30 16 M6 5 38 55 13 6 19
18
50 20 M16x1.5 40 19.5 25 32 4 G1/4 37 106 6 143 6 30.5 16 M8 8 46.5 65 17 8 24
20
63 20 M16x1.5 45 24 26 32 4 G3/8 37 121 6 158 6 37.5 16 M8 8 56.5 75 17 8 24
22
80 25 M20x1.5 45 23.5 30 40 4 G3/8 46 128 0 174 7 37 19 M10 8 72 93 22 6 30
25
100 25 M20x1.5 55 24 35 40 4 G1/2 51 138 0 189 7 39.5 19.5 M10 8 89 110 22 6 30
26
125 32 M27x2 60 28 42 54 6 G1/2 65 160 6 225 8 44 23 M12 10.5 110 135 27 12 41
33
+ Hub
Zylinder Serie 63 - Rundrohr doppeltwirkend
Versionen: 63MT2... und 63LT2...
PRODUKTÜBERSICHT
Ø ØMM KK ØB PL L1 AM VA EE WH L2 L3 ZJ VD N BG RT G TG E SW1 SW2 SW4 Dämpfungshub vorn/hinten
32 12 M10x1.25 30 18.5 18 22 4 G1/8 26 94 5 120 5 27 16 M6 5 32.5 47 10 6 17
17
40 16 M12x1.25 35 19 21 24 4 G1/4 30 105 5 135 5 30 16 M6 5 38 55 13 6 19
18
50 20 M16x1.5 40 19.5 25 32 4 G1/4 37 106 5 143 6 30.5 16 M8 8 46.5 65 17 8 24
20
63 20 M16x1.5 45 24 26 32 4 G3/8 37 121 5 158 6 37.5 16 M8 8 56.5 75 17 8 24
22
80 25 M20x1.5 45 23.5 30 40 4 G3/8 46 128 0 174 7 37 19 M10 8 72 93 22 *
30
25
100 25 M20x1.5 55 24 35 40 4 G1/2 51 138 0 189 7 39.5 19.5 M10 8 89 110 22 *
30
26
125 32 M27x2 60 28 42 54 6 G1/2 65 160 6 225 8 44 23 M12 10.5 110 135 27 12 41
33
+ Hub
Hinweis zur Tabelle
* = Demontagewerkzeug
80-62/8C (siehe Zubehör)
