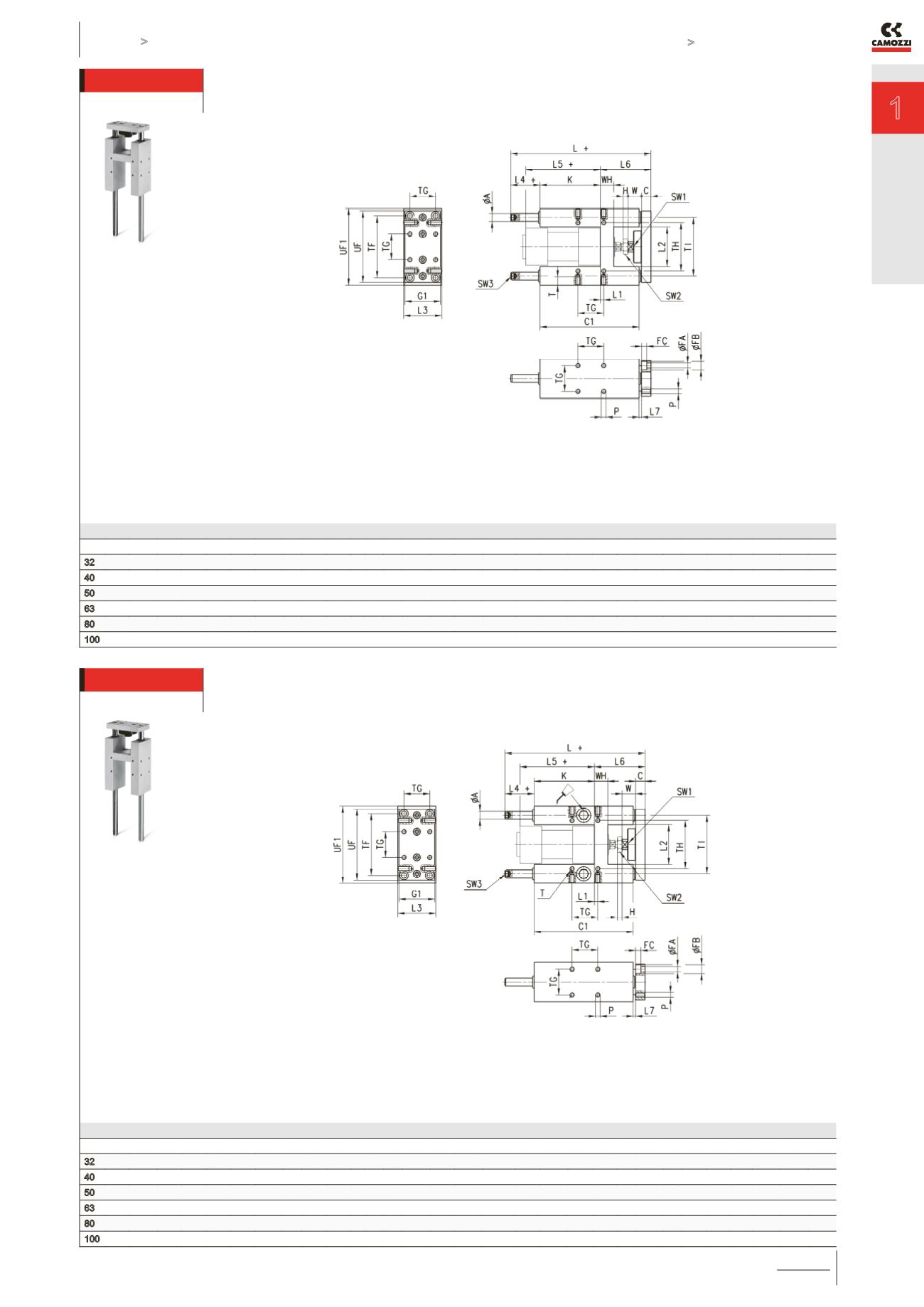

Linearführungen Serie 45
KATALOG
1
/1.35.06
1
>
Version 8.8
ANTREIBEN >
ANTREIBEN
Linearführungen Mod. 45NHT
Hinweis: Diese Führungen sind verwendbar f. Zylinder Serie 60 + 61 + 62 DIN/ISO 6431/VDMA ø 32, 40, 50,
63, 80, 100 mm und benötigen keine Schmierung; anwendbare Lasten siehe Diagramm Nr. 3.
PRODUKTÜBERSICHT
Ø TF TG TH TI
UF G1 UF1
Ø
A WH C1 H W C K L L1 L2 L3 L4 L5 L6 L7 P T
Ø
FA
Ø
FB FC SW1 SW2 SW3
32 78 32.5 61 74 90 45 97 12 17 125 6 17 12 76 177 4.3 50.2 50 37 94 64 3 M6 14 6.5 11 6.8 13 17 6
40 84 38 69 87 110 54 115 16 21 140 7 22 12 81 192 11 58.2 58 37 105 74 3 M6 14 6.5 11 6.8 15 19 6
50 100 46.5 85 104 130 63 137 20 26 149 8 26 15 78.5 205 19.8 70.2 70 37.5 106 89 3 M8 16 9 15 9 22 24 6
63 105 56.5 100 119 145 80 152 20 26 178 8 26 15 111 237 15.3 85.2 85 37 121 89 7 M8 16 9 15 9 22 24 6
80 130 72 130 148 180 100 189 25 34 195 9 32 20 128 280 21 105.4 105 42 128 110 23 M10 20 11 18 11 27 30 6
100 150 89 150 172 200 120 213 25 39 220 9 32 20 128 280 24.5 130.4 130 37 138 115 3 M10 20 11 18 11 27 30 6
Lieferumfang:
1 Befestigungsschraube
+ Hub
Linearführungen Mod. 45NHB
Hinweis: Diese Führungen sind verwendbar für Serie 60 + 61 + 62 DIN/ISO 6431/VDMA ø 32, 40, 50, 63, 80,
100 mm. Für Schmierung vorgesehene Schmiernippel verwenden; anwendbare Lasten siehe Diagramm Nr. 2.
PRODUKTÜBERSICHT
Ø TF TG TH TI
UF G1 UF1
Ø
A WH C1 H W C K L L1 L2 L3 L4 L5 L6 L7 P T
Ø
FA
Ø
FB FC SW1 SW2 SW3
32 78 32.5 61 74 90 45 97 12 17 125 6 17 12 76 177 4.3 50.2 50 37 94 64 3 M6 14 6.5 11 6.8 13 17 6
40 84 38 69 87 110 54 115 16 21 140 7 22 12 81 192 11 58.2 58 37 105 74 3 M6 14 6.5 11 6.8 15 19 6
50 100 46.5 85 104 130 63 137 20 26 149 8 26 15 78,5 237 19.8 70.2 70 69.5 106 89 3 M8 16 9 15 9 22 24 6
63 105 56.5 100 119 145 80 152 20 26 178 8 26 15 111 237 15.3 85.2 85 37 121 89 7 M8 16 9 15 9 22 24 6
80 130 72 130 148 180 100 189 25 34 195 9 32 20 128 280 21 105.4 105 42 128 110 23 M10 20 11 18 11 27 30 6
100 150 89 150 172 200 120 213 25 39 220 9 32 20 128 280 24.5 130.4 130 37 138 115 3 M10 20 11 18 11 27 30 6
Lieferumfang:
1 Befestigungsschraube
+ Hub
