Modell- und Maßänderungen vorbehalten.

Unsere AGBs finden Sie auf

www.camozzi.de

.

2

Wegeventile Serie 3

ANSTEUERN >

KATALOG

>

Version 8.8

/2.10.10

2

ANSTEUERN

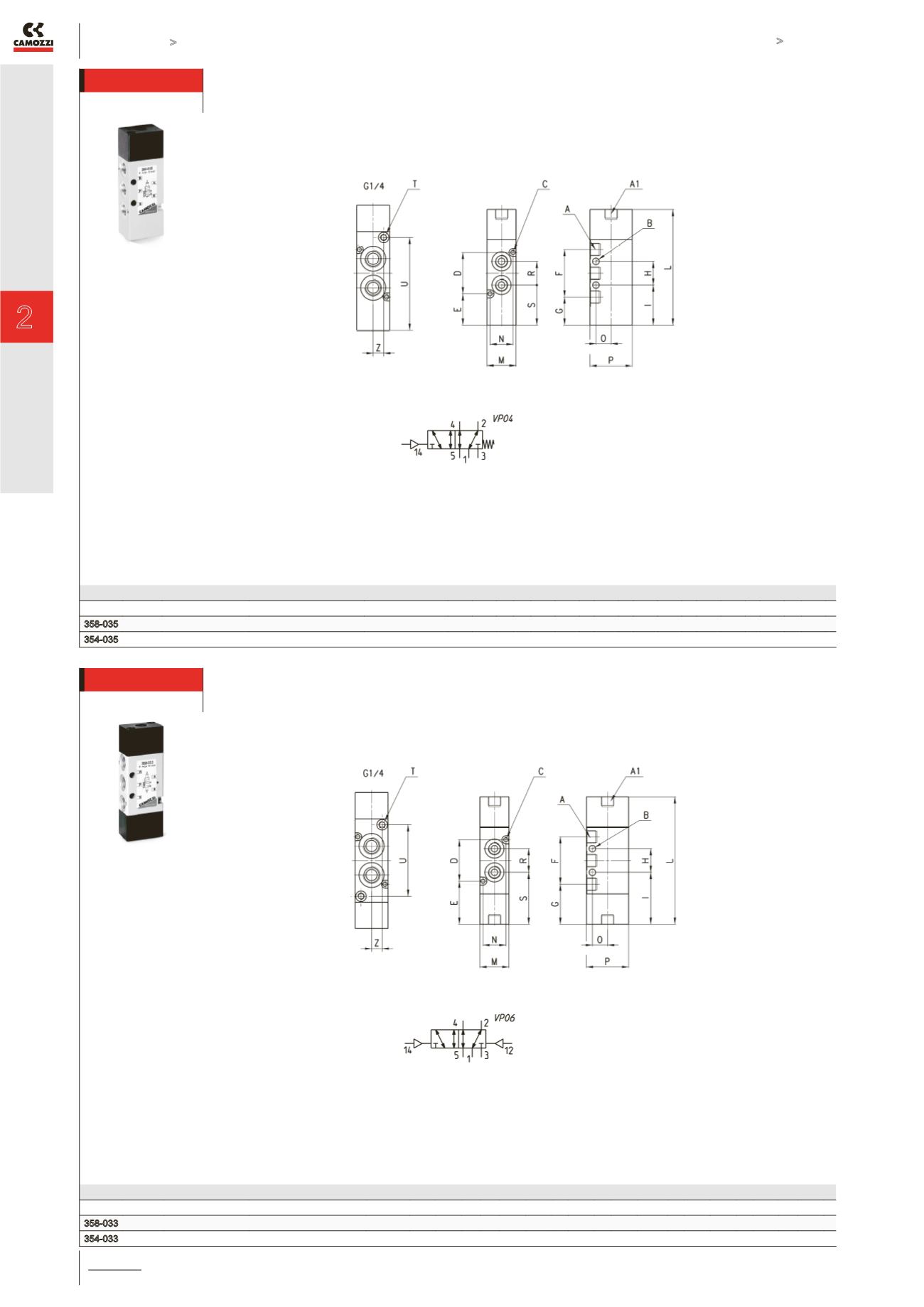

5/2-Wegeventil, Anschluss G1/8” , G1/4”, monost. Mod. 354.../358...

Montageart: Einzel-/Grundplattenventil

PRODUKTÜBERSICHT

Mod.

Funktion Durchfluss (NL/min) P.min Vorsteuerdruck (bar) Betriebsdruck (bar) A A1 B C D E F G H I

L M N 0 P S T U Z

358-035 5/2

700

2,5

-0,9 ÷ 10 G1/8 G1/8 5 3,2 31,4 23,8 36 21,4 18 30,4 87,8 22 17,4 11,5 32 30,4 -

- -

354-035 5/2

1300

3

-0,9 ÷ 10 G1/4 - 4,1 3,2 36 25,4 44 21,4 22 30,4 95 25 21 16 40 32,4 M5 70,5 8

5/2-Wegeventil, Anschluss G1/8”, G1/4”, bistabil Mod. 354.../358...

Montageart: Einzel-/Grundplattenventil

PRODUKTÜBERSICHT

Mod.

Funktion Durchfluss (NI/min) P.min Vorsteuerdruck (bar)

A A1 B C D E F G H I

L M N O P S T U Z

358-033 5/2

700

1,5

-0,9 ÷ 10 G1/8 G1/8 5 3,2 31,4 32,8 36 30,4 18 39,4 96,8 22 17,4 11,5 32 39,4 -

-

-

354-033 5/2

1300

2,5

-0,9 ÷ 10 G1/4 - 4,1 3,2 36 33,7 44 29,7 22 40,7 103,3 25 21 16 40 40,7 M5 54,3 8
