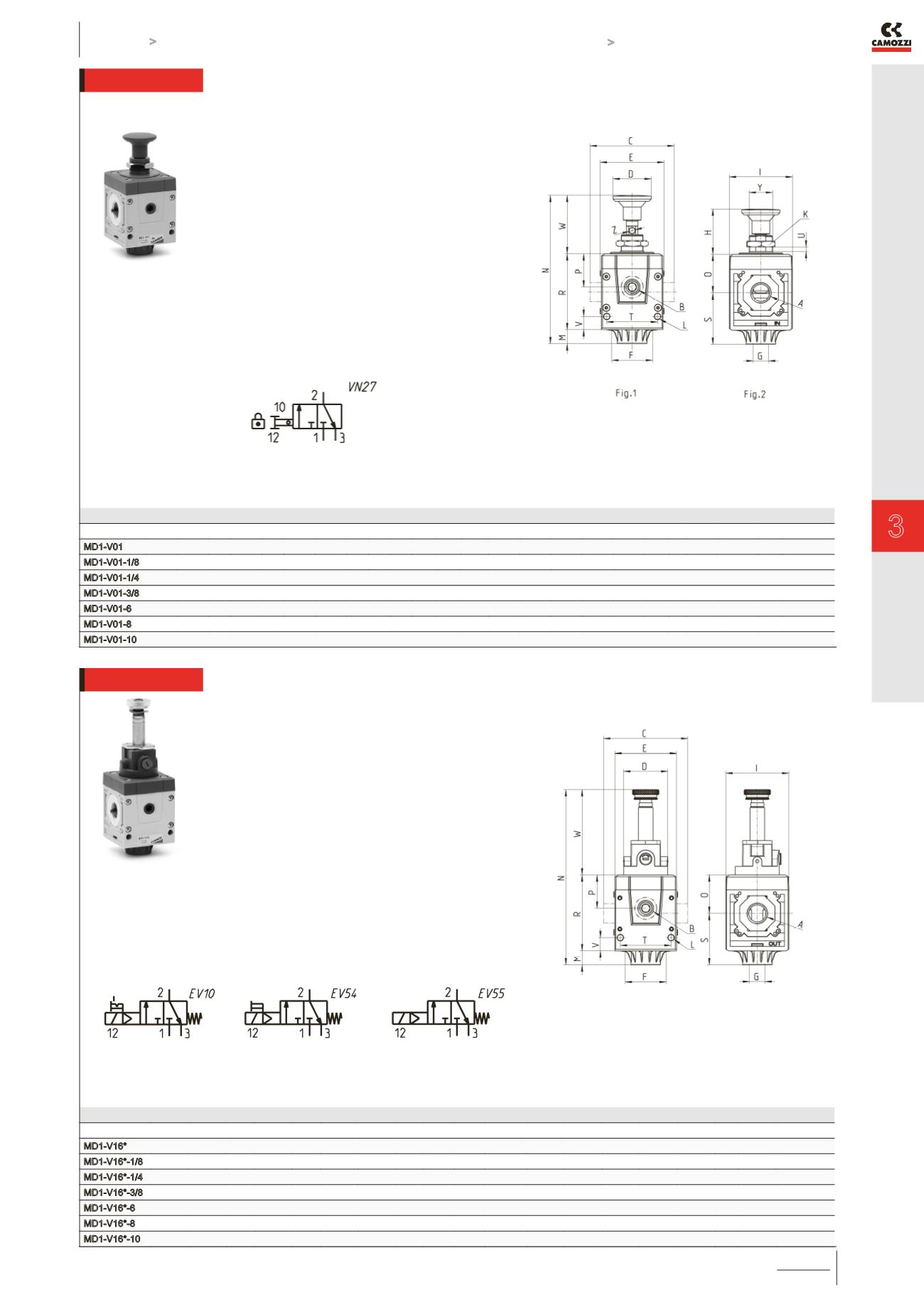

Valvole intercettazione 3/2 vie Serie MD

CATALOGO

/3.35.05

Release 8.8

TRATTAMENTO >

TRATTAMENTO

Fig. 1 = valvola chiusa

Fig. 2 = valvola aperta

Valvole ad azionamento manuale - ingombri

Mod.

A B C D E F G H I

K L M N O P R S T U V W Y Z Peso (Kg)

MD1-V01

G1/8 42 Ø26 42 28.5 G1/8 31 43 19 Ø4 9.5 101 26.2 22.7 51.7 35.1 34.6 0-8 9 39.8 M16X1 Ø4 0.2

MD1-V01-1/8 G1/8 G1/8 42 Ø26 42 28.5 G1/8 31 43 19 Ø4 9.5 101 26.2 22.7 51.7 35.1 34.6 0-8 9 39.8 M16X1 Ø4 0.2

MD1-V01-1/4 G1/4 G1/8 42 Ø26 42 28.5 G1/8 31 43 19 Ø4 9.5 101 26.2 22.7 51.7 35.1 34.6 0-8 9 39.8 M16X1 Ø4 0.2

MD1-V01-3/8 G3/8 G1/8 42 Ø26 42 28.5 G1/8 31 43 19 Ø4 9.5 101 26.2 22.7 51.7 35.1 34.6 0-8 9 39.8 M16X1 Ø4 0.2

MD1-V01-6 Ø6 G1/8 47 Ø26 42 28.5 G1/8 31 43 19 Ø4 9.5 101 26.2 22.7 51.7 35.1 34.6 0-8 9 39.8 M16X1 Ø4 0.2

MD1-V01-8 Ø8 G1/8 62 Ø26 42 28.5 G1/8 31 43 19 Ø4 9.5 101 26.2 22.7 51.7 35.1 34.6 0-8 9 39.8 M16X1 Ø4 0.2

MD1-V01-10 Ø10 G1/8 67 Ø26 42 28.5 G1/8 31 43 19 Ø4 9.5 101 26.2 22.7 51.7 35.1 34.6 0-8 9 39.8 M16X1 Ø4 0.2

* = aggiungere:

- IL per la versione con intervento manuale bistabile

a levetta (EV10)

- IM per la versione con intervento manuale

monostabile (EV54)

- IT per la versione senza intervento manuale (EV55)

Valvole ad azionamento elettropneumatico - ingombri

Mod.

B C D E F

G I

L M N O P

R S

T V W Peso (Kg)

MD1-V16*

G1/8 42 Ø30 42 28.5 G1/8 43 Ø4 9.5 119.4 26.2 22.7 51.7 35.1 34.6 9 58.2

0.2

MD1-V16*-1/8 G1/8 G1/8 42 Ø30 42 28.5 G1/8 43 Ø4 9.5 119.4 26.2 22.7 51.7 35.1 34.6 9 58.2

0.2

MD1-V16*-1/4 G1/4 G1/8 42 Ø30 42 28.5 G1/8 43 Ø4 9.5 119.4 26.2 22.7 51.7 35.1 34.6 9 58.2

0.2

MD1-V16*-3/8 G3/8 G1/8 42 Ø30 42 28.5 G1/8 43 Ø4 9.5 119.4 26.2 22.7 51.7 35.1 34.6 9 58.2

0.2

MD1-V16*-6

Ø6 G1/8 47 Ø30 42 28.5 G1/8 43 Ø4 9.5 119.4 26.2 22.7 51.7 35.1 34.6 9 58.2

0.2

MD1-V16*-8

Ø8 G1/8 62 Ø30 42 28.5 G1/8 43 Ø4 9.5 119.4 26.2 22.7 51.7 35.1 34.6 9 58.2

0.2

MD1-V16*-10 Ø10 G1/8 67 Ø30 42 28.5 G1/8 43 Ø4 9.5 119.4 26.2 22.7 51.7 35.1 34.6 9 58.2

0.2
