Solenoids CONTROL > C_FLUID CONTROL CATALOGUE > 2018
109
CONTROL

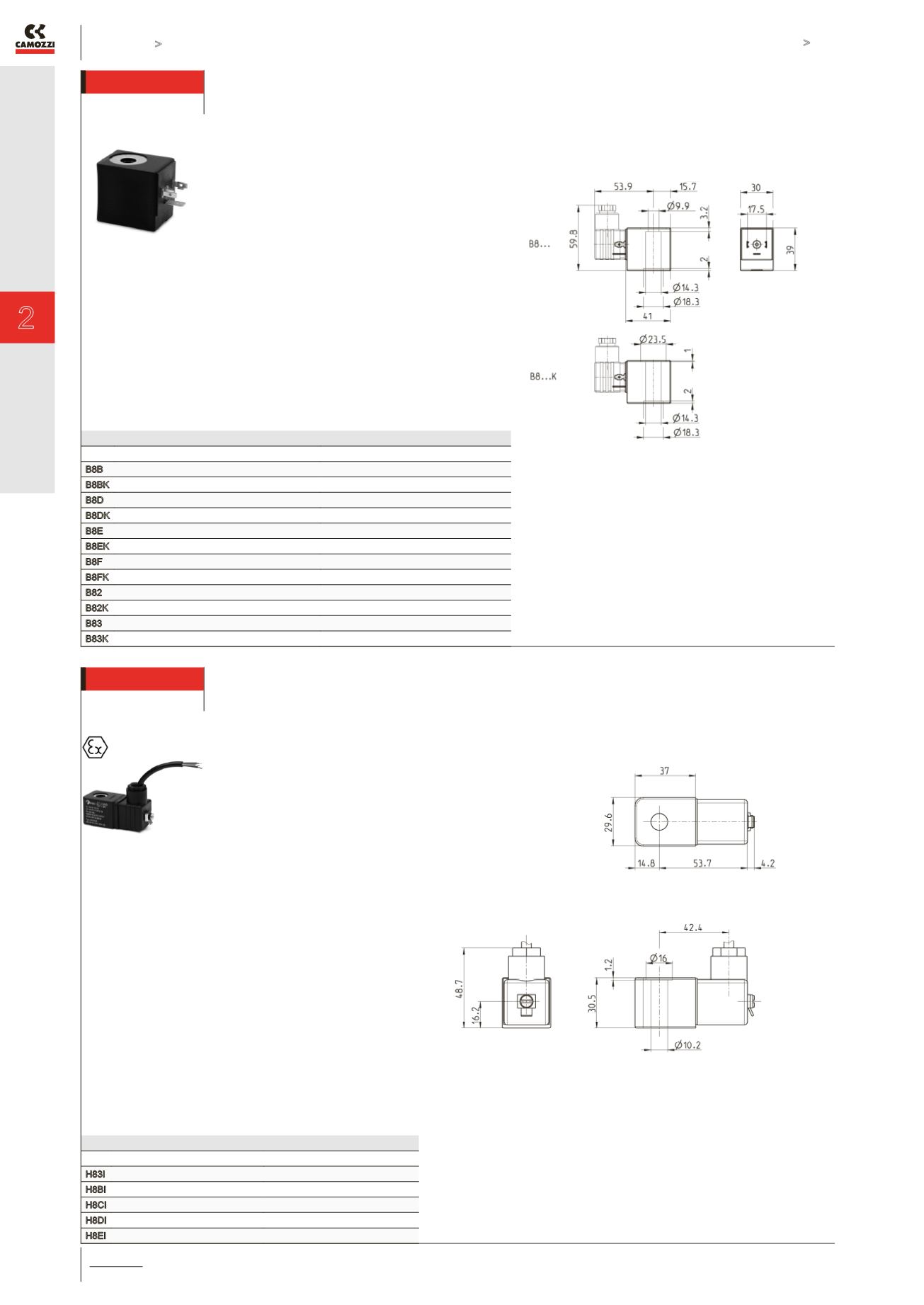

Solenoids Mod. B8...
Mod. Solenoid voltage Power absorption
B8B 24 V - 50 Hz 15 VA
B8BK 24 V - 50 Hz 15 VA
B8D 110 V - 50/60 Hz 15 VA
B8DK 110 V - 50/60 Hz 15 VA
B8E 220/230 V - 50/60 Hz 15 VA
B8EK 230 V - 50/60 Hz 15 VA
B8F 220/230 V - 50/60 Hz 21 VA
B8FK 220/230 V - 50/60 Hz 21 VA
B82 12 V - DC 19 W
B82K 12 V - DC 19 W
B83 24 V - DC 19 W
B83K 24 V - DC 19 W
Electrical connection: bipolar plus earth
Norm: DIN EN 175 301-803-A
Solenoid material: PA-MXD6
The B8*K models can be used only with some
solenoid valves Series CFB
(Mod. CFB-D1..., 2/2 NO).
Further details on page 2/1.30.03.
Solenoid Mod. H8.. for potentially explosive ambients
Certification in compliance with
EN 60079-0 EN 60079-18
ATEX :
II 2G Ex mb IIC T4 Gb
II 2D Ex mb IIIC T135°C Db
I M2 Ex mb I Mb
INERIS 06ATEX0002X
IECEx :
Ex mb IIC T4 Gb
Ex mb IIIC T135°C Db
Ex mb I Mb
IECEx INE 15.0053X
Mod. Solenoid voltage Power absorption
H83I 24 V - DC 5.3 W
H8BI 24 V - 50/60 Hz 5.3 W
H8CI 48 V - 50/60 Hz 5.3 W
H8DI 110 V - 50/60 Hz 5.3 W
H8EI 230 V - 50/60 Hz 5.3 W
For Series NA use plate mod.
NA54-PC.
Temperature class/Max surface temperature: T4/135°C
Environment temperature: -20°C + 40°C
Connection: tripolar cable 3 m (other lenghts on request)
Incapsulating material: self-extinguishing PA.
