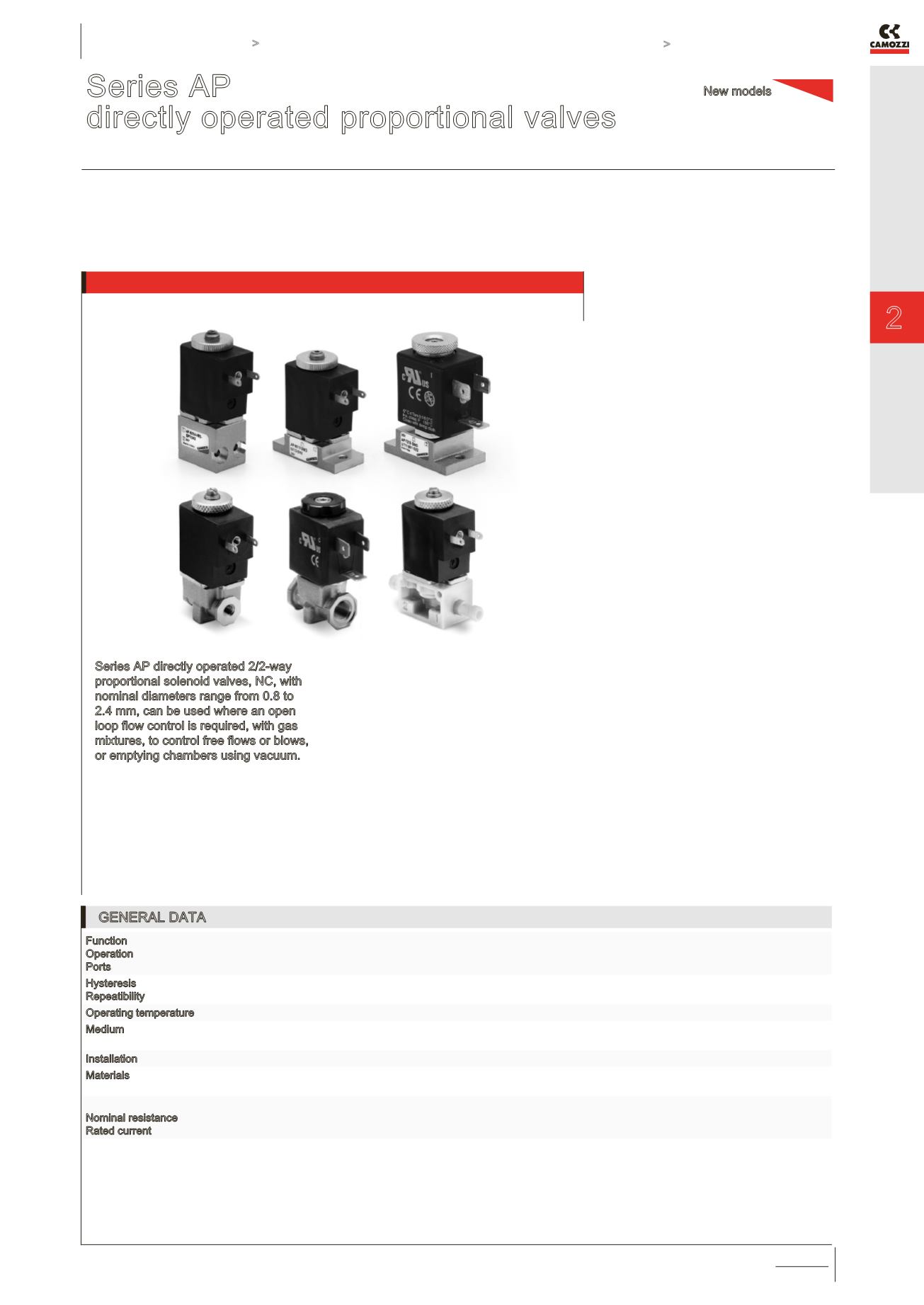

Series AP
directly operated proportional valves
2/2-way proportional valves, NC
Sizes: 16 - 22 mm
Series AP directly operated 2/2-way
proportional solenoid valves, NC, with
nominal diameters range from 0.8 to
2.4 mm, can be used where an open
loop flow control is required, with gas
mixtures, to control free flows or blows,
or emptying chambers using vacuum.
Series AP proportional valves have
been manufactured to optimize and
reduce friction and stick-slip effects. The
output flow is proportional to the control
signal. As they can work also in vacuum,
a minimum working pressure is not
required.
» » PWM or current operation
»
» Open loop flow control
» » Also suitable for
use with vacuum
Several versions available:
» » with body in PVDF
(size 16mm only),
»
» with rear flanged bodies
» » with lower flanged bodies,
» » suitable for use with oxygen
»
» Seals in FKM and NBR
GENERAL DATA
Function
Operation
Ports
2/2 NC
proportional directly operated
M5 - G1/8 - with rear flanges - with lower flanges
Hysteresis
Repeatibility
Size 16mm: 12% FS - Size 22mm: 10% FS
Size 16mm: 7% FS - Size 22mm: 7% FS
Operating temperature 0 ÷ 60°C
Medium filtered compressed air, unlubricated, according to ISO 8573-1 class 3.4.3, inert gas.
All the valves are suitable for use with oxygen.
Installation any position
Materials body = brass / PVDF (for size 16mm only)
seals = NBR and FKM
Nominal resistance
Rated current
GP7 GPH U711 U712
193 ohm 48 ohm 85 ohm 22 ohm
125 mA 250 mA 271 mA 542 mA
NOTE: Having a counterpressure on the outlet connection of at least 25% of the inlet pressure ensures the good functioning of the valve and improves its
performance. Example: with inlet Pressure = 1 bar on the outlet connection, a min. counterpressure of 250 mbar is recommended.
New models
