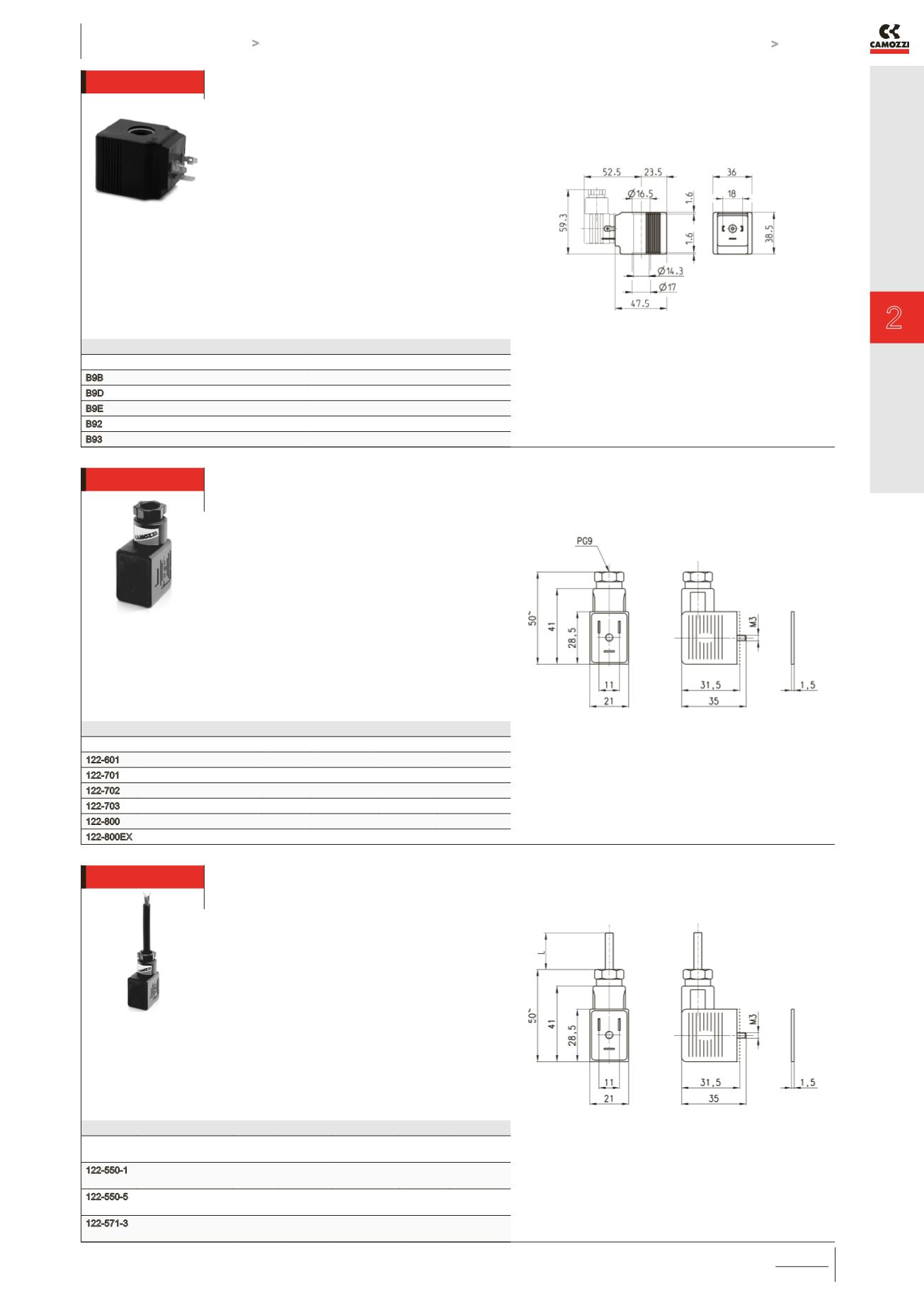

Solenoids Mod. B9...
Electrical connection: bipolar plus earth
Norm: DIN EN 175 301-803-A
Solenoid material: PA-MXD6
Mod. Solenoid voltage Power absorption
B9B 24 V - 50 Hz 29 VA
B9D 110 V - 50/60 Hz 29 VA
B9E 230 V - 50 Hz 29 VA
B92 12 V - DC 30 W
B93 24 V - DC 30 W
Connectors Mod. 122-... DIN EN 175 301-803-B
For solenoids Mod. U7/U7*EX, G7 and B7
Mod. 122-800EX:
for ATEX certified solenoids mod. U7*EX, with anti-
screwing off screw mod. TORX.
Mod. description colour working voltage cable holding tightening torque
122-601 connector, diode + Led transparent 10/50 V DC PG9 0.5 Nm
122-701 connector, varistor + Led transparent 24 V AC/DC PG9 0.5 Nm
122-702 connector, varistor + Led transparent 110 V AC/DC PG9 0.5 Nm
122-703 connector, varistor + Led transparent 230 V AC/DC PG9 0.5 Nm
122-800 connector, without electronics black - PG9 0.5 Nm
122-800EX connector, without electronics black - PG9 0.5 Nm
Connectors Mod. 122-5... DIN EN 175 301-803-B with cable
For solenoids Mod. U7/U7*EX, G7 and B7
Mod. description colour working
voltage
cable length
[ L ]
cable
holding
tightening
torque
122-550-1 moulded cable, without
electronics
black - 1000 mm - 0.5 Nm
122-550-5 moulded cable, without
electronics
black - 5000 mm - 0.5 Nm
122-571-3 moulded cable, varistor
+ Led
black - 3000 mm - 0.5 Nm
