Series CP proportional solenoid valves CONTROL > C_FLUID CONTROL CATALOGUE > 2018
123
CONTROL

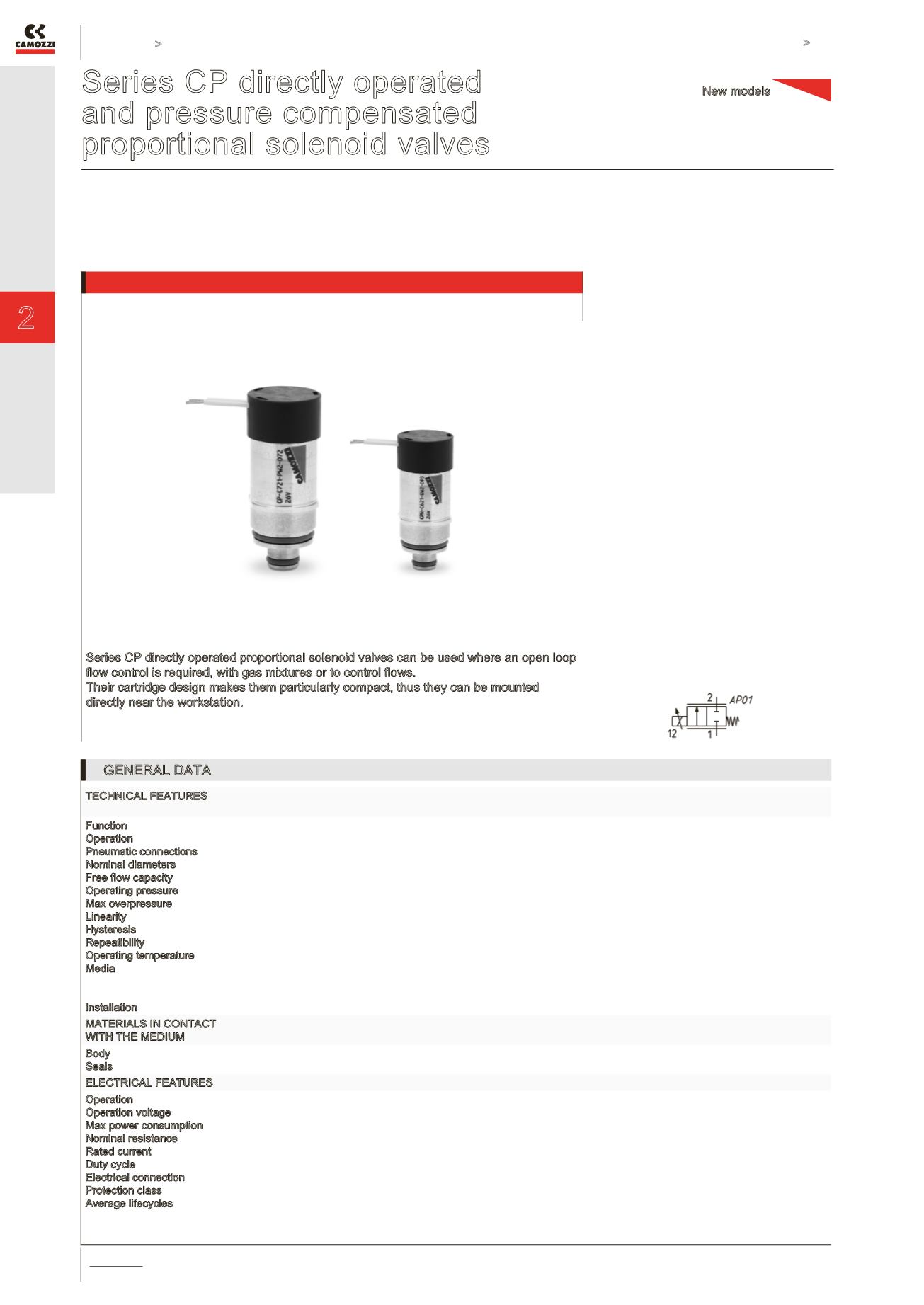

Series CP directly operated
and pressure compensated
proportional solenoid valves
Function: 2/2-way NC
Sizes: 16 and 20 mm
Series CP directly operated proportional solenoid valves can be used where an open loop
flow control is required, with gas mixtures or to control flows.
Their cartridge design makes them particularly compact, thus they can be mounted
directly near the workstation.
Series CP valves have been designed to
optimize dimensions and reduce friction
and stick-slip effects. The output flow is
proportional to the control signal.
Apart from the pressure compensated
version, these valves can work also in
vacuum. A minimum working pressure is
thus not required.
» » High flow and great precision
»
» Low hysteresis
» » Cartridge body
» » Pressure compensated
version (size 20mm
only) available
»
» Suitable to work also
with oxygen
GENERAL DATA
TECHNICAL FEATURES Size 16mm, 2/2 NC Size 20mm, 2/2 NC Size 20mm, 2/2 NC
pressure compensated
Function
Operation
Pneumatic connections
Nominal diameters
Free flow capacity
Operating pressure
Max overpressure
Linearity
Hysteresis
Repeatibility
Operating temperature
Media
Installation
proportional directly operated
cartridge
1 - 1.5 - 2 mm
70 - 80 - 90 l/min
2.8 - 2 bar
16 bar
3% FS
10% FS
5% FS
10°C ÷ 50°C
filtered compressed air, unlubricated,
according to ISO 8573-1 class 3.4.3,
inert gas.
in any position
proportional directly operated
cartridge
3 - 3.5 mm
145 - 165 Nl/min
2.8 - 2 bar
16 bar
5% FS
15% FS
5% FS
10°C ÷ 50°C
filtered compressed air, unlubricated,
according to ISO 8573-1 class 3.4.3,
inert gas.
in any position
proportional pressure compensated
cartridge
4.4 mm
200 l/min
2.8 bar (max pressure 6 bar)
16 bar
2% FS
15% FS
5% FS
10°C ÷ 50°C
filtered compressed air, unlubricated,
according to ISO 8573-1 class 3.4.3,
inert gas.
in any position
MATERIALS IN CONTACT
WITH THE MEDIUM
Body
Seals
brass, stainless steel, PPS
FKM
brass, stainless steel, PPS
FKM
brass, stainless steel, PPS
FKM
ELECTRICAL FEATURES
Operation
Operation voltage
Max power consumption
Nominal resistance
Rated current
Duty cycle
Electrical connection
Protection class
Average lifecycles
PWM > 1000 Hz or current control
6 - 12 - 24 V DC
2 W
11.8 - 37.6 - 184.7 Ohm
410 - 238 - 103 mA
100%
cable 300mm AWG24
IP00 / IP40
50000000
PWM > 500 Hz or current control
6 - 12 - 24 V DC
3.7 - 3 W
6.4 - 25.1 - 102.1 Ohm
615 - 313 - 154 mA
100%
cable 300mm AWG24
IP00 / IP40
50000000
PWM > 1000 Hz or current control
6 - 12 - 24 V DC
4.2 W
6.4 - 25.1 - 102.1 Ohm
700 - 350 - 175 mA
100%
cable 300mm AWG24
IP00 / IP40
50000000
New models
