Series CP proportional solenoid valves C_FLUID CONTROL CATALOGUE
2
126
> 2018 CONTROL >
CONTROL
Nominal diameter 3mm
Q = flow (l/min)
I = current (A)
P1 = pressure in load (bar)
P2 = 0 [ free flow pressure ] (bar)
Nominal diameter 3.5mm
Q = flow (l/min)
I = current (A)
P1 = pressure in load (bar)
P2 = 0 [ free flow pressure ] (bar)

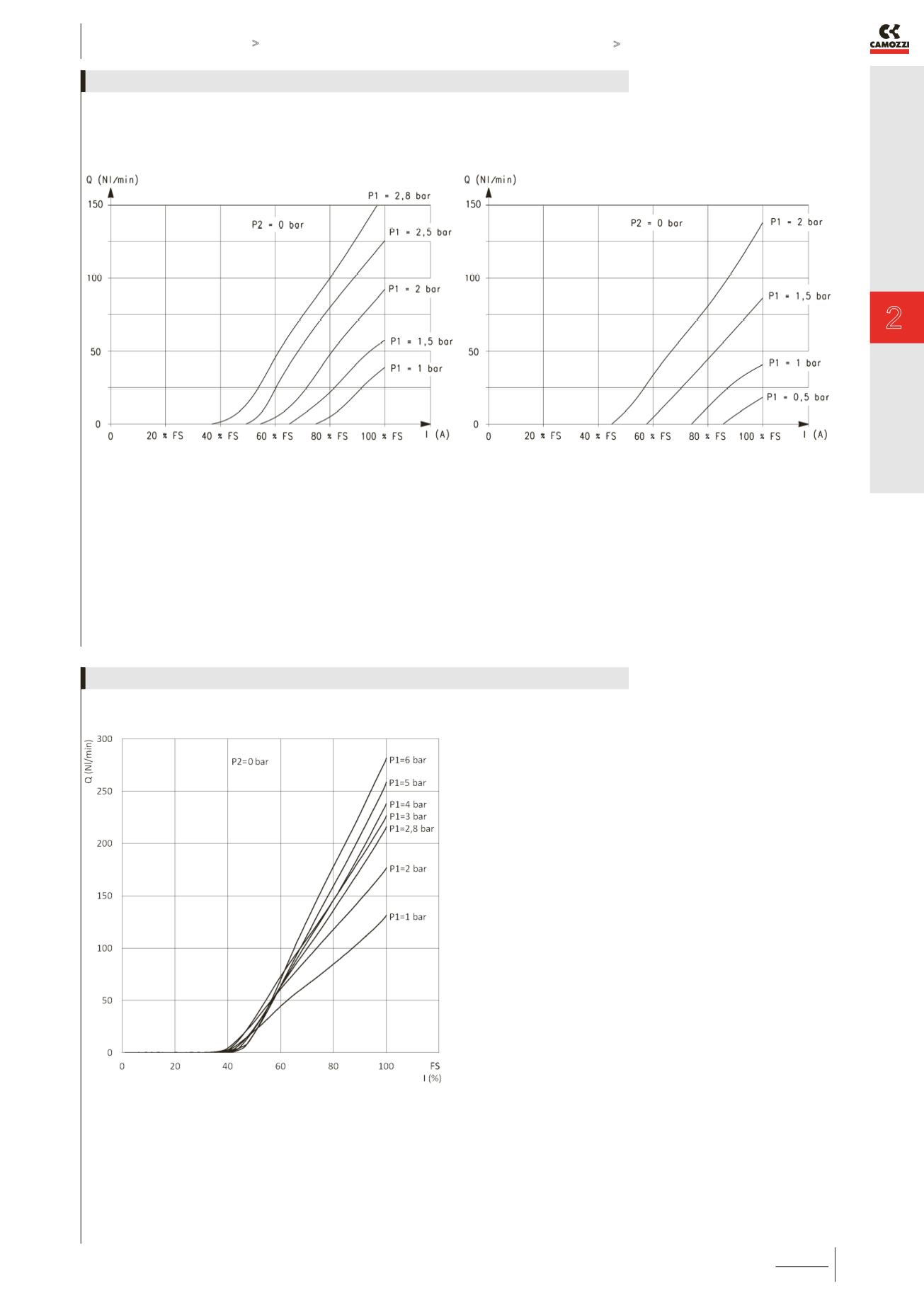

FLOW DIAGRAMS - Size 20mm
Nominal diameter 4.4mm
Q = flow (l/min)
I = current (A)
P1 = pressure in load (bar)
P2 = 0 [ free flow pressure ] (bar)
FS = full scale
FLOW DIAGRAMS - Size 20mm pressure compensated
