Series CP proportional solenoid valves C_FLUID CONTROL CATALOGUE
2
124
> 2018 CONTROL >
CONTROL

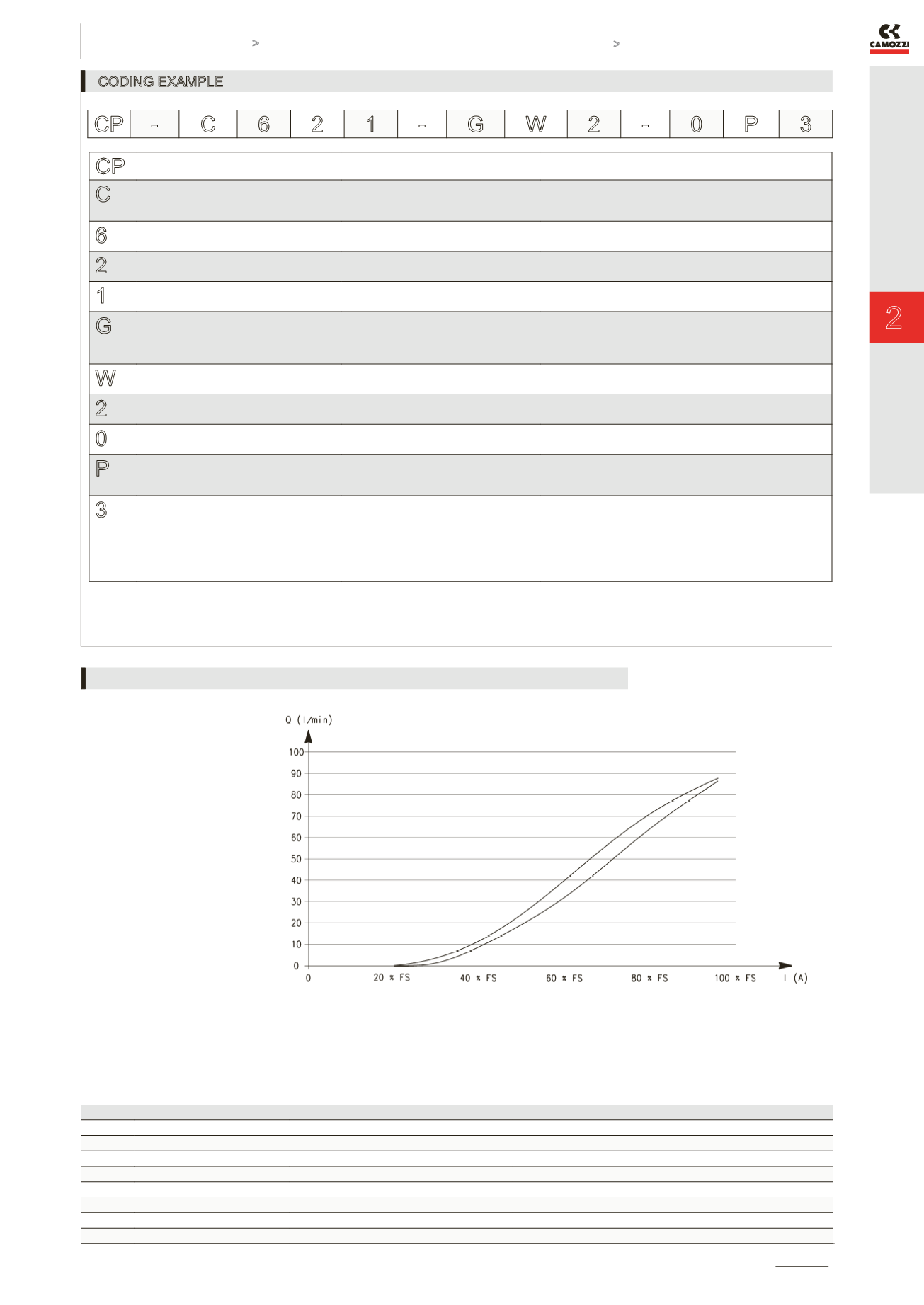

CODING EXAMPLE
CP SERIES
C PORTS:
C = cartridge
S = subbase
6 BODY SIZE:
6 = size 16mm 7 = size 20mm 7 = size 20mm pressure compensated
2 NUMBER OF PORTS:
2 = 2-way
1 FUNCTION:
1 = NC
G ORIFICE DIAMETRES:
F = 1mm (size 16mm only)
G = 1.5mm (size 16mm only)
N = 2mm (size 16mm only)
M = 3mm (size 20mm only)
P = 3.5mm (size 20mm only)
T = ø 4.4 mm (size 20mm only, pressure compensated)
W SEAL MATERIAL:
W = FKM
2 BODY MATERIAL:
2 = BRASS
0 OVERMOULDING MATERIAL OF COIL:
0 = cartridge
P COIL DIMENSIONS:
P = ø 16
7 = ø 20
3 VOLTAGE:
1 = 6 V DC 3.1 W (size 16mm only)
3 = 24 V DC 3.1 W (size 16mm only)
5 = 12 V DC 3.1 W (size 16mm only)
2 = 12 V DC 4.3 W (size 20mm only)
4 = 24 V DC 4.3 W (size 20mm only)
6 = 6 V DC 4.3 W (size 20mm only)
7 = 6 V 4.8 W (only Ø 3.5, size 20mm)
8 = 12 V 4.8 W (only Ø 3.5, size 20mm)
9 = 24 V 4.8 W (only Ø 3.5, size 20mm)
10 = 6 V DC 4.2 W (size 20mm only, pressure compensated)
11 = 24 V DC 4.2 W (size 20mm only, pressure compensated)
12 = 12 V DC 4.2 W (size 20mm only, pressure compensated)
CP - C 6 2 1 - G W 2 - 0 P 3
DIAGRAM LEGEND:
Q = flow (l/min)
I = current (A)
FS = full scale
NOTE TO THE TABLE:
* in the pressure compensated
version the counter pressure at the
valve outlet must be always lower
than 15-20% of the inlet pressure.
RESPONSE TIMES calculated according to the maximum flow at each operating pressure. [ Electromechanical response time: 10 ms ]
ø Inlet pressure (bar) Load response time (ms) Exhaust response time (ms)
0% - 10% 0% - 90% 10% - 90% 100% - 90% 100% - 10% 90% - 10%
1 mm 8 12 42 30 9 33 24
1.5 mm 5 12 39 27 9 33 24
2 mm 3 11 39 28 9 33 26
3 mm 2.8 13 29 16 14 28.5 14.5
3.5 mm 2 15 31 16 12.5 27.5 15
4.4 mm * 2.8 13 52 49 10 37 27
HYSTERESIS AND RESPONSE TIMES
