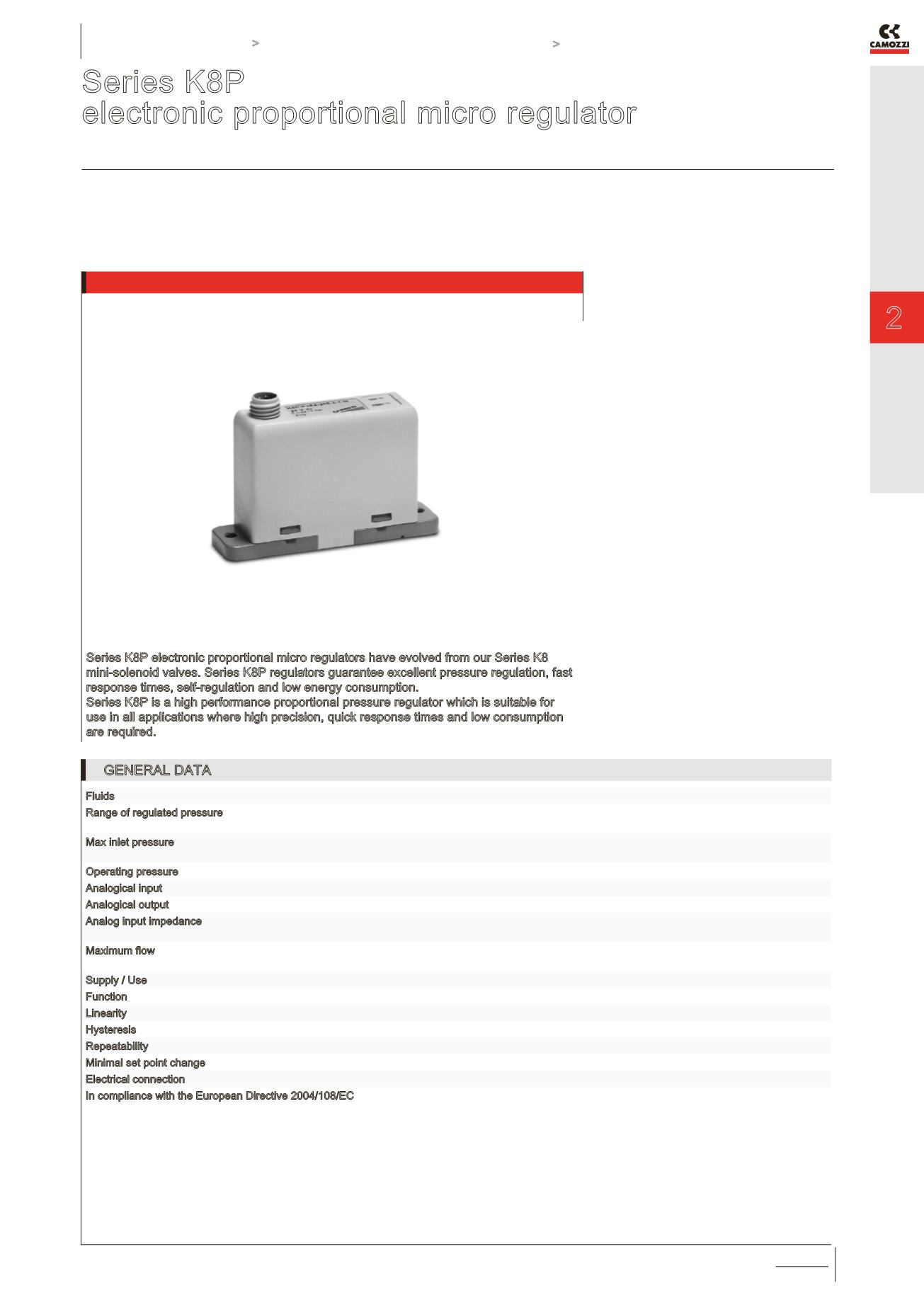

Series K8P
electronic proportional micro regulator
Proportional regulator for the pressure control
Series K8P electronic proportional micro regulators have evolved from our Series K8
mini-solenoid valves. Series K8P regulators guarantee excellent pressure regulation, fast
response times, self-regulation and low energy consumption.
Series K8P is a high performance proportional pressure regulator which is suitable for
use in all applications where high precision, quick response times and low consumption
are required.
The K8P regulator adjusts the outlet
pressure through the operation of two K8
monostable valves according to the inlet
signal and to the retroactivity of the internal
pressure sensor. A self-adjusting function
has been integrated into the regulator
control algorithm to guarantee the highest
levels of performance apart from the volume
connected.
» » High precision
»
» Reduced response times
» » Minimum consumption
» » Self-regulation function
»
» Flexibility of use
» » Compact design
GENERAL DATA
Fluids filtered compressed air, unlubricated, according to ISO 8573-1 class 3.4.3, inert gas
Range of regulated pressure 0.5 ÷ 10 bar
0.15 ÷ 3 bar
Max inlet pressure 11 bar (0.5 ÷ 10 bar)
4 bar (0.15 ÷ 3 bar)
Operating pressure 0 ÷ +50°C
Analogical input 0-10 V DC 4-20 mA Ripple ≤ 0,2%
Analogical output 0.5 - 9.5 V [ Feedback ]
Analog input impedance 20.000 Ω for versions 0-10 V
250 Ω for versions 4-20 mA
Maximum flow Inlet P 10 bar - regulated P 6 bar 12 l/min
Inlet P 4 bar - regulated P 3 bar 6 l/min
Supply / Use 24 V - ~1 W
Function 3/2 NC
Linearity ≤ ± 1% FS
Hysteresis ±0,5% FS
Repeatability ±0.5% FS
Minimal set point change 50 mV => 50 mB ( 10 bar ) - 100mV => 30 mB ( 3 bar )
Electrical connection M8 4 Pin ( Male )
In compliance with the European Directive 2004/108/EC
