Series K8P electronic proportional micro regulator
CONTROL >
C_FLUID CONTROL CATALOGUE
>
2018
143
CONTROL

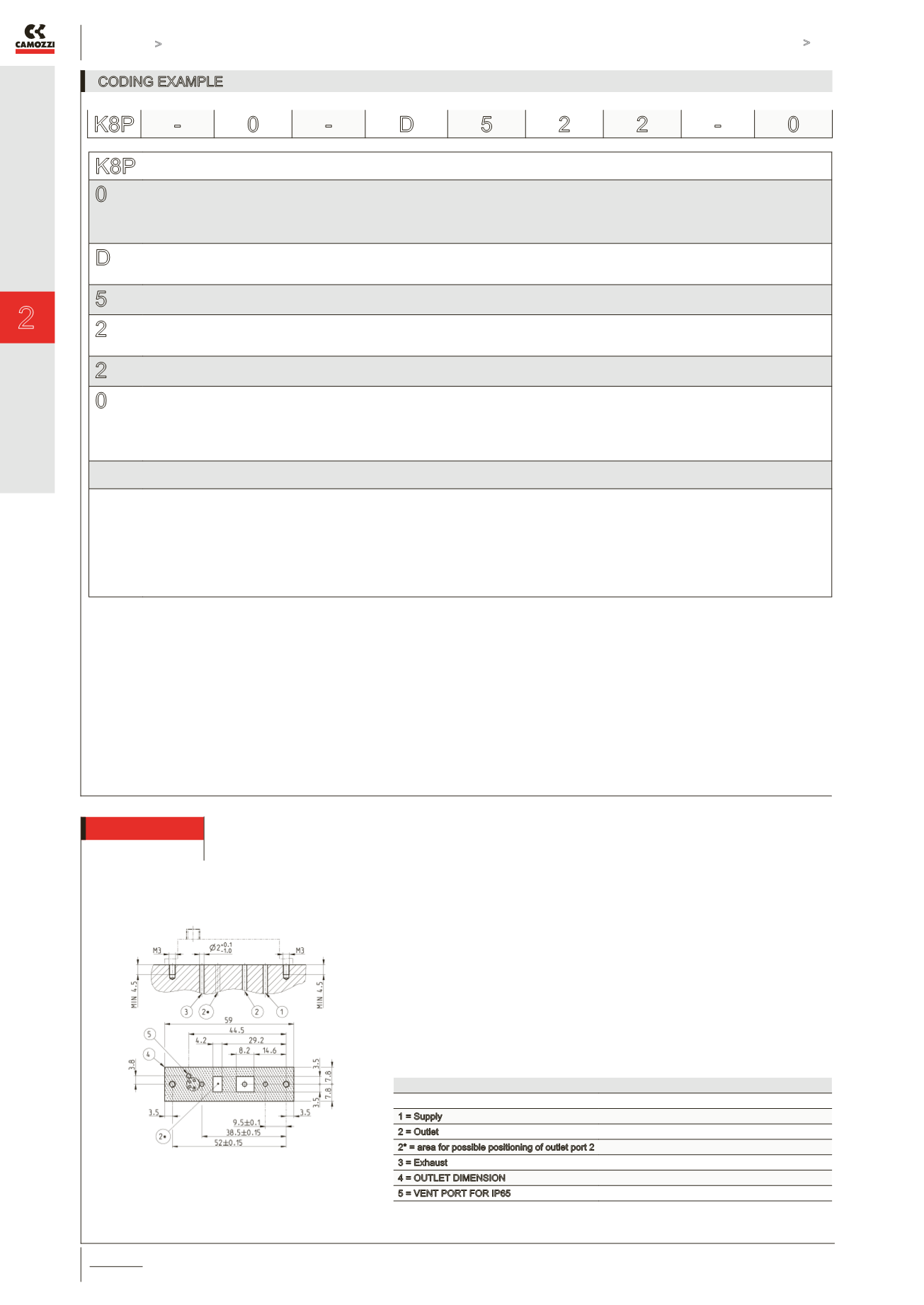

CODING EXAMPLE
K8P
SERIES
0
BODY DESIGN:
0 = Stand alone
S = Standard Sub-base
L = Light Sub-base
T = Light Sub-base for the pressure remote reading
D
WORKING PRESSURE:
D = 0 -10 bar
E = 0 - 3 bar
5
VALVE FUNCTIONS:
5 = 2-way NC
2
COMMAND:
2 = 0-10 V DC
3 = 4-20 mA
2
OUTPUT SIGNAL:
2 = 0-10 V
0
CABLE LENGTH:
0 = without cable
2F = straight cable, 2 m
2R = right angle cable (90 degrees), 2 m
5F = straight cable, 5 m
5R = right angle cable (90 degrees), 5 m
APPLICATIONS
The K8P proportional regulator can be used as a pilot valve to control the opening of high flow valves or to check the high flow pressure regulators proportionally
(version with sub-base for the pressure remote reading).
It enables proportional control of power in lifting systems and can be used with inert gas to maintain a constant pressure in pneumatic cylinders or expansion valve
chambers.
It has also been designed to maintain a constant pressure during the pulling power applied to the wires in winding machines, to modulate pressure during the
smoothing process in woodworking machines or to adjust the opening of diaphragm valves.
K8P -
0
-
D 5
2
2
-
0
DRAWING LEGEND
Notes
1 = Supply
Pneumatic connection
2 = Outlet
Pneumatic connection
2* = area for possible positioning of outlet port 2
Do not exceed the indicated outline
3 = Exhaust
Pneumatic connection
4 = OUTLET DIMENSION
5 = VENT PORT FOR IP65
Optional when a OR seal is mounted
Interface for single use without sub-base
