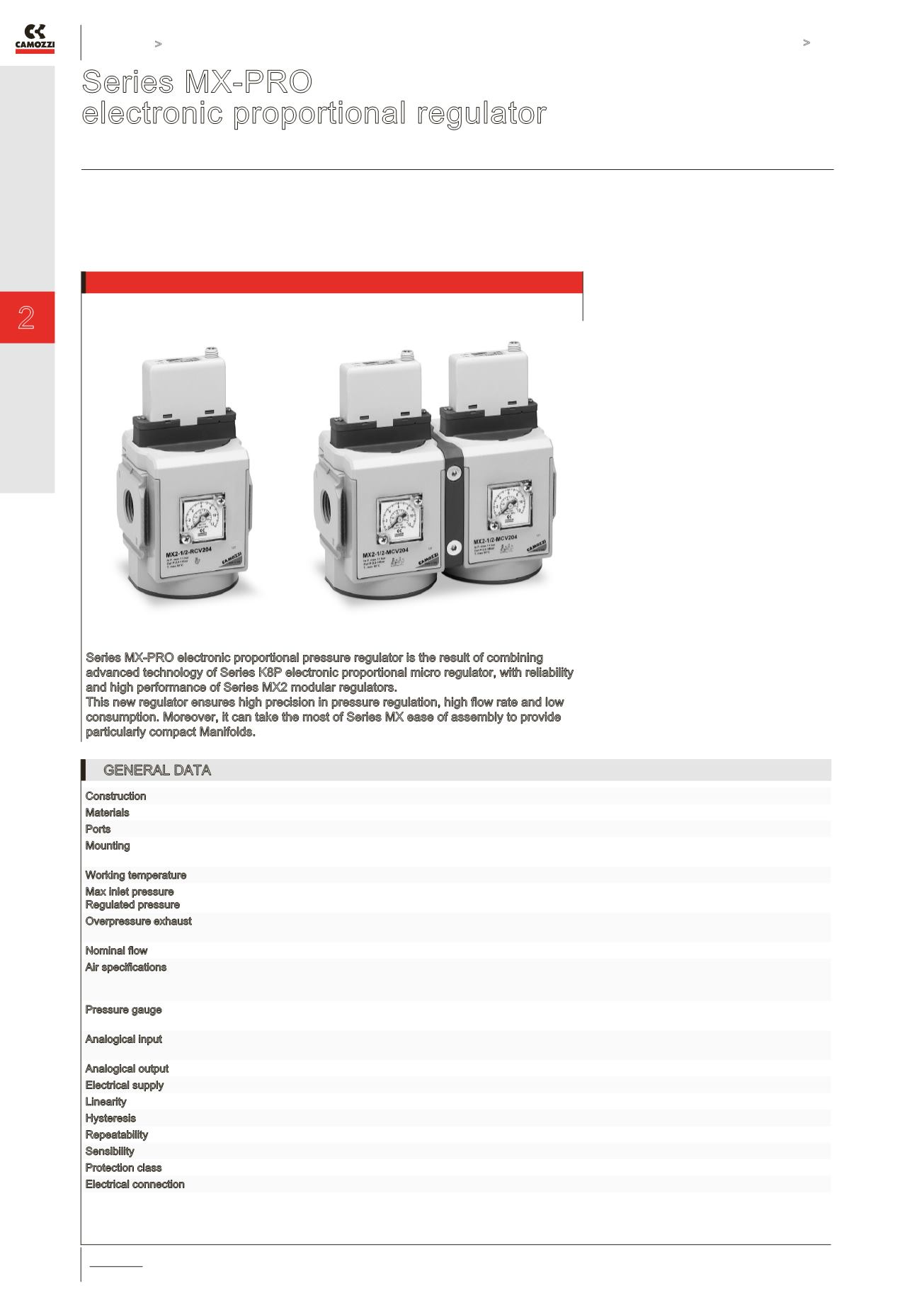

Series MX-PRO electronic proportional regulator
CONTROL >
C_FLUID CONTROL CATALOGUE
>
2018
147
CONTROL
Series MX-PRO
electronic proportional regulator
Ports: G1/2
Manifold ports: G1/2
Modular - Available with built-in pressure gauges or ports for gauges
Series MX-PRO electronic proportional pressure regulator is the result of combining
advanced technology of Series K8P electronic proportional micro regulator, with reliability
and high performance of Series MX2 modular regulators.
This new regulator ensures high precision in pressure regulation, high flow rate and low
consumption. Moreover, it can take the most of Series MX ease of assembly to provide
particularly compact Manifolds.
»
»
High precision
»
»
Low electric consumption
»
»
High exhaust flow
»
»
Modular with Series MX2
»
»
Available also in the
MANIFOLD and external
servo pilot supply versions
GENERAL DATA
Construction
modular, compact, diaphragm type
Materials
see tables on the following pages
Ports
G1/2
Mounting
vertical in-line,
wall-mounting (by means of clamps)
Working temperature 0°C ÷ 50°C
Max inlet pressure
Regulated pressure
11 bar (10 bar), 4 bar (3 bar)
0.5 ÷ 10 bar, 0.15 ÷ 3 bar
Overpressure exhaust with relieving (standard)
without relieving
Nominal flow
see flow diagrams (following pages)
Air specifications
Filtered compressed air, non lubricated, class 3.4.3 according to ISO 8573.1 standard. If lubrication is necessary, please use only
oils with maximum viscosity of 32 Cst and the version with external servo-pilot supply. The servo-pilot supply air quality class must
be 3.4.3 according to ISO 8573.1 standard.
Pressure gauge
version with built-in pressure gauge (standard)
version with G1/8 port
Analogical input
0-10 V DC Ripple ≤ 0.2%
4–20 mA
Analogical output
0.5-9.5 V DC [ Feedback ]
Electrical supply
24 V DC ± 10%
Linearity
≤ ± 1% FS
Hysteresis
±0.5% FS
Repeatability
±0.5% FS
Sensibility
0.3% FS
Protection class
IP51
Electrical connection M8 4 Pin (Male)
