Series MX-PRO electronic proportional regulator C_FLUID CONTROL CATALOGUE
2
148
> 2018 CONTROL >
CONTROL

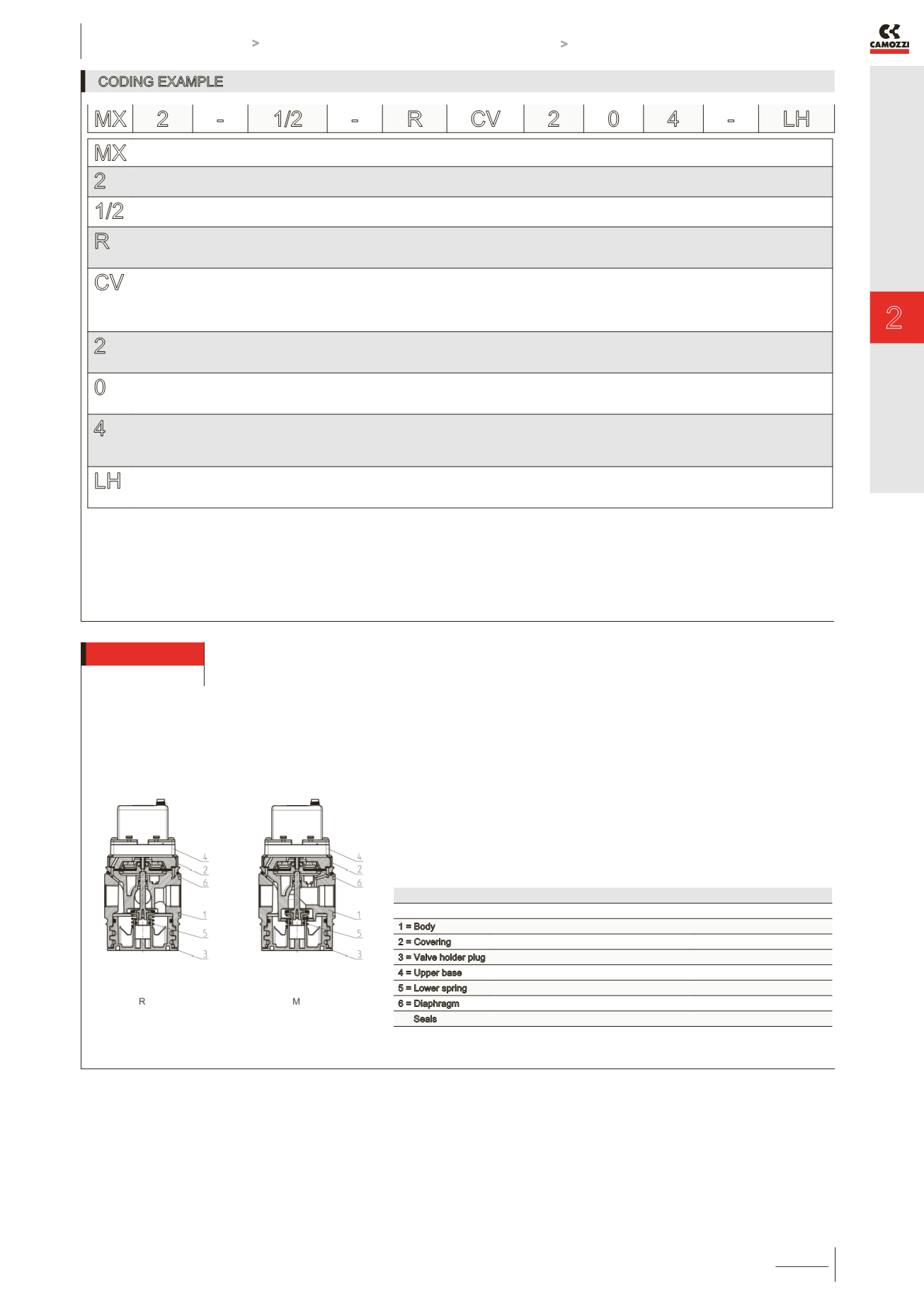

CODING EXAMPLE
MX SERIES
2 SIZE:
2 = G1/2
1/2 PORTS:
1/2 = G1/2
R TYPE OF REGULATOR:
R = pressure regulator
M = Manifold pressure regulator (G1/2 only)
CV COMMAND:
CV = electrical command 0-10 V DC
CA = electrical command 4-20 mA
EV = electrical command 0-10 V DC with external servo pilot supply
EA = electrical command 4-20 mA with external servo pilot supply
2 OPERATING PRESSURE (1 bar = 14,5 psi):
1 = 0.15 ÷ 3 bar
2 = 0.5 ÷ 10 bar (standard)
0 DESIGN TYPE:
0 = relieving (standard)
1 = without relieving
4 PRESSURE GAUGE:
0 = without pressure gauge (with threaded port for gauges)
2 = with built-in pressure gauge 0-6 and working pressure 0.15 ÷ 3 bar
4 = with built-in pressure gauge 0-12 and working pressure 0.5 ÷ 10 bar (standard)
LH FLOW DIRECTION:
= from left to right (standard)
LH = from right to left
For the assembly of a single component with fixing flanges or wall-mounting, see the section “FRL Series MX Assembled” (pag. 3/1.50.01)
MX 2 - 1/2 - R CV 2 0 4 - LH
PARTS MATERIALS
1 = Body Aluminium
2 = Covering Polyacetal
3 = Valve holder plug Polyacetal
4 = Upper base Polyamide
5 = Lower spring Zinc-plated steel
6 = Diaphragm NBR
Seals NBR
Series MX-PRO electronic proportional regulators - materials
R = pressure regulator
M = Manifold pressure regulator
