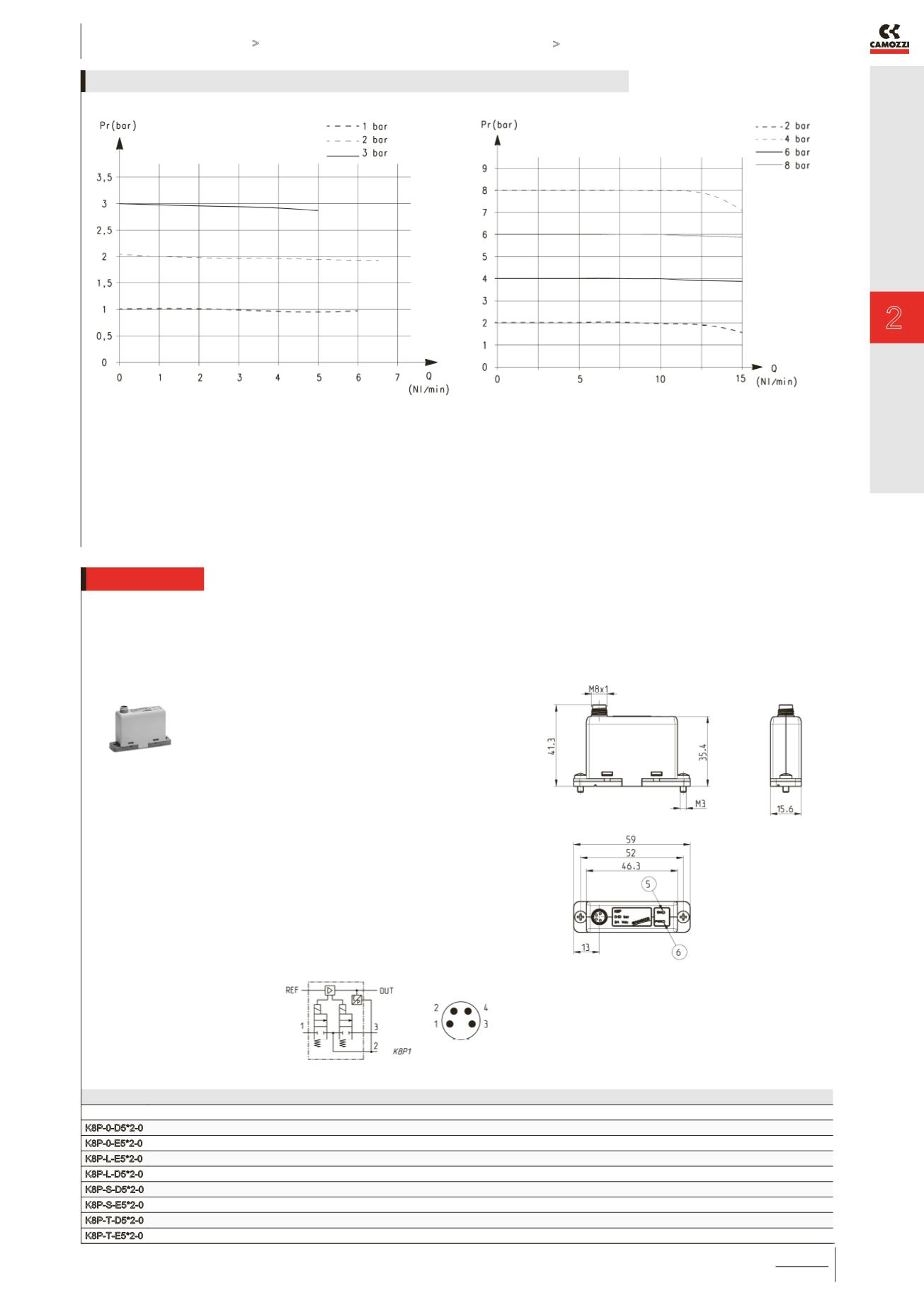

Series K8P electronic proportional micro regulator C_FLUID CONTROL CATALOGUE
2
144
> 2018 CONTROL >
CONTROL
Pr = Outlet pressure (bar)*
Q = Flow (Nl/min)*
* = Inlet pressure 4 bar
Pr = Outlet pressure (bar)*
Q = Flow (Nl/min)*
* = Inlet pressure 10 bar
FLOW DIAGRAMS
MALE CONNECTOR M8 4 POLES
Pin 1: +24 V DC (Power supply)
Pin 2: Command analogical signal 0-10 V DC
or 4-20 mA
Pin 3: 0 V (Ground) common also for the
command signal
Pin 4: Output analogical signal
(according to the regulated pressure)
5 red LED
6 green LED
Series K8P electronic proportional micro regulator - dimensions
Mod.
K8P-0-D5*2-0 * according to the type of command desired, insert: 2 (0-10 V DC) or 3 (4-20 mA)
K8P-0-E5*2-0 * according to the type of command desired, insert: 2 (0-10 V DC) or 3 (4-20 mA)
K8P-L-E5*2-0 * according to the type of command desired, insert: 2 (0-10 V DC) or 3 (4-20 mA)
K8P-L-D5*2-0 * according to the type of command desired, insert: 2 (0-10 V DC) or 3 (4-20 mA)
K8P-S-D5*2-0 * according to the type of command desired, insert: 2 (0-10 V DC) or 3 (4-20 mA)
K8P-S-E5*2-0 * according to the type of command desired, insert: 2 (0-10 V DC) or 3 (4-20 mA)
K8P-T-D5*2-0 * according to the type of command desired, insert: 2 (0-10 V DC) or 3 (4-20 mA)
K8P-T-E5*2-0 * according to the type of command desired, insert: 2 (0-10 V DC) or 3 (4-20 mA)
