Series MX-PRO electronic proportional regulator C_FLUID CONTROL CATALOGUE
2
154
> 2018 CONTROL >
CONTROL

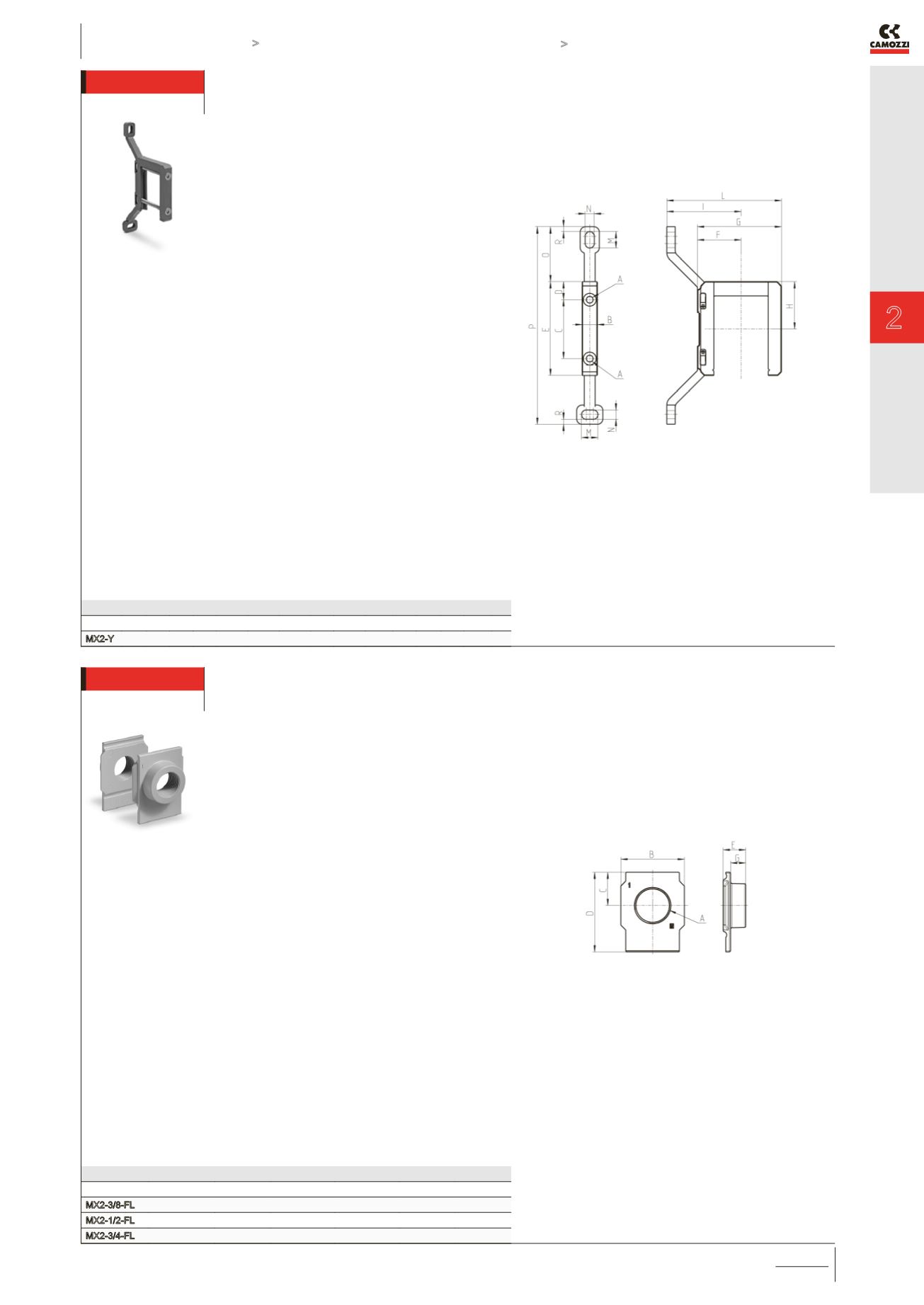

Rapid clamp kit with wall fixing brackets
Mod. A B C D E F G H I L M N O P R
MX2-Y 5,2 12 46 14 73,5 32,5 70,5 37 70,5 103 12 6,5 42 152 4
The kit MX2-Y is supplied with:
1 wall rapid clamp, 1 O-ring OR 3125 **, 2 exagonal
nuts, 2 screws M5x69.
** it can be separately ordered (cod. 160-39-11/19)
Materials: technopolymer clamp, NBR O-ring,
zinc-plated steel nuts and screws.
Terminal flanges (IN/OUT)
Mod. A B C D E G
MX2-3/8-FL G3/8 50 26,5 63,5 17 11
MX2-1/2-FL G1/2 50 26,5 63,5 17 11
MX2-3/4-FL G3/4 50 26,5 63,5 17 11
The kit is supplied with:
- 1 flange INLET side
- 1 flange OUTLET side
Materials: painted aluminium flanges.
