Series MX-PRO electronic proportional regulator C_FLUID CONTROL CATALOGUE
2
152
> 2018 CONTROL >
CONTROL
Pr = Regulated pressure
Q = Flow
Pa = Inlet pressure

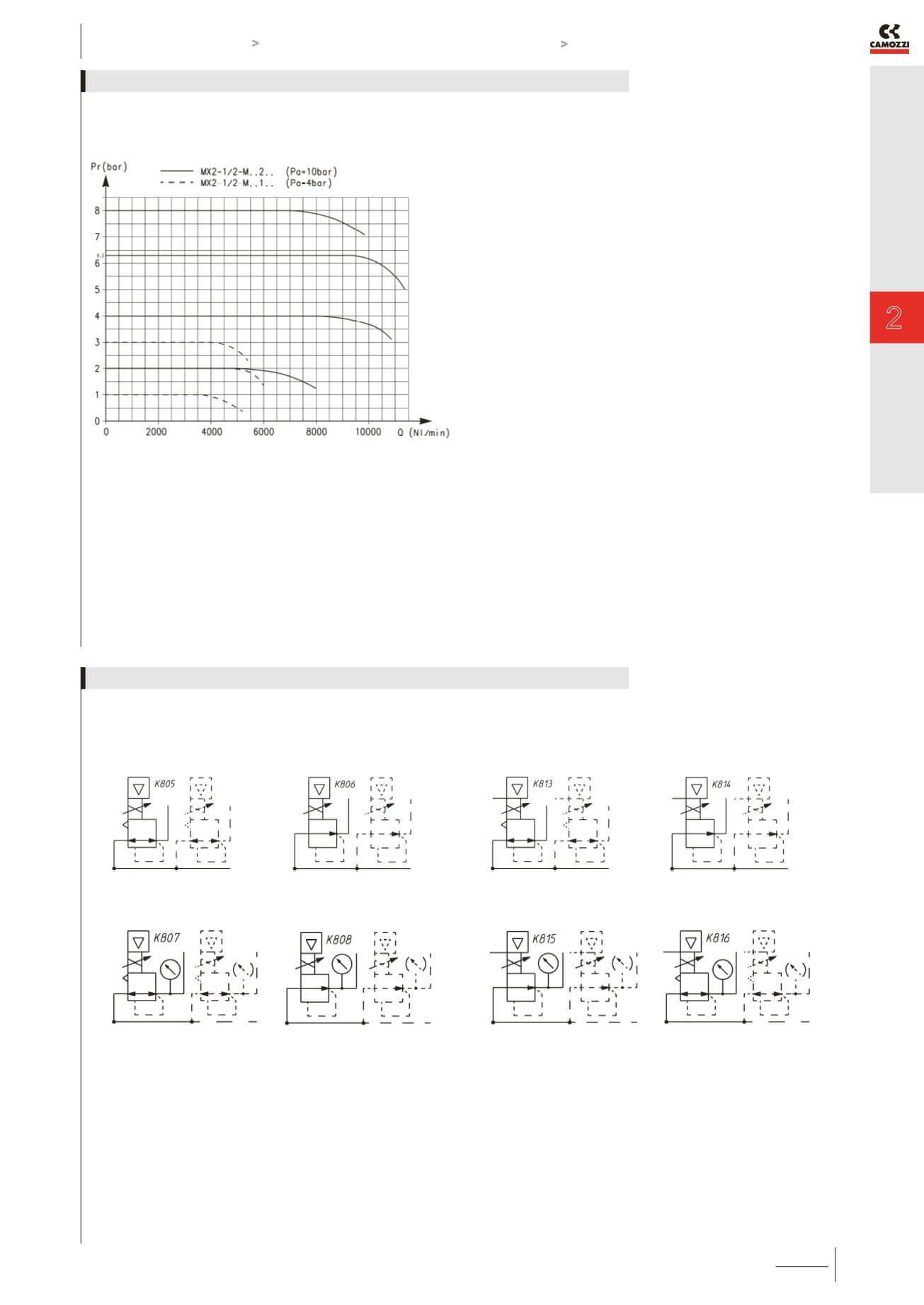

FLOW DIAGRAMS - MANIFOLD VERSION
K805 = MANIFOLD reg., relieving, electrical command
K806 = MANIFOLD reg., NO relieving, electrical command
K807 = MANIFOLD reg., relieving, electrical command
and built-in pressure gauge
K808 = MANIFOLD reg., NO relieving, electrical command
and built-in pressure gauge
K813 = MANIFOLD reg., relieving, electrical command,
and external servo pilot supply
K814 = MANIFOLD reg., NO relieving, electrical command,
and external servo pilot supply
K815 = MANIFOLD reg., relieving, electrical command,
built-in pressure gauge and external servo pilot supply
K816 = MANIFOLD reg., NO relieving, electrical command,
built-in pressure gauge and external servo pilot supply
PNEUMATIC SYMBOLS - MANIFOLD VERSION
