Series MX-PRO electronic proportional regulator C_FLUID CONTROL CATALOGUE
2
150
> 2018 CONTROL >
CONTROL
Pr = Regulated pressure
Q = Flow
Pa = Inlet pressure
Pr = Regulated pressure
Q = Flow
Pa = Inlet pressure

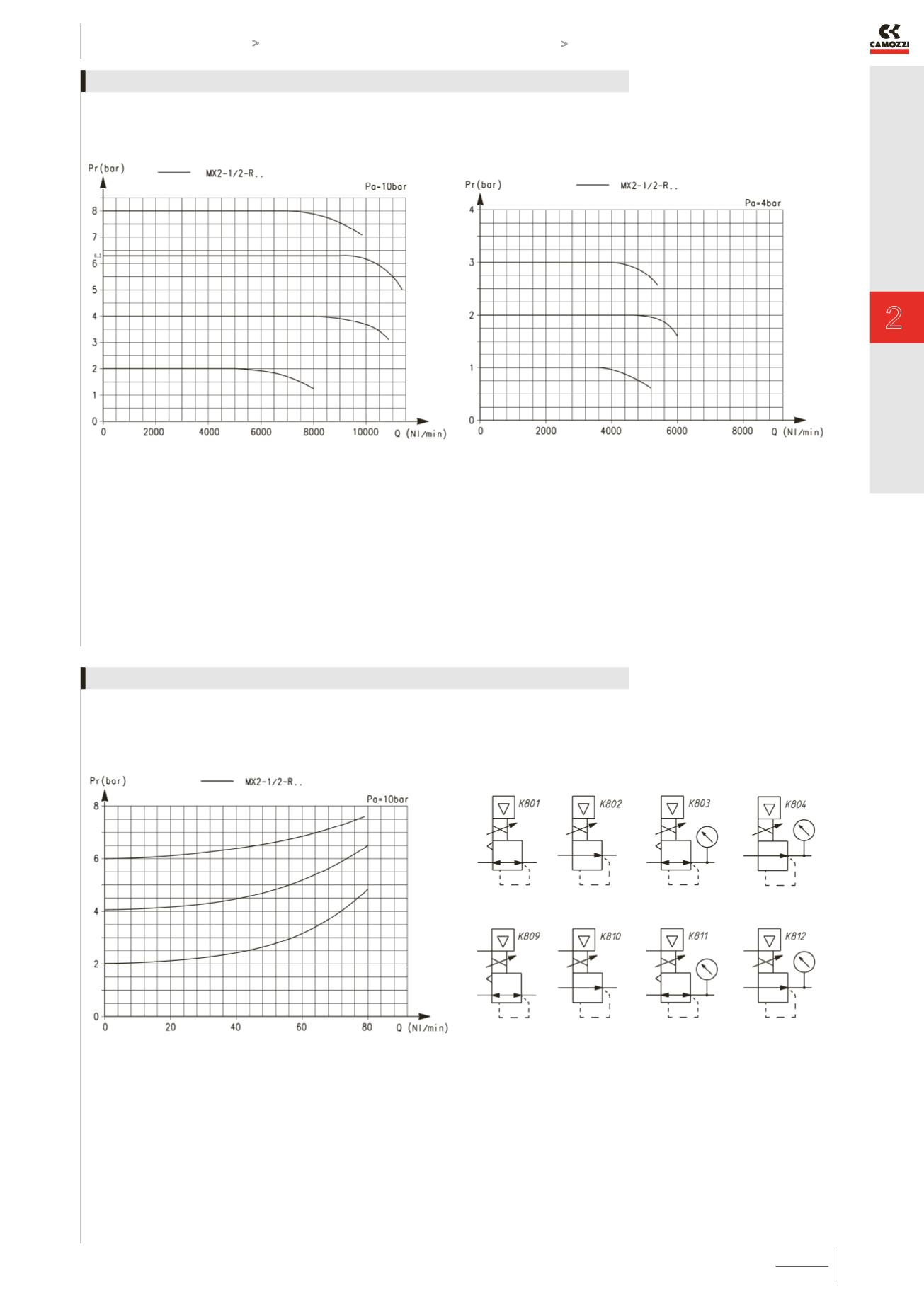

FLOW DIAGRAMS - STANDARD VERSION
Exhaust flow diagram
Pr = Regulated pressure
Q = Flow
Pa = Inlet pressure
K801 = relieving, electrical command
K802 = NO relieving, electrical command
K803 = relieving, electrical command, built-in pressure gauge
K804 = NO relieving, electrical command, built-in pressure gauge
K809 = relieving, electrical command, ext. servo pilot supply
K810 = NO reliev., electrical command, ext. servo pilot supply
K811 = reliev., el. com., built-in pr. gauge, ext. servo pilot supply
K812 = NO reliev., el. com., built-in pr. gauge, ext. servo pilot sup.
FLOW DIAGRAM AND PNEUMATIC SYMBOLS - STANDARD VERSION
