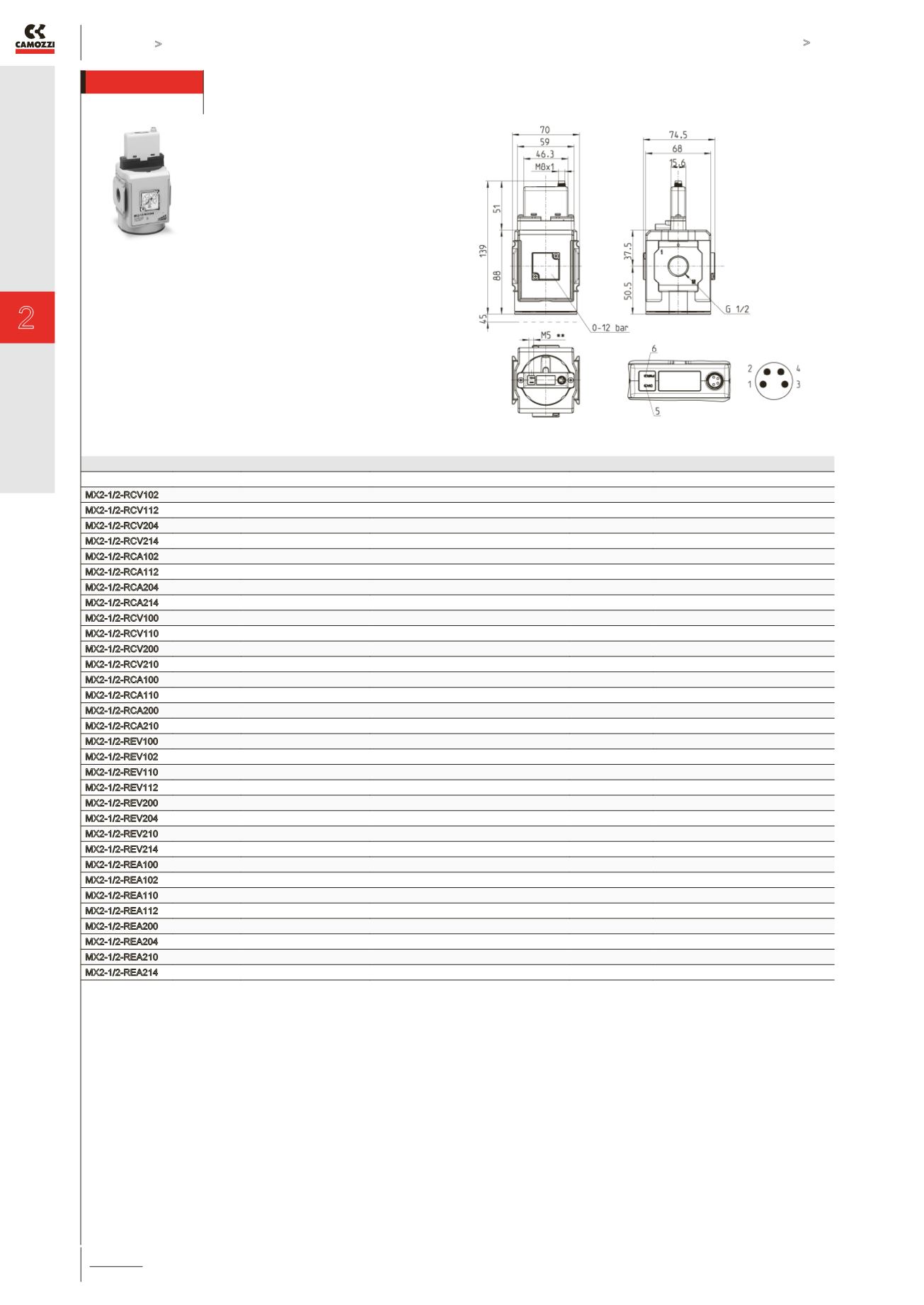

Series MX-PRO electronic proportional regulator CONTROL > C_FLUID CONTROL CATALOGUE > 2018
149
CONTROL
Series MX-PRO electronic proportional regulators
Male connector M8 4 poles
Pin 1: +24 V DC (Power supply)
Pin 2: Command analogical signal
0-10 V DC or 4-20 mA
Pin 3: 0 V (Ground) common also
for the command signal
Pin 4: Output analogical signal
(according to the
regulated pressure)
5 red LED
6 green LED
Mod. Ports Electrical command Operating pressure (1 bar = 14,5 psi) Relieving Pressure gauge
MX2-1/2-RCV102 G1/2 0-10 V DC 0.15 ÷ 3 bar yes with built-in pressure gauge 0-6
MX2-1/2-RCV112 G1/2 0-10 V DC 0.15 ÷ 3 bar no with built-in pressure gauge 0-6
MX2-1/2-RCV204 G1/2 0-10 V DC 0.5 ÷ 10 bar yes with built-in pressure gauge 0-12
MX2-1/2-RCV214 G1/2 0-10 V DC 0.5 ÷ 10 bar no with built-in pressure gauge 0-12
MX2-1/2-RCA102 G1/2 4-20 mA 0.15 ÷ 3 bar yes with built-in pressure gauge 0-6
MX2-1/2-RCA112 G1/2 4-20 mA 0.15 ÷ 3 bar no with built-in pressure gauge 0-6
MX2-1/2-RCA204 G1/2 4-20 mA 0.5 ÷ 10 bar yes with built-in pressure gauge 0-12
MX2-1/2-RCA214 G1/2 4-20 mA 0.5 ÷ 10 bar no with built-in pressure gauge 0-12
MX2-1/2-RCV100 G1/2 0-10 V DC 0.15 ÷ 3 bar yes without pressure gauge
MX2-1/2-RCV110 G1/2 0-10 V DC 0.15 ÷ 3 bar no without pressure gauge
MX2-1/2-RCV200 G1/2 0-10 V DC 0.5 ÷ 10 bar yes without pressure gauge
MX2-1/2-RCV210 G1/2 0-10 V DC 0.5 ÷ 10 bar no without pressure gauge
MX2-1/2-RCA100 G1/2 4-20 mA 0.15 ÷ 3 bar yes without pressure gauge
MX2-1/2-RCA110 G1/2 4-20 mA 0.15 ÷ 3 bar no without pressure gauge
MX2-1/2-RCA200 G1/2 4-20 mA 0.5 ÷ 10 bar yes without pressure gauge
MX2-1/2-RCA210 G1/2 4-20 mA 0.5 ÷ 10 bar no without pressure gauge
MX2-1/2-REV100 G1/2 0-10 V DC 0.15 ÷ 3 bar yes without pressure gauge
MX2-1/2-REV102 G1/2 0-10 V DC 0.15 ÷ 3 bar yes with built-in pressure gauge 0-6
MX2-1/2-REV110 G1/2 0-10 V DC 0.15 ÷ 3 bar no without pressure gauge
MX2-1/2-REV112 G1/2 0-10 V DC 0.15 ÷ 3 bar no with built-in pressure gauge 0-6
MX2-1/2-REV200 G1/2 0-10 V DC 0.5 ÷ 10 bar yes without pressure gauge
MX2-1/2-REV204 G1/2 0-10 V DC 0.5 ÷ 10 bar yes with built-in pressure gauge 0-12
MX2-1/2-REV210 G1/2 0-10 V DC 0.5 ÷ 10 bar no without pressure gauge
MX2-1/2-REV214 G1/2 0-10 V DC 0.5 ÷ 10 bar no with built-in pressure gauge 0-12
MX2-1/2-REA100 G1/2 4-20 mA 0.15 ÷ 3 bar yes without pressure gauge
MX2-1/2-REA102 G1/2 4-20 mA 0.15 ÷ 3 bar yes with built-in pressure gauge 0-6
MX2-1/2-REA110 G1/2 4-20 mA 0.15 ÷ 3 bar no without pressure gauge
MX2-1/2-REA112 G1/2 4-20 mA 0.15 ÷ 3 bar no with built-in pressure gauge 0-6
MX2-1/2-REA200 G1/2 4-20 mA 0.5 ÷ 10 bar yes without pressure gauge
MX2-1/2-REA204 G1/2 4-20 mA 0.5 ÷ 10 bar yes with built-in pressure gauge 0-12
MX2-1/2-REA210 G1/2 4-20 mA 0.5 ÷ 10 bar no without pressure gauge
MX2-1/2-REA214 G1/2 4-20 mA 0.5 ÷ 10 bar no with built-in pressure gauge 0-12
DRAWING NOTE
** = in the versions with external
servo pilot supply only
(MX2-1/2-REV... and MX2-1/2-REA...)
Accessories: see MX
accessories (3/1.49)
Assembled FRL: see
Series MX (3/1.50)
Connection cables: see
Series K8P (2/15.37)
