General terms and conditions for sale are available on

www.camozzi.com.

2

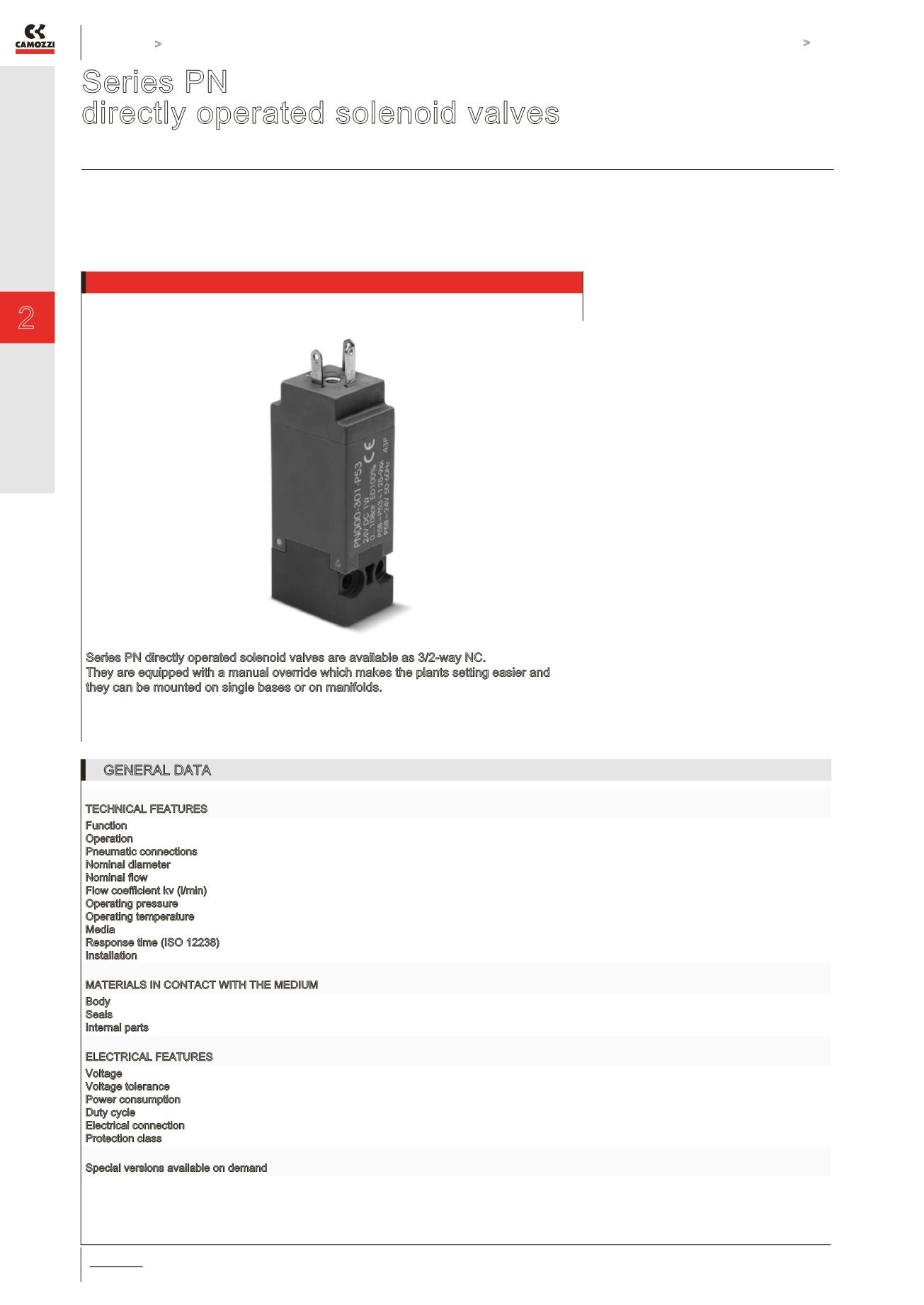

Series PN solenoid valves

CONTROL >

C_FLUID CONTROL CATALOGUE

>

2018

55

CONTROL

Series PN

directly operated solenoid valves

3/2-way - Normally Closed (NC)

Series PN directly operated solenoid valves are available as 3/2-way NC.

They are equipped with a manual override which makes the plants setting easier and

they can be mounted on single bases or on manifolds.

Please note that all Series PN solenoid

valves are supplied with direct current (DC).

To operate in alternating current (AC), it is

necessary to use the connector with bridge

rectifier Mod. 125-900.

»

»

Can be mounted on a single

base (M5 connections) or on

manifold (M5 connections

or cartridge ø 3 and 4)

»

»

Compact design suitable

for use in reduced

mounting space

GENERAL DATA

TECHNICAL FEATURES

Function

Operation

Pneumatic connections

Nominal diameter

Nominal flow

Flow coefficient kv (l/min)

Operating pressure

Operating temperature

Media

Response time (ISO 12238)

Installation

3/2 NC

direct acting poppet type

on subbase with ISO 12238 interface by means of screws

0.8 mm

12 Nl/min (air @ 6 bar ΔP 1 bar)

0.19

0 ÷ 10 bar

0°C ÷ 50°C

filtered air, class 5.4.4 according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas

ON <10 msec - OFF <15 msec

in any position

MATERIALS IN CONTACT WITH THE MEDIUM

Body

Seals

Internal parts

PBT technopolymer

PU, NBR, (FKM on demand)

stainless steel

ELECTRICAL FEATURES

Voltage

Voltage tolerance

Power consumption

Duty cycle

Electrical connection

Protection class

24 … 205 V DC

±10%

2 W - 1 W (24 V DC only)

ED 100%

with industrial standard connector (9.4 mm)

IP65 with connector

Special versions available on demand
