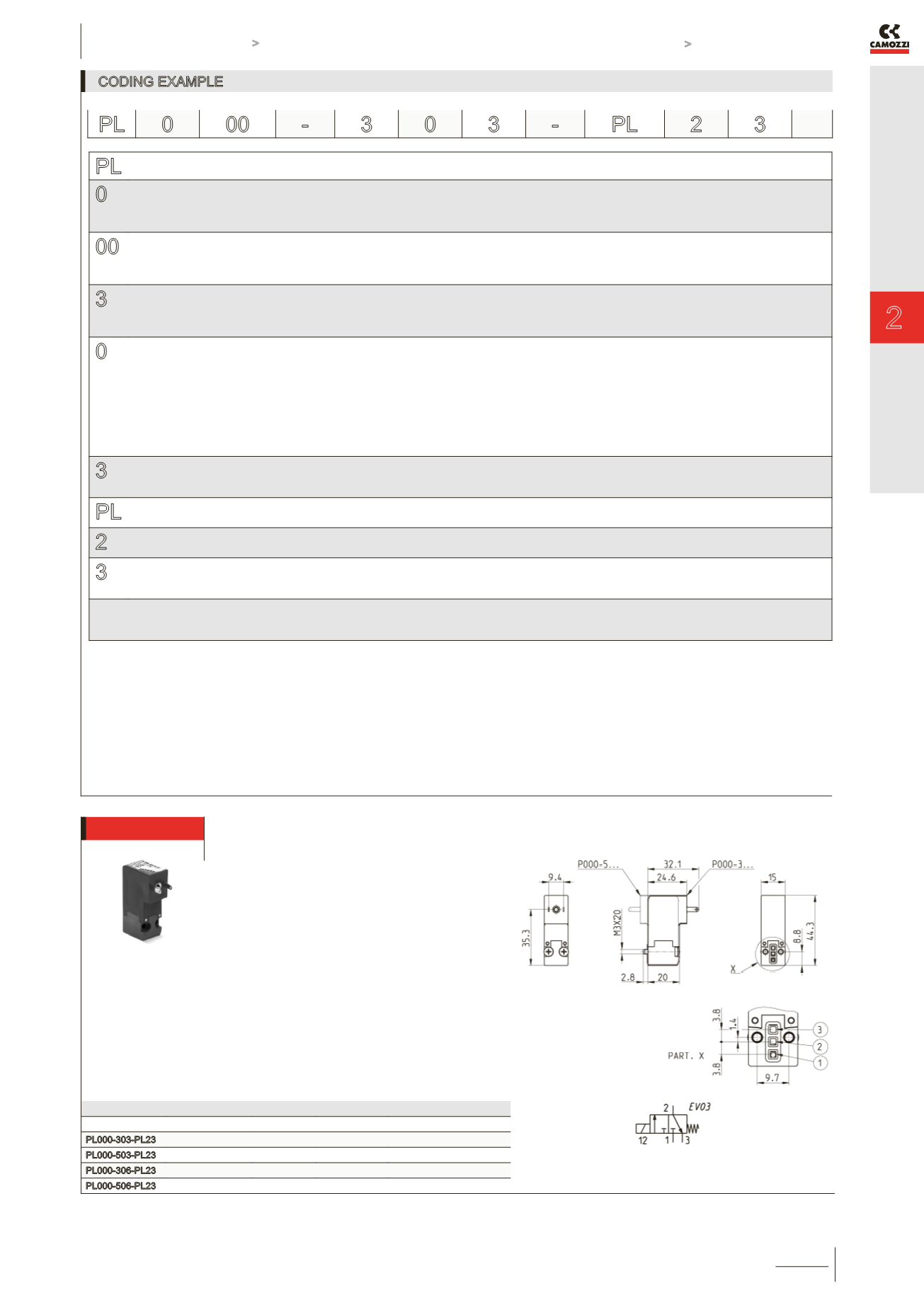

Series PL solenoid valves C_FLUID CONTROL CATALOGUE
2
50
> 2018 CONTROL >
CONTROL
CODING EXAMPLE
PL SERIES
0 BODY DESIGN:
0 = single sub-base (M5 only) or interface
1 = single manifold
2 = double sided manifold
00 NUMBER OF POSITIONS:
00 = interface
01 = single base (M5 only)
02 ÷ 99 = manifold number of positions
3 NUMBER OF WAYS - FUNCTIONS:
0 = manifold or single base
3 = 3-way NC
5 = 3-way NC electric part revolved by 180°
0 VALVE PORTS:
0 = interface (for single valve only)
MANIFOLD PORTS:
2 = M5 side port
3 = ø 3 tube side port
4 = ø 4 tube side port
6 = M5 rear ports
7 = ø 3 tube rear ports
8 = ø 4 tube rear ports
3 NOMINAL DIAMETER:
3 = Ø 1.5 mm (Pressure 4 ÷ 8 bar)
6 = Ø 1.5 mm (Pressure 0 ÷ 3.5 bar)
PL MATERIALS:
PL = technopolymer PBT body, FKM poppet seal, other seals in NBR
2 ELECTRICAL CONNECTION:
2 = industrial standard connection (9.4 mm)
3 VOLTAGE - POWER CONSUMPTION:
2 = 12 V DC 2.7W
3 = 24 V DC 2.7W
FIXING:
= with screws for metal (standard)
P = with screws for plastics
PL 0 00 - 3 0 3 - PL 2 3
3/2-way NC solenoid valve
Supplied with:
1x interface seal
2x screws M3x20 UNI 8112
(fixing for metal, standard)
or
2x screws M3x23 UNI 10227
(fixing for plastics. P option)
Mod. Orifice Ø (mm) kv (l/min) Qn (Nl/min) Pressure min-max (bar)
PL000-303-PL23 1.5 0.54 35 4 ÷ 8
PL000-503-PL23 1.5 0.54 35 4 ÷ 8
PL000-306-PL23 1.5 0.54 - 0 ÷ 3.5
PL000-506-PL23 1.5 0.54 - 0 ÷ 3.5
