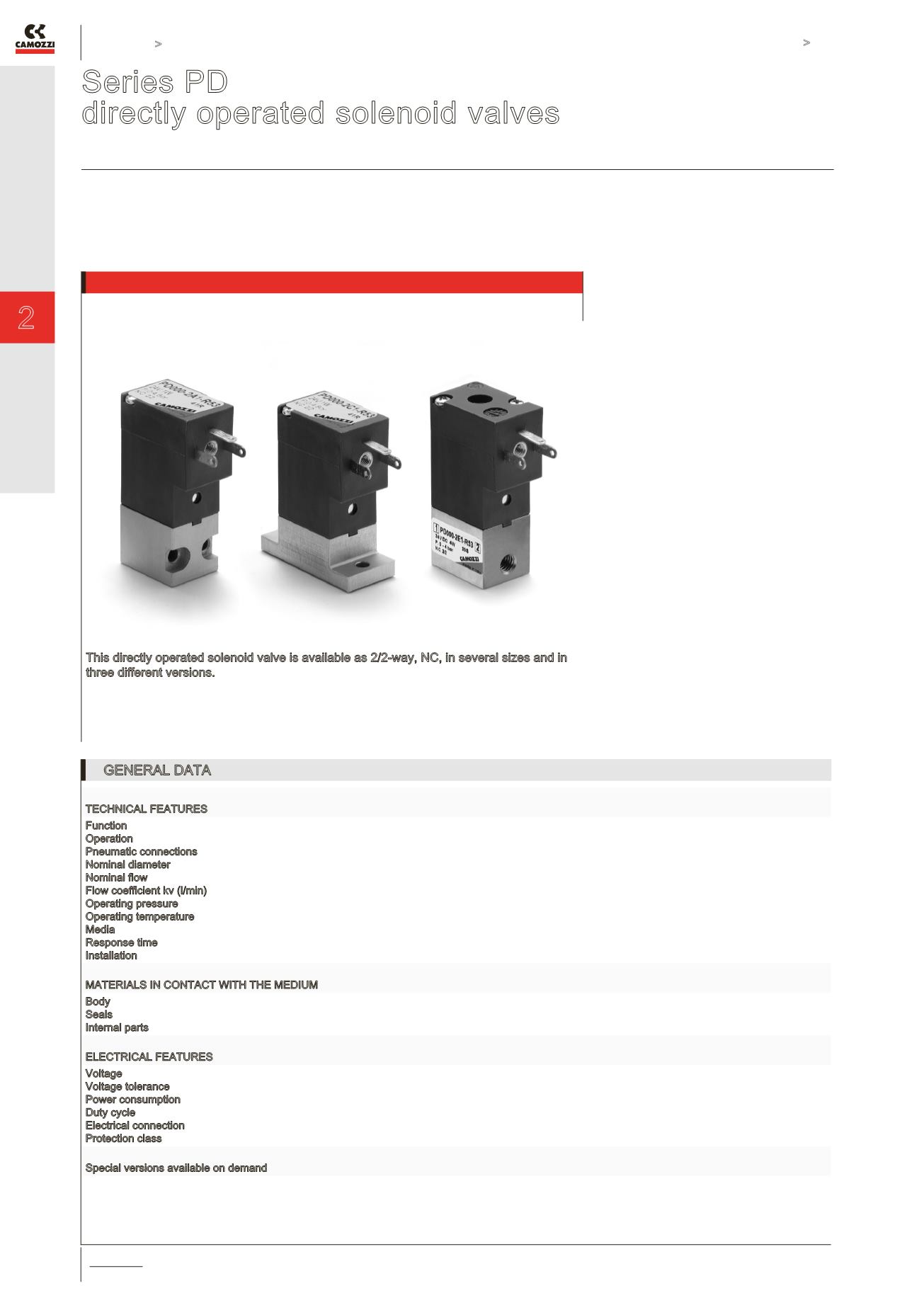

Series PD solenoid valves
CONTROL >
C_FLUID CONTROL CATALOGUE
>
2018
61
CONTROL
Series PD
directly operated solenoid valves
2/2-way - Normally Closed (NC)
This directly operated solenoid valve is available as 2/2-way, NC, in several sizes and in
three different versions.
Please note that all Series PD solenoid
valves are supplied with direct current (DC).
To operate in alternating current (AC), it is
necessary to use the connector with bridge
rectifier Mod. 125-900.
GENERAL DATA
TECHNICAL FEATURES
Function
Operation
Pneumatic connections
Nominal diameter
Nominal flow
Flow coefficient kv (l/min)
Operating pressure
Operating temperature
Media
Response time
Installation
2/2 NC
direct acting poppet type
on subbase by means of M3 screws - M5 threads
0.8 … 2.5 mm
25 … 125 Nl/min (air @ 6 bar ΔP 1 bar)
0.39 … 1.93
-0.9 ÷ 4 … 12 bar
0°C ÷ 50°C
filtered air, class 5.4.4 according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas
<15 ms
in any position
MATERIALS IN CONTACT WITH THE MEDIUM
Body
Seals
Internal parts
brass, anodized aluminium
NBR, (FKM on demand)
stainless steel
ELECTRICAL FEATURES
Voltage
Voltage tolerance
Power consumption
Duty cycle
Electrical connection
Protection class
24 V DC - 12 V DC - other voltages on demand
1 and 2 W ±10% - 4 W ±5%
1 … 4 W
ED 100% (1 and 2 W) - ED 50% (4W) see the ED definition diagram
with industrial standard connector (9.4 mm)
IP65 with connector
Special versions available on demand
