Series PN solenoid valves

C_FLUID CONTROL CATALOGUE

2

56

>

2018

CONTROL >

CONTROL

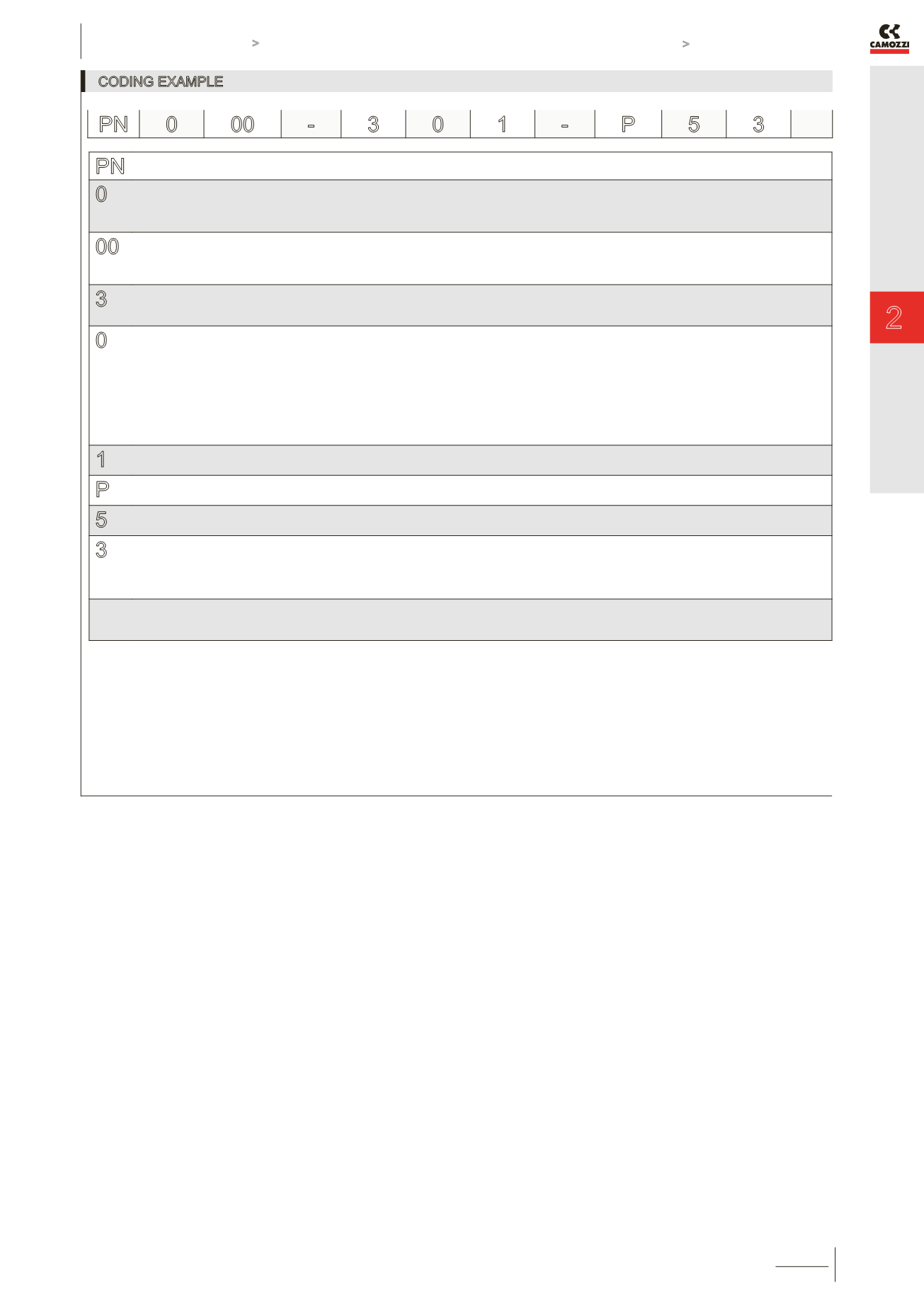

CODING EXAMPLE

PN

SERIES

0

BODY DESIGN:

0 = single sub-base

1 = single manifold

2 = double sided manifold

00

NUMBER OF POSITIONS:

00 = interface

01 = single base (M5 only)

02 ÷ 99 = manifold number of positions

3

NUMBER OF WAYS - FUNCTIONS:

0 = manifold or single base

3 = 3-way NC

0

VALVE PORTS:

0 = interface (for single valve only)

MANIFOLD PORTS (for Series W, P and PN):

2 = M5 side port

3 = ø 3 tube side port

4 = ø 4 tube side port

6 = M5 rear ports

7 = ø 3 tube rear ports

8 = ø 4 tube rear ports

1

NOMINAL DIAMETER - MAX PRESSURE

1 = ø 0,8 (1W) 10 bar (NC) 24V only

P

MATERIALS:

P = PBT body, PU poppet seal

5

ELECTRICAL CONNECTION:

5 = industrial standard connection (9.4 mm)

3

SOLENOID VOLTAGE:

3 = 24V DC

4 = 48V DC

6 = 110V DC

7 = 205V DC

FIXING:

= standard for the mounting on plastic interfaces

M = with screws for the mounting on metal interface (on demand)

PN 0 00 -

3 0 1 -

P 5 3
