www.camozzi.com.Series PD solenoid valves
C_FLUID CONTROL CATALOGUE
2
62
>
2018
CONTROL >
CONTROL

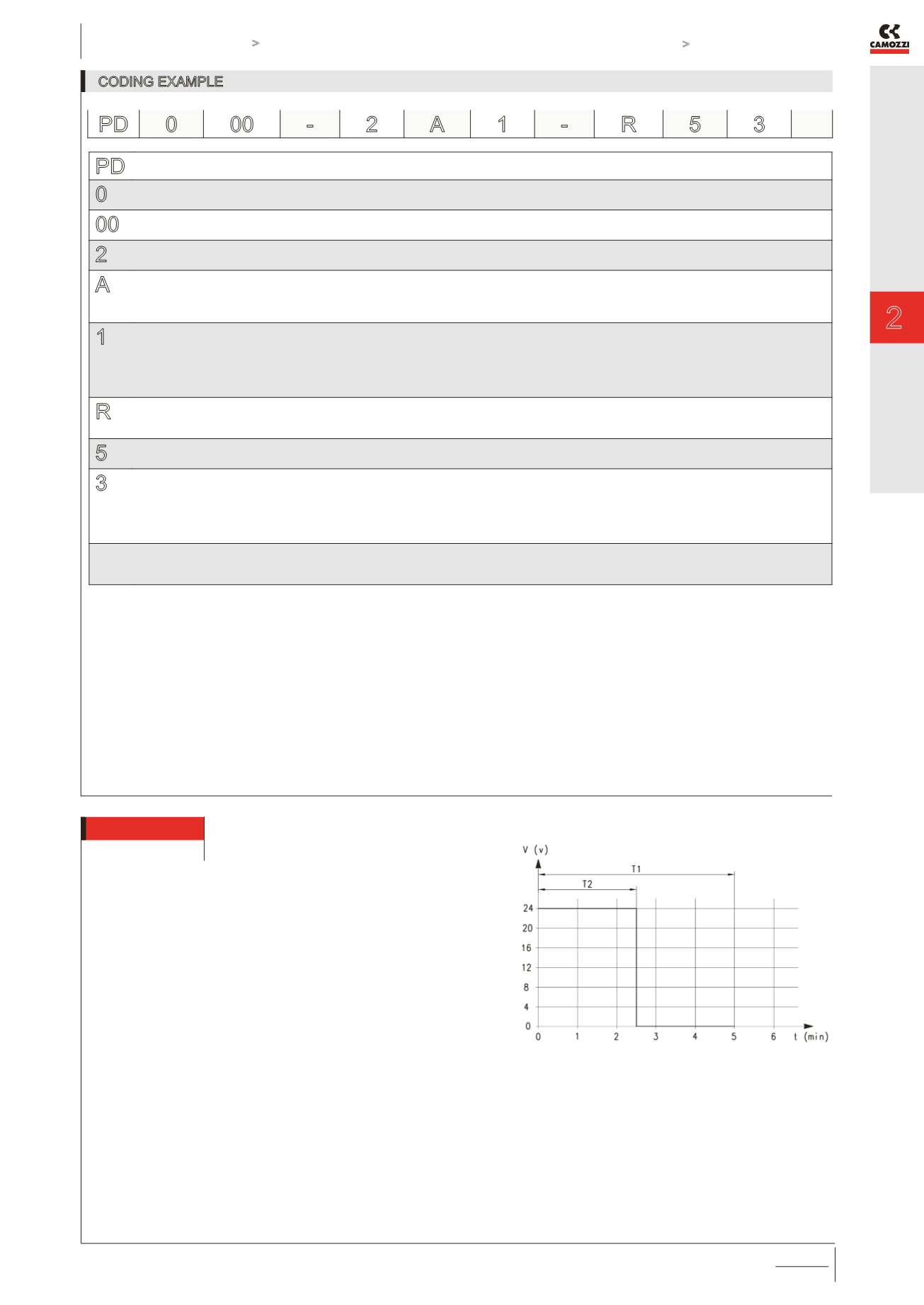

CODING EXAMPLE
PD
SERIES
0
BODY DESIGN:
0 = single body
00
NUMBER OF POSITIONS:
00 = interface
2
NUMBER OF WAYS - FUNCTIONS:
2 = 2-way NC
A
BODY MATERIALS AND VALVE PORTS:
A = aluminium body, rear pneumatic interface
C = aluminium body, low pneumatic interface
E = brass body, M5 ports (for ø up to 1.6mm)
1
NOMINAL DIAMETER:
1 = ø 0.8
2 = ø 1.2
3 = ø 1.6
4 = ø 2
5 = ø 2.5
R
POPPET SEAL MATERIALS:
R = NBR
F = FKM (on request)
5
ELECTRICAL CONNECTION:
5 = industrial standard connection (9.4 mm)
3
SOLENOID VOLTAGE:
1 = 12V DC 1W
2 = 12V DC 2W
3 = 24V DC 1W
5 = 24V DC 2W
8 = 24V DC 4W
FIXING:
= with screws for metal (standard)
P = with screws for plastics
PD 0 00 -
2 A 1 -
R 5 3
ED definition diagram
Operating factor lower than 50%
T1 = cycle time (5 minutes max)
T2 = energizing time
t = time (minutes)
V = working voltage (volt)
ED = T2/T1 x 100
