Series PD solenoid valves
CONTROL >
C_FLUID CONTROL CATALOGUE
>
2018
63
CONTROL

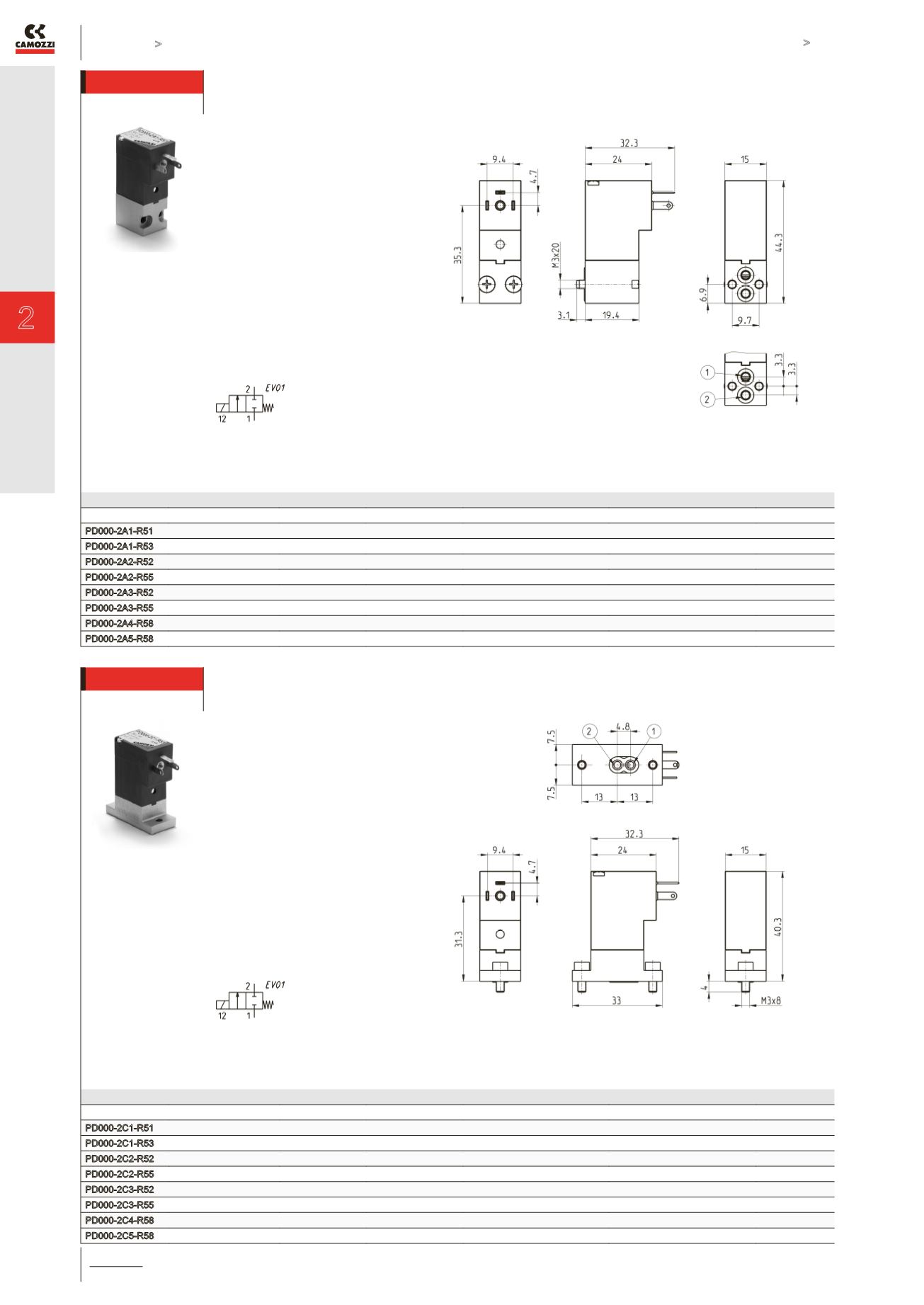

2/2-way NC solenoid valve, rear pneumatic interface
Supplied with:
2x OR seals
2x screws M3x20 UNI 8112
(fixing for metal, standard)
or
2x screws M3x23 UNI 10227
(fixing for plastics, P option)
For use with vacuum invert channel
1 and channel 2.
Mod.
Orifice Ø (mm)
kv (l/min)
Qn (Nl/min)
Pressure min-max (bar)
Power consumption (W)
ED (%)
PD000-2A1-R51
0.8
0.39
25
0 ÷ 12
1
100
PD000-2A1-R53
0.8
0.39
25
0 ÷ 12
1
100
PD000-2A2-R52
1.2
0.54
35
0 ÷ 12
2
100
PD000-2A2-R55
1.2
0.54
35
0 ÷ 12
2
100
PD000-2A3-R52
1.6
0.70
45
0 ÷ 7
2
100
PD000-2A3-R55
1.6
0.70
45
0 ÷ 7
2
100
PD000-2A4-R58
2
1.31
85
0 ÷ 6
4
50
PD000-2A5-R58
2.5
1.93
-
0 ÷ 4
4
50
2/2-way NC solenoid valve, low pneumatic interface
Supplied with:
1x seal
2x screws M3x8 UNI 5931
For use with vacuum invert channel
1 and channel 2.
Mod.
Orifice Ø (mm)
kv (l/min)
Qn (Nl/min)
Pressure min-max (bar)
Power consumption (W)
ED (%)
PD000-2C1-R51
0.8
0.39
25
0 ÷ 12
1
100
PD000-2C1-R53
0.8
0.39
25
0 ÷ 12
1
100
PD000-2C2-R52
1.2
0.54
35
0 ÷ 12
2
100
PD000-2C2-R55
1.2
0.54
35
0 ÷ 12
2
100
PD000-2C3-R52
1.6
0.70
45
0 ÷ 7
2
100
PD000-2C3-R55
1.6
0.70
45
0 ÷ 7
2
100
PD000-2C4-R58
2
1.31
85
0 ÷ 6
4
50
PD000-2C5-R58
2.5
1.93
-
0 ÷ 4
4
50
