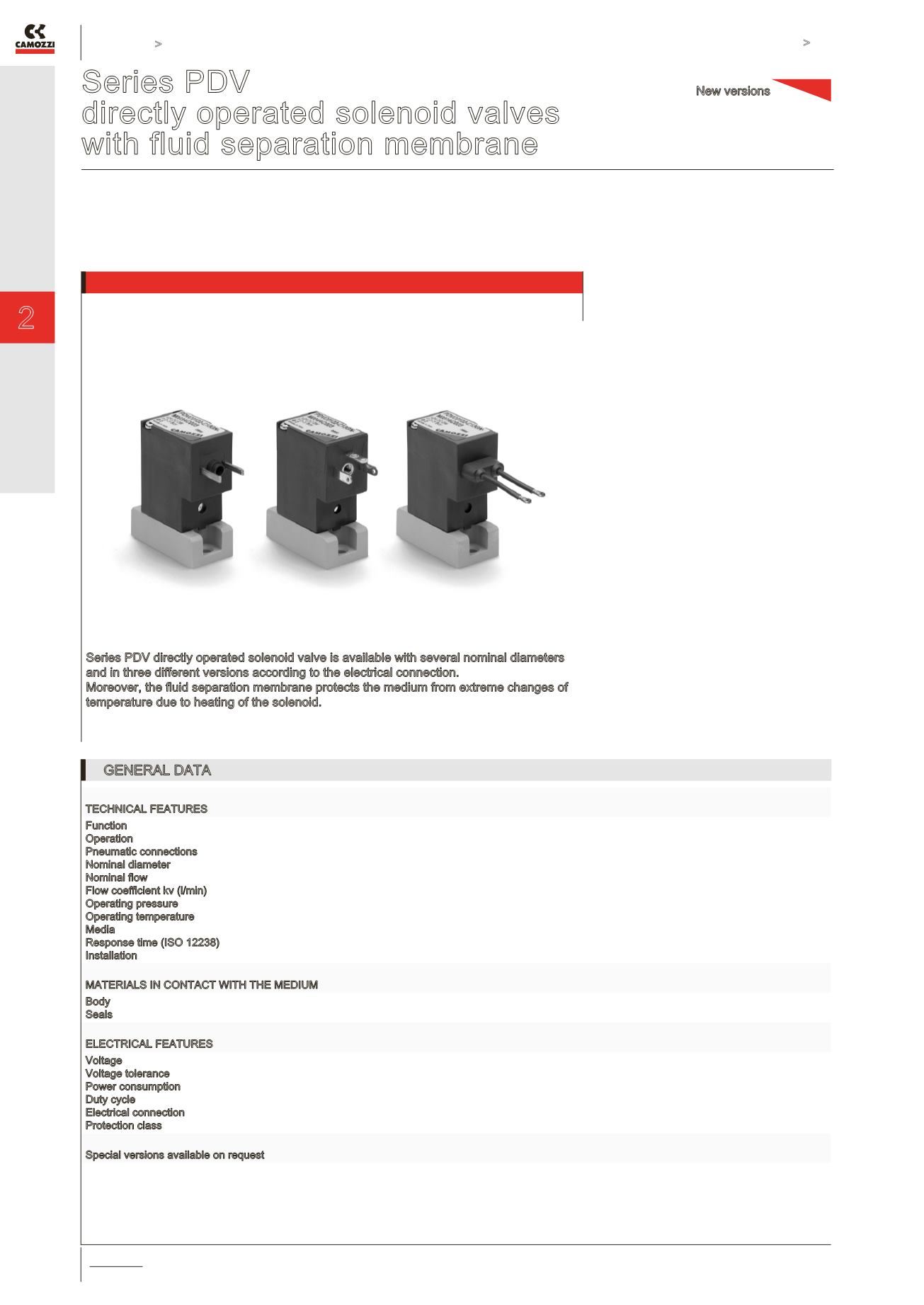

Series PDV solenoid valves CONTROL > C_FLUID CONTROL CATALOGUE > 2018
67
CONTROL
Series PDV
directly operated solenoid valves
with fluid separation membrane
2/2-way - Normally Closed (NC)
Series PDV directly operated solenoid valve is available with several nominal diameters
and in three different versions according to the electrical connection.
Moreover, the fluid separation membrane protects the medium from extreme changes of
temperature due to heating of the solenoid.
To choose the most suitable model for a
specific application, check the chemical
compatibility of the medium to control with
the available materials of body and seals.
» » Suitable to be used with
neutral or aggressive fluids
»
» Suitable for specific
applications on medical
and analytical equipment
or instruments
» » Compact design
GENERAL DATA
TECHNICAL FEATURES
Function
Operation
Pneumatic connections
Nominal diameter
Nominal flow
Flow coefficient kv (l/min)
Operating pressure
Operating temperature
Media
Response time (ISO 12238)
Installation
2/2 NC
directly operated with fluid separation membrane
on subbase by means of M3 screws
0.8 … 2 mm
see kv
0.25 ... 0.8
0 ... 7 bar
10°C ÷ 50°C
gas and liquids: air, water, reagents, solvents, etc...
≤ 15 ms
in any position
MATERIALS IN CONTACT WITH THE MEDIUM
Body
Seals
PEEK
FKM - EPDM
ELECTRICAL FEATURES
Voltage
Voltage tolerance
Power consumption
Duty cycle
Electrical connection
Protection class
24 V DC - 12 V DC - other voltages on request
±10%
2 W
ED 100%
industrial standard (9.4 mm), DIN EN 175 301-803-C (8 mm), cable L = 300 mm
IP65 with connector
Special versions available on request
New versions
