Series PDV solenoid valves C_FLUID CONTROL CATALOGUE
2
68
> 2018 CONTROL >
CONTROL

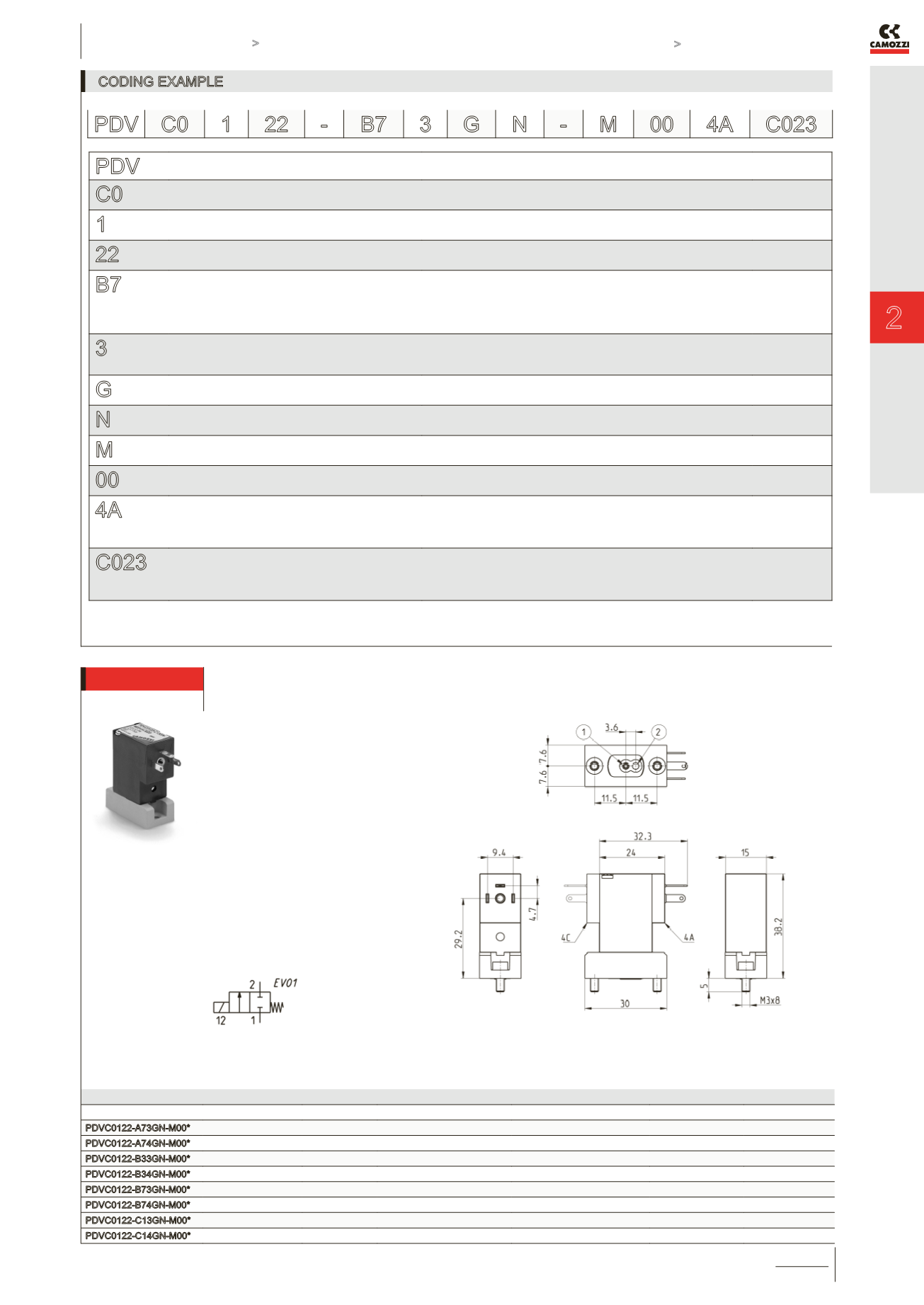

CODING EXAMPLE
PDV SERIES
C0 BODY DESIGN:
C0 = body with interface for subbase
1 NUMBER OF WAYS - FUNCTIONS:
1 = 2/2-way NC
22 PNEUMATIC CONNECTIONS:
22 = PDV-type interface, 2-way
B7 NOMINAL DIAMETER:
A7 = ø 0.8 mm
B3 = ø 1.2 mm
B7 = ø 1.6 mm
C1 = ø 2.0 mm
3 SEAL MATERIAL:
3 = FKM
4 = EPDM
G BODY MATERIAL:
G = PEEK
N MANUAL OVERRIDE:
N = not foreseen
M FIXING ACCESSORIES:
M = screws for metal
00 OPTIONS:
00 = none
4A ELECTRICAL CONNECTION:
3A = DIN EN 175 301-803-C (8 mm)
4A = industrial standard (9.4 mm)
7A = cables (L = 300 mm)
3C = DIN EN 175 301-803-C (8 mm) with coil rotated 180°
4C = industrial standard (9.4 mm) with coil rotated 180°
7C = cables (L = 300 mm) with coil rotated 180°
C023 VOLTAGE - POWER CONSUMPTION:
C017 = 6V DC 2W
C020 = 12V DC 2W
C023 = 24V DC 2W
PDV C0 1 22 - B7 3 G N - M 00 4A C023
2/2 NC solenoid valve, industrial standard (9.4 mm)
Supplied with:
1x seal
2x M3x8 UNI 5931 screws
NOTE IN THE TABLE BELOW:
* to complete the code, add
ELECTRICAL CONNECTION
(4A or 4C options)
and VOLTAGE
(see CODING EXAMPLE)
Mod. Orifice Ø (mm) kv (l/min) Min/max pressure (bar) Max back pressure (bar) Body material Seal material
PDVC0122-A73GN-M00* 0.8 0.25 0 ÷ 7.0 1.2 PEEK FKM
PDVC0122-A74GN-M00* 0.8 0.25 0 ÷ 7.0 1.2 PEEK EPDM
PDVC0122-B33GN-M00* 1.2 0.55 0 ÷ 4.5 1.2 PEEK FKM
PDVC0122-B34GN-M00* 1.2 0.55 0 ÷ 4.5 1.2 PEEK EPDM
PDVC0122-B73GN-M00* 1.6 0.65 0 ÷ 4.0 1.2 PEEK FKM
PDVC0122-B74GN-M00* 1.6 0.65 0 ÷ 4.0 1.2 PEEK EPDM
PDVC0122-C13GN-M00* 2.0 0.80 0 ÷ 3.0 1.2 PEEK FKM
PDVC0122-C14GN-M00* 2.0 0.80 0 ÷ 3.0 1.2 PEEK EPDM
NOTE IN THE DRAWING:
1 = INLET PORT
2 = OUTLET PORT
